CARBURETOR

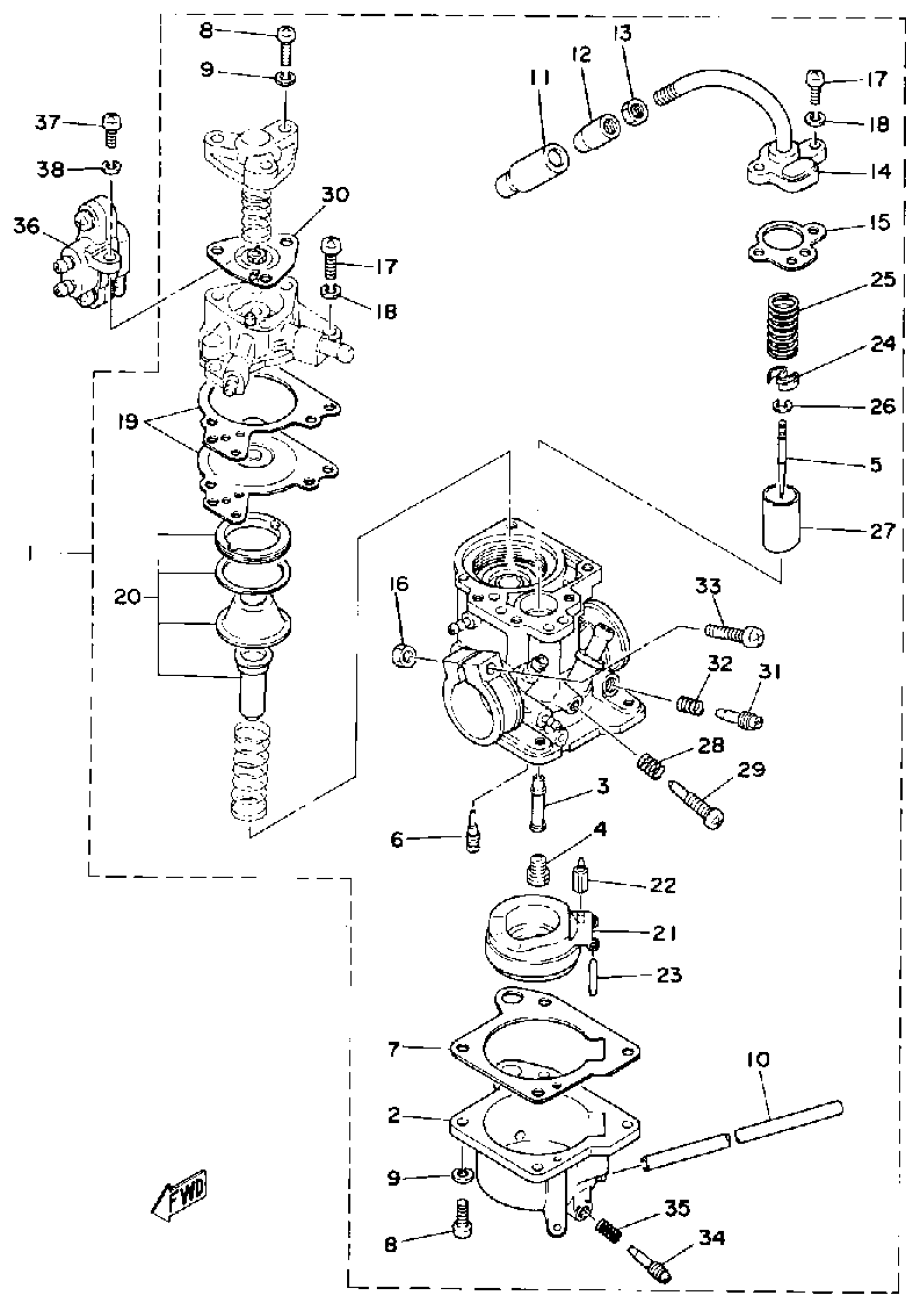

Yamaha LC50G (LC50) 1980 CARBURETOR Diagram
#
1
CARBURETOR ASSEMBLY 1
4K7-14101-00-00
Unavailable
2
BODY, FLOAT CHMBR 1
(3L6-14181-07-00)
Unavailable
3
NOZZLE, MAIN
(3L6-14141-10-00)
Unavailable
4
JET, MAIN (# 80)
620-14231-16-00
Unavailable
6
. JET, PILOT #20
3L6-14142-20-00
Unavailable
7
. GASKET, FLOAT CHMBR
3L6-14184-00-00
Unavailable
10
PIPE, OVERFLOW
(1V3-14196-00-00)
Unavailable
14
TOP, MIXING CHAMBER
(3L6-14158-00-00)
Unavailable
15
GASKET
(3L6-14198-00-00)
Unavailable
16
NUT, HOLDING
(296-14164-00-00)
Unavailable
17
SCREW, PAN HEAD
98511-04012-00
Unavailable
19
. DIAPHRAGM
3L6-24471-01-00
Unavailable
20
PLUNGER KIT
(3L6-W0018-00-00)
Unavailable
21
FLOAT
3L6-14185-01-00
Unavailable
22
NEEDLE VALVE ASSY
3L5-14190-01-00
Unavailable
23
PIN, FLOAT
603-14186-00-00
Unavailable
24
. SEAT, SPRING
3L6-14136-01-00
Unavailable
25
. SPRING, THRTL VALVE
127-14131-00-00
Unavailable
26
CLIP
127-14137-00-00
Unavailable
27
VALVE, THROTTLE 1
(3L5-14112-35-00)
Unavailable
28
. SPRING, THRTL STOP
3L6-14133-00-00
Unavailable
29
THROTTLE SCREW SET
36R-14103-00-00
Unavailable
30
. DIAPHRAGM ASSEMBLY
3L6-14940-00-00
Unavailable
31
AIR SCREW SET
36R-14104-00-00
Unavailable
32
SPRING, AIR ADJUSTING
174-14134-00-00
Unavailable
33
SCREW, PANHEAD (A93)
98580-05525-00
Unavailable
34
AIR SCREW SET
36R-14104-00-00
Unavailable
35
SPRING, AIR ADJUSTING
174-14134-00-00
Unavailable
36
VALVE, CHECK SEAT
3L6-14272-01-00
Unavailable
37
SCREW, PAN HEAD
98507-04018-00
Unavailable
