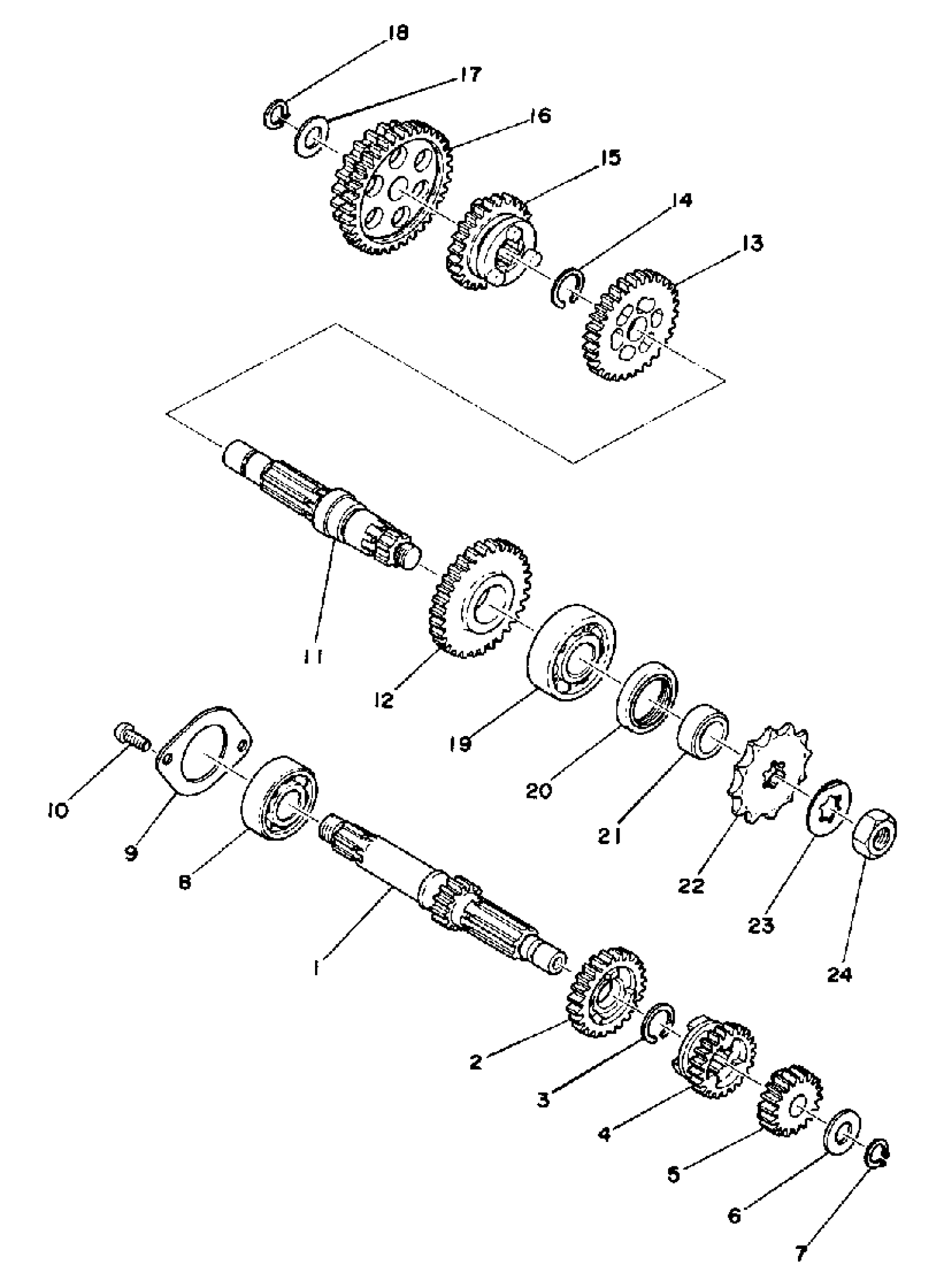

Yamaha LB80IIHC (LB80II) 1976 TRANSMISSION Diagram

#

Description
Price

1

AXLE, MAIN

(441-17411-00-00)

Unavailable

1

DRIVE AXLE ASSEMBLY

(441-17420-00-00)

Unavailable

2

. GEAR, 4TH PINION

353-17141-12-00

Unavailable

3

CIRCLIP (4V0)

93440-16089-00

$7.49

4

. GEAR, 3RD PINION

353-17131-10-00

Unavailable

5

. GEAR, 2ND PINION

353-17121-11-00

Unavailable

6

SHIM

(615-45533-01-04)

Unavailable

7

CIRCLIP(10Y)

99009-12400-00

$3.59

8

BRG,R-B 6203RS 40MM 63.3G KY

93306-20310-00

$37.99

9

PLATE, BEARING COVER

296-17471-00-00

$6.99

10

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

12

GEAR, 2ND WHEEL

(441-17221-00-00)

Unavailable

13

GEAR, 3RD WHEEL

(441-17231-00-00)

Unavailable

14

CIRCLIP (4V0)

93440-16089-00

$7.49

15

GEAR, 4TH WHEEL

353-17241-00-00

Unavailable

16

GEAR, 1ST WHEEL

(441-17211-00-00)

Unavailable

17

WASHER, PLATE

(90201-13415-00)

Unavailable

18

CIRCLIP(13M)

99009-13400-00

Unavailable

19

BRG,R-B 6303 47MM 115G NK

93306-30302-00

Unavailable

20

OIL SEAL (26X38X5-181)

93102-26042-00

Unavailable

21

COLLAR

(90387-17228-00)

Unavailable

22

SPROCKET, DRIVE

93811-13019-00

Unavailable

22

SPROCKET,DRIVE 14T(2571746141)

93811-14033-00

Unavailable

22

SPROCKET, DRIVE

93811-15061-00

Unavailable

23

WASHER LOCK 283174640000

90215-13026-00

Unavailable

24

NUT LOCK (RD50)

90179-12181-00

Unavailable
