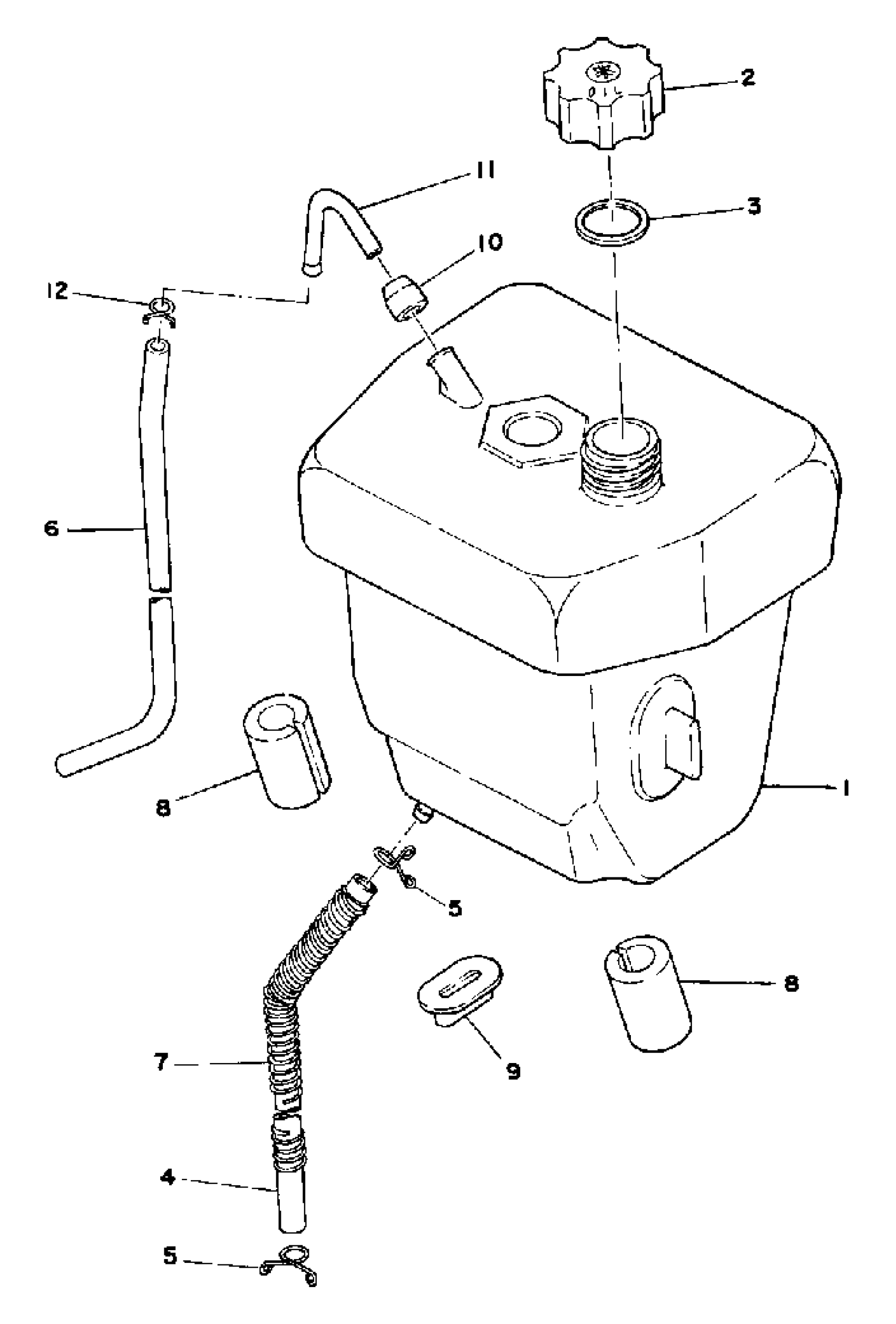

Yamaha LB80IIHC (LB80II) 1976 OIL TANK Diagram

#

Description

Price

1

. TANK, OIL

4F4-21751-01-00

Unavailable

1

. OIL TANK CAP ASSY

52W-21770-00-00

Unavailable

1

SPRING

(561-20000-10-00)

Unavailable

1

HOSE (L420)

90445-092K1-00

$12.49

1

OIL TANK ASSEMBLY

99999-01099-00

Unavailable

2

BODY, CAP

296-21771-62-00

Unavailable

3

GASKET, CAP

296-21772-00-00

Unavailable

4

HOSE (L420)

90445-092K1-00

$12.49

5

CLIP 101235600

90467-08003-00

$10.49

6

TUBE,FLEXIBLE VINYL(85R)

91A30-05080-00

$18.99

7

SPRING, COMPRESSION

(90504-05014-00)

Unavailable

8

DAMPER, LOCATING 1

439-24181-00-00

Unavailable

9

DAMPER, LOCATING 1

439-21778-01-00

Unavailable

10

GROMMET, GAUGE

(439-21759-01-00)

Unavailable

11

TUBE, CONNECTING

(561-24119-00-00)

Unavailable

12

CLAMP, DAMPER

(561-21755-00-00)

Unavailable
