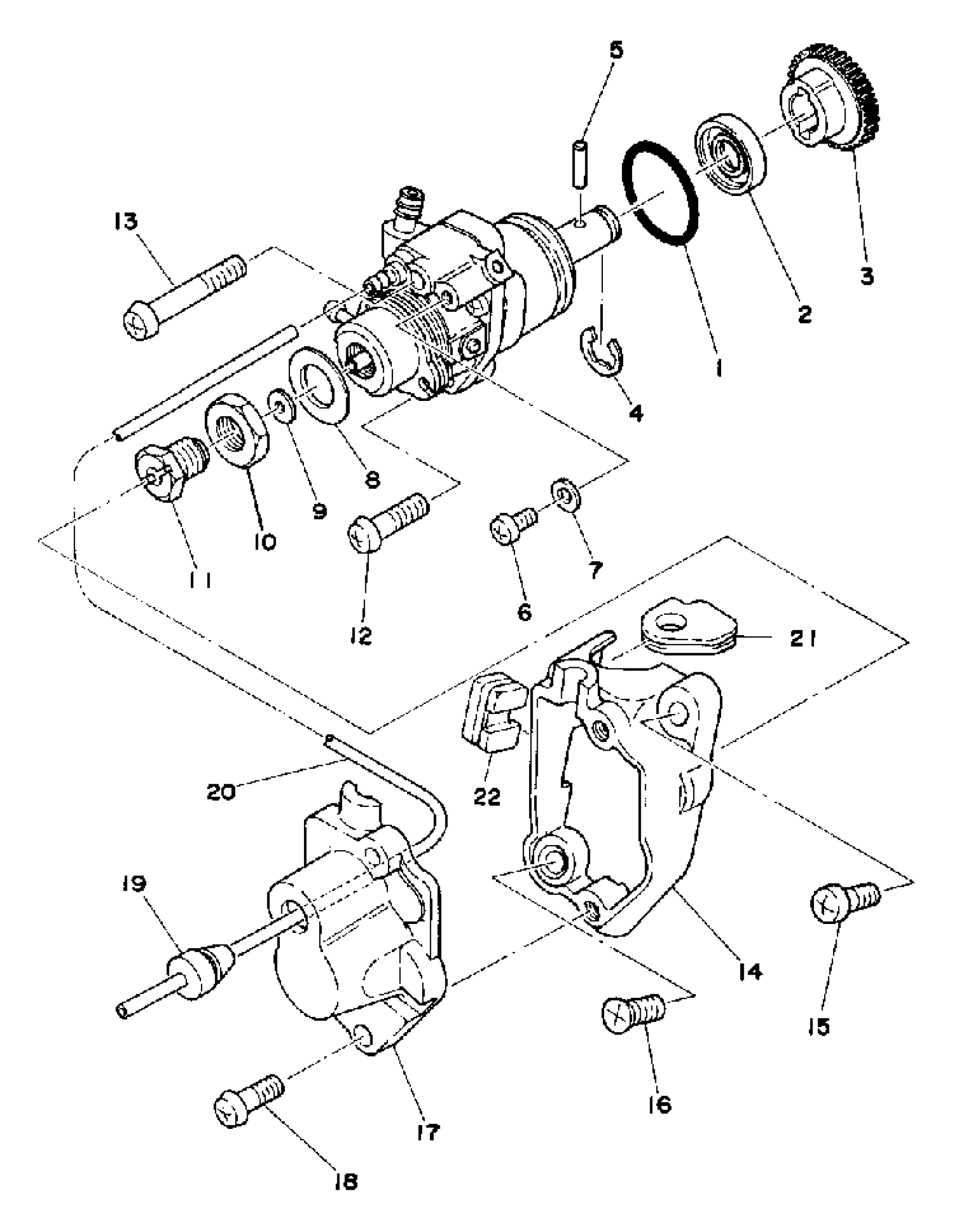

Yamaha LB80IIHC (LB80II) 1976 OIL PUMP Diagram

#

Description
Price

1

OIL PUMP ASSEMBLY

(442-13101-00-00)

Unavailable

1

O-RING

93210-26240-00

$8.49

2

OIL SEAL(1RY)

93104-06108-00

$10.49

3

GEAR, WORM WHEEL

296-13124-00-00

Unavailable

4

CIRCLIP

99080-07600-00

Unavailable

5

PIN, DOWEL

93603-14026-00

$8.49

6

SCREW, BIND(6L2)

98980-04006-00

Unavailable

7

GASKET 137131870000

90430-04004-00

$9.49

8

SHIM

296-13147-00-00

$3.54

9

PLATE, ADJUSTING

384-13138-00-00

$6.99

10

NUT

90170-10105-00

Unavailable

11

BOLT, ADJUSTING

(384-13118-00-00)

Unavailable

12

SCREW, PAN HEAD

98580-05020-00

Unavailable

13

SCREW, PAN

98507-05035-00

$8.49

14

COVER, OIL PUMP

(439-15416-01-00)

Unavailable

15

SCREW, PAN

98507-06014-00

Unavailable

16

SCREW, OVAL HEAD (92701-06012)

98603-06012-00

Unavailable

17

COVER, OIL PUMP R

(439-15426-02-00)

Unavailable

18

SCREW, PAN

98507-06014-00

Unavailable

19

GROMMET (439)

90480-11057-00

Unavailable

20

HOSE

90445-05206-00

Unavailable

21

HOLDER, OIL PIPE

384-13174-00-00

Unavailable

22

GROMMET

90480-16179-00

Unavailable
