HANDLEBAR - CABLE

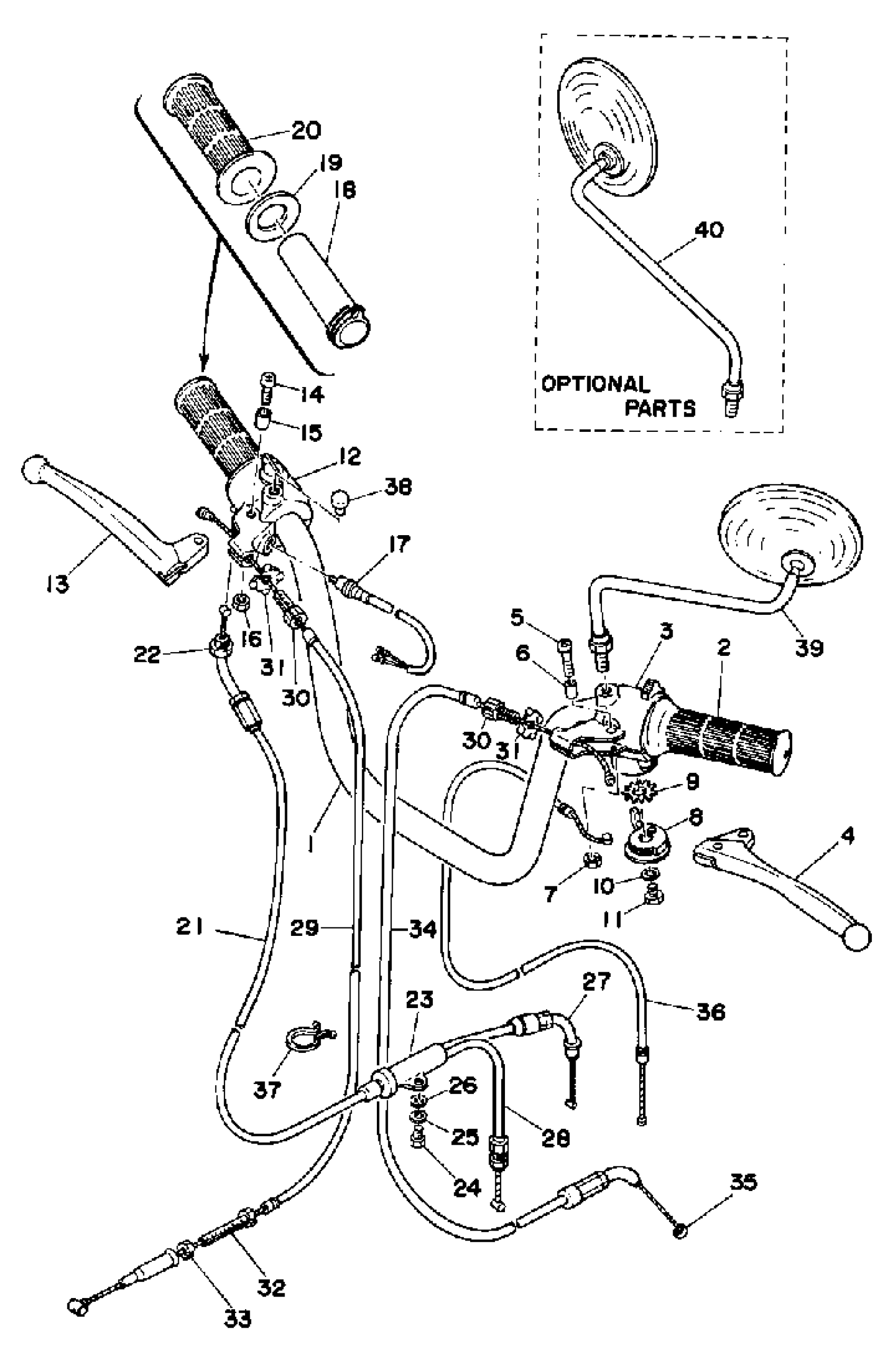

1976 Yamaha LB80II (LB80IIHC) Handlebar - Cable Diagram
Find the part on the Handlebar - Cable diagram for your 1976 Yamaha LB80II (LB80IIHC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
HANDLEBAR
(542-26111-01-00)
3
LEVER HOLDER ASSEMBLY 1
(542-82710-00-00)
6
COLLAR, LEVER 1
(395-83913-00-00)
7
NUT (CROWN)
95303-05800-00
12
LEVER HOLDER ASSEMBLY R
542-W8292-01-00
15
COLLAR, LEVER 1
(395-83913-00-00)
16
NUT (CROWN)
95303-05800-00
19
RING, LEAF
150-26249-00-00
23
CONNECTOR, CABLE
137-26261-01-00
28
CABLE, THROTTLE 2
439-26312-00-00
29
CABLE, BRAKE
439-26341-00-00
34
CABLE, CLUTCH
441-26335-00-00
35
END, WIRE
164-26363-00-00
39
3MIRROR ASSEMBLY LH
266-26290-10-00
40
MIRROR ASSEMBLY RH
395-26290-00-00
