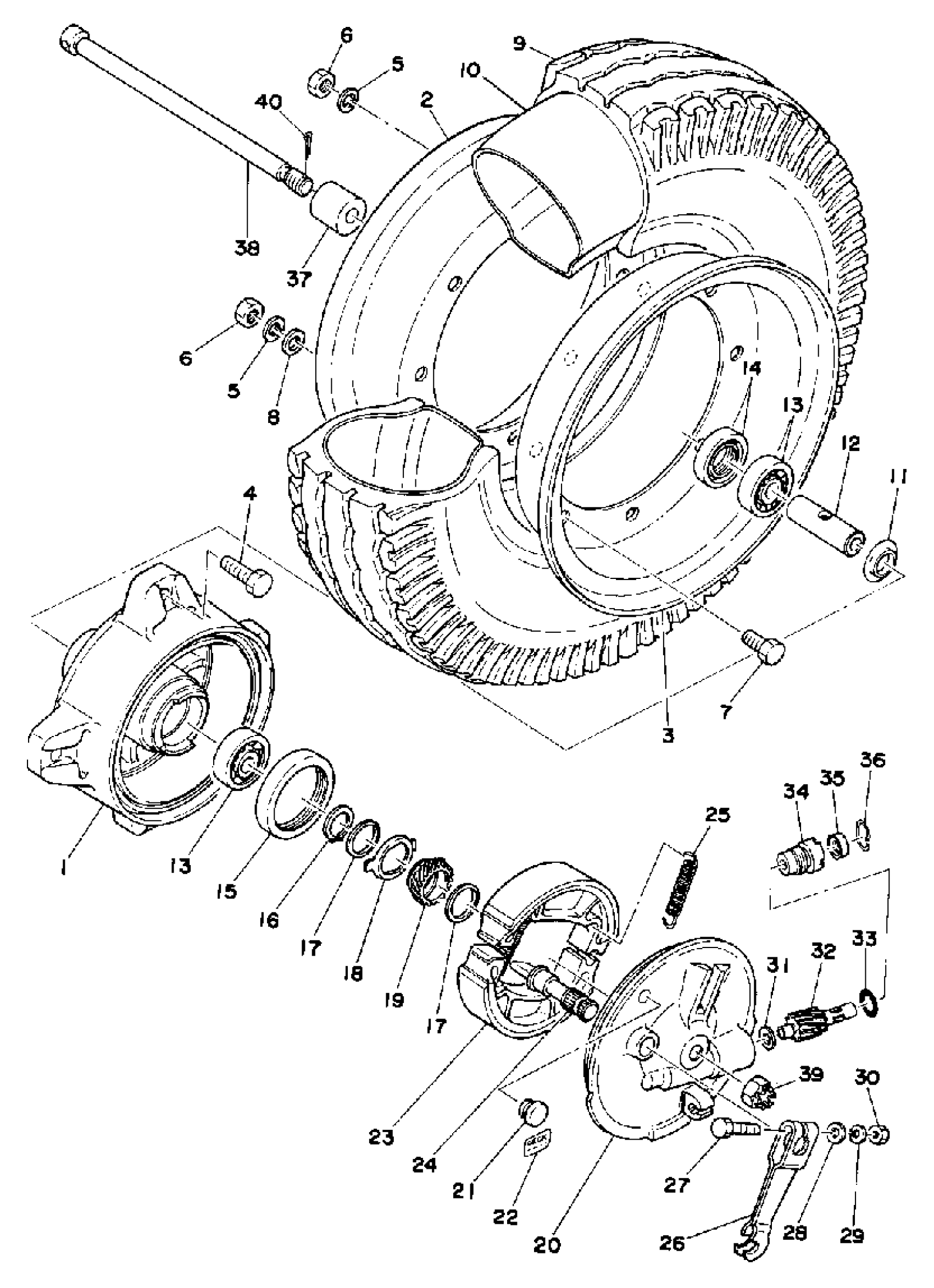

Yamaha LB80IIHC (LB80II) 1976 FRONT WHEEL Diagram

#

Description
Price

1

HUB, FRONT

(439-25111-01-35)

Unavailable

2

PANEL, WHEEL 1

(395-25337-00-35)

Unavailable

3

PANEL, WHEEL 2

(395-25347-00-35)

Unavailable

4

BOLT, HEXAGON

97017-08025-00

$10.49

5

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

6

NUT, CROWN

95303-08800-00

$9.49

7

BOLT, HEXAGON

97013-08016-00

$1.01

8

WASHER, BELLEVILLE

92907-08800-00

Unavailable

9

TIRE (5F5)

94140-08747-00

Unavailable

10

UNAVAILABLE IN PRICE BOOK

94240-08913-60

Unavailable

11

UNAVAILABLE IN PRICE BOOK (2E9-25115-00)

2E9-25115-00-00

Unavailable

12

SPACER

90560-10104-00

Unavailable

13

BRG,R-B 6300 35MM 58G NT

93306-30003-00

$41.99

14

OIL SEAL (20X35X7-136)

93102-20009-00

$10.49

15

SEAL,OIL

93105-47007-00

$15.99

16

CIRCLIP(1AR)

99009-20400-00

Unavailable

17

WASHER, PLATE 1832514700

90201-20269-00

Unavailable

18

CLUTCH, METER

183-25149-00-00

Unavailable

19

GEAR, DRIVE

(439-25135-00-00)

Unavailable

20

BRAKE SHOE PLT ASSEMBLY

(339-25120-10-00)

Unavailable

21

GROMMET (397)

90480-10068-00

Unavailable

22

LABEL, INDICATOR

(437-25134-00-00)

Unavailable

23

BRAKE SHOE KIT

2JL-W253E-20-00

Unavailable

24

CAM SHAFT

122-25351-02-00

Unavailable

25

SPRING, TENSION (566).

90506-16150-00

Unavailable

26

LEVER, CAMSHAFT 1

109-25155-00-00

Unavailable

27

BOLT, HEXAGON (538)

90101-06278-00

Unavailable

28

WASHER, PLAIN (646)

92990-06600-00

Unavailable

29

WASHER, SPRING

92995-06100-00

Unavailable

30

NUT, HEXAGON

95380-06600-00

Unavailable

31

WASHER, PLATE 1832514600

90201-07076-00

Unavailable

32

GEAR, METER

(439-25138-00-00)

Unavailable

33

O-RING (26H)

93210-14579-00

Unavailable

34

BUSHING

109-25136-00-00

Unavailable

35

OIL SEAL (7X14X4-136)

93104-07003-00

Unavailable

36

RING, STOP

102-25137-00-00

Unavailable

37

COLLAR (128-25183-00)

90387-10081-00

Unavailable

38

AXLE, WHEEL KIT

99999-02216-00

Unavailable

39

NUT 3532518200

90171-10004-00

Unavailable

40

PIN, COTTER

91490-20025-00

Unavailable
