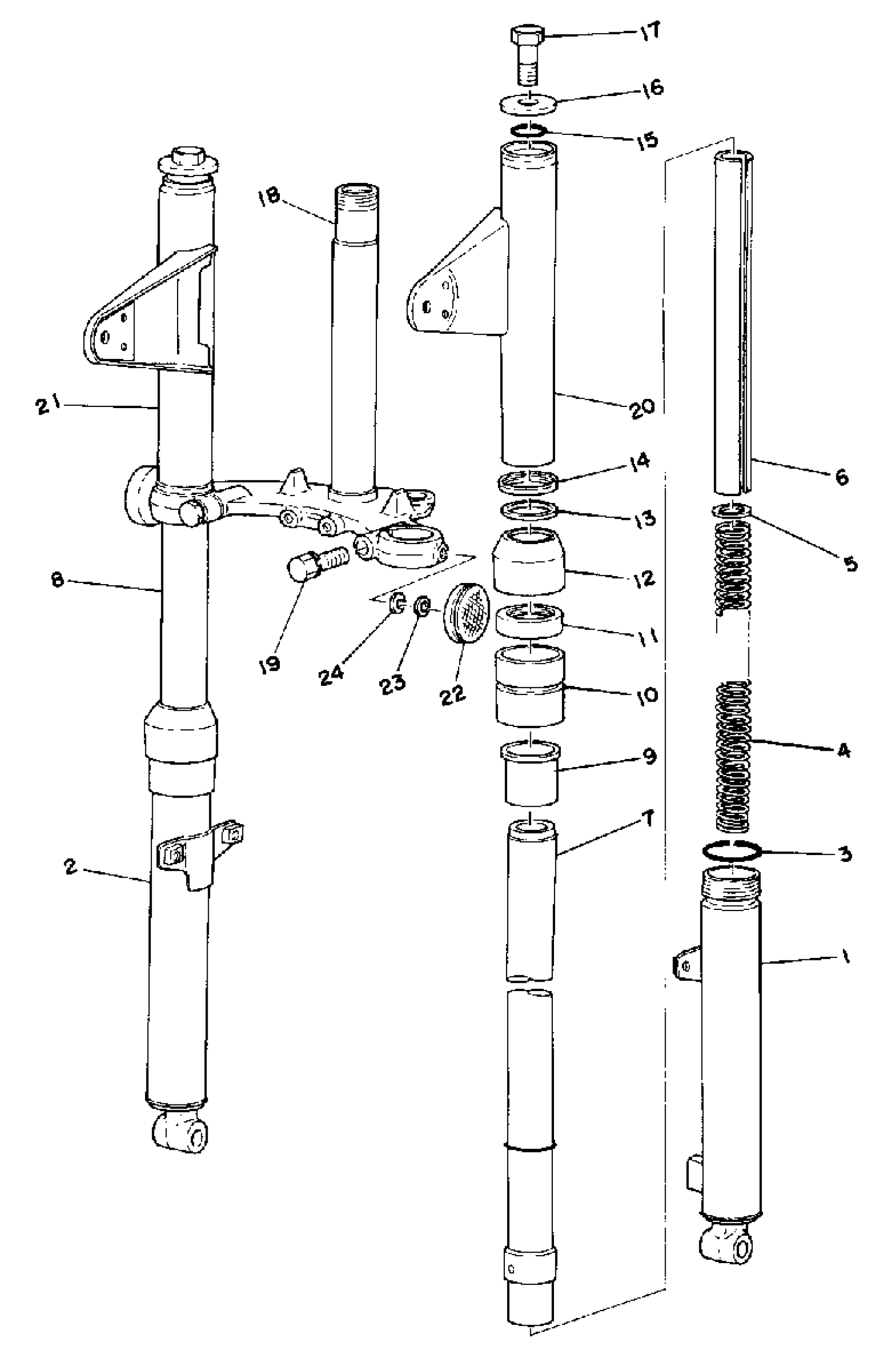

Yamaha LB80IIHC (LB80II) 1976 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSEMBLY

(439-23101-02-35)

Unavailable

1

TUBE, OUTER 1

(439-23126-00-35)

Unavailable

2

TUBE, OUTER 2

(439-23136-00-35)

Unavailable

3

O-RING

207-23147-00-00

$11.99

4

SPRING, FRONT FORK

367-23141-60-00

Unavailable

5

WASHER, SPRING UPR

(290-23149-00-00)

Unavailable

6

SPACER, OIL LOCK

(367-23166-60-00)

Unavailable

7

. TUBE, INNER 1

439-23124-00-00

Unavailable

8

TUBE,INNER 2

439-23134-00-00

Unavailable

9

. METAL, SLIDE 1

109-23125-00-00

Unavailable

10

. OUTER NUT

290-23150-01-00

Unavailable

11

OIL SEAL

109-23145-01-00

$31.99

12

SEAL, DUST

290-23144-00-00

$23.99

13

PACKING(LAMP STAY)

164-23163-00-00

$6.99

14

GUIDE, COVER UPPER

(354-23115-90-00)

Unavailable

15

GASKET

307-23114-00-00

Unavailable

16

WASHER, CAP

207-23112-00-00

Unavailable

17

. BOLT, CAP

395-23111-00-00

Unavailable

18

. UNDER BRACKET

2T5-23340-00-33

Unavailable

19

BOLT 1

122-23346-02-00

Unavailable

20

COVER, UPPER 1

439-23121-00-E1

Unavailable

21

COVER, UPPER 2

439-23131-00-E1

Unavailable

22

REFLECTOR, FRONT 1

355-85111-01-00

Unavailable

23

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

24

. WASHER, PLAIN

92990-05200-00

Unavailable
