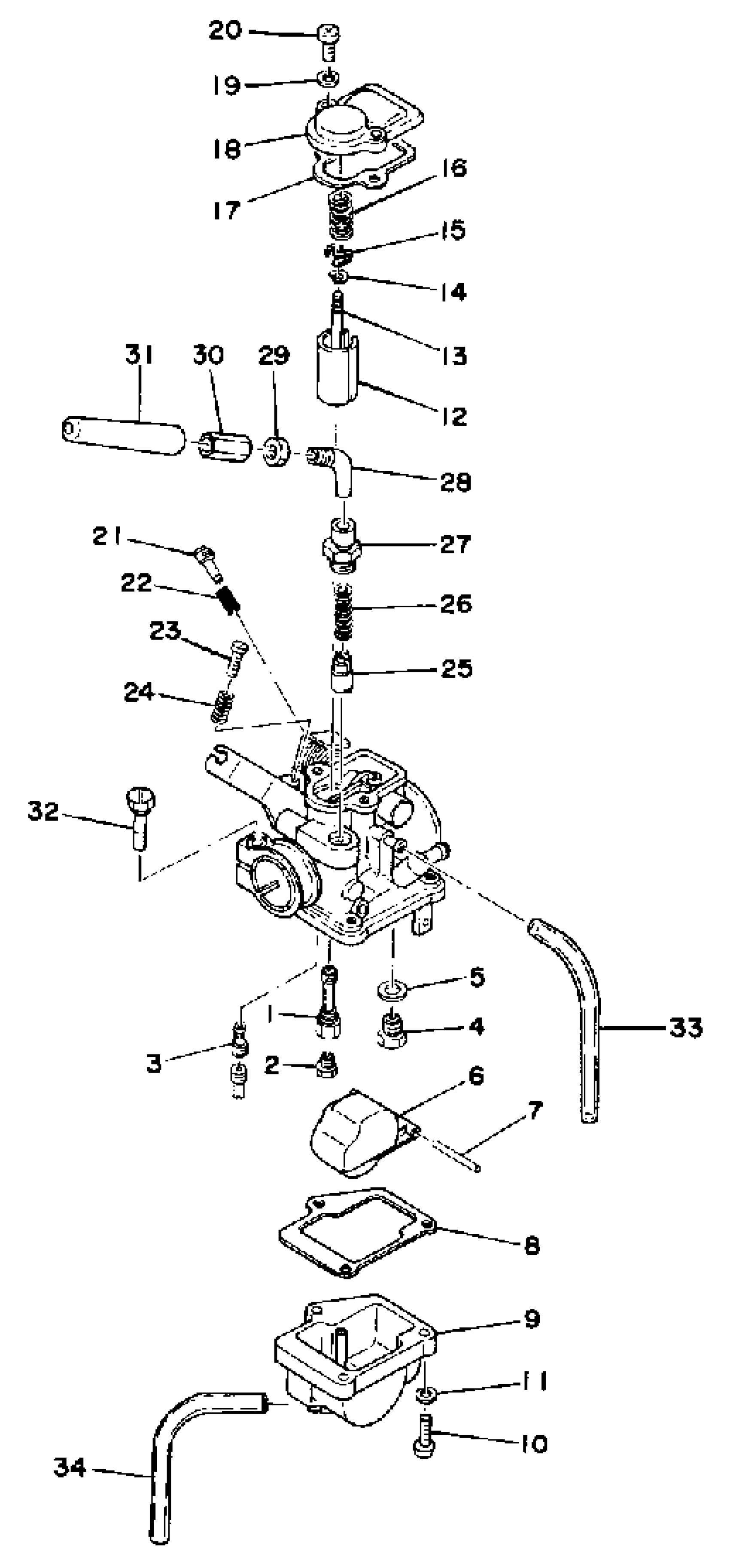

Yamaha LB80IIHC (LB80II) 1976 CARBURETOR Diagram

#

Description
Price

1

NOZZLE, MAIN(FSI)

127-14141-14-00

$30.99

1

CARBURETOR ASSEMBLY 1

(442-14101-00-00)

Unavailable

2

. JET, MAIN #65

127-14143-13-00

Unavailable

2

JET, MAIN #70

(127-14143-14-00)

Unavailable

2

. JET, MAIN #75

127-14143-15-00

Unavailable

3

JET, PILOT (# 15)

193-14142-15-A0

$9.99

4

VALVE SEAT ASSY (#1.2)

2E9-14190-12-00

$55.99

5

WASHER, VALVE SEAT

127-14195-00-00

$7.99

6

FLOAT

(439-14185-00-00)

Unavailable

7

. PIN, FLOAT

439-14186-00-00

Unavailable

8

GASKET, FLOAT CHAMBER

439-14184-00-00

$22.99

9

GASKET, FLOAT CHAMBER

439-14184-00-00

$22.99

10

SCREW, PAN HEAD(GA5)

98580-04014-00

$4.51

11

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

12

VALVE, THROTTLE 1

(439-14112-20-00)

Unavailable

13

NEEDLE

127-14116-09-00

Unavailable

14

CLIP

127-14137-00-00

Unavailable

15

. SEAT, SPRING

439-14136-01-00

Unavailable

16

SPRING, THRTL VALVE

(439-14131-00-00)

Unavailable

17

GASKET, TOP MIXING CHAMBER

439-14198-01-00

Unavailable

18

TOP, MIXING CHAMBER

(439-14158-00-00)

Unavailable

19

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

20

SCREW, PAN HEAD (E56)

98580-04010-00

Unavailable

21

. SCREW, AIR ADJUSTINGSET

127-W1412-00-00

Unavailable

22

SPRING, AIR ADJUSTING

127-14134-00-00

Unavailable

23

SCREW, CYLINDER.HEAD

(98302-03012-00)

Unavailable

24

. SPRING, THROTTLE STOP (#375)

620-14133-00-00

Unavailable

25

PLUNGER, STARTER

58E-14171-00-00

Unavailable

26

SPRING, PLUNGER

127-14135-00-00

Unavailable

27

. CAP, PLUNGER

439-14174-01-00

Unavailable

28

. GUIDE, CABLE

439-14155-00-00

Unavailable

29

NUT, WIRE ADJUSTING

127-14161-00-00

Unavailable

30

CABLE ADJUST SCREW SET

17L-14106-00-00

Unavailable

31

. CAP

439-14169-00-00

Unavailable

32

SCREW, BODY FITTING

(439-14125-00-00)

Unavailable

33

PIPE, AIRVENT

(440-14197-00-00)

Unavailable

34

PIPE, OVERFLOW

(353-14196-00-00)

Unavailable
