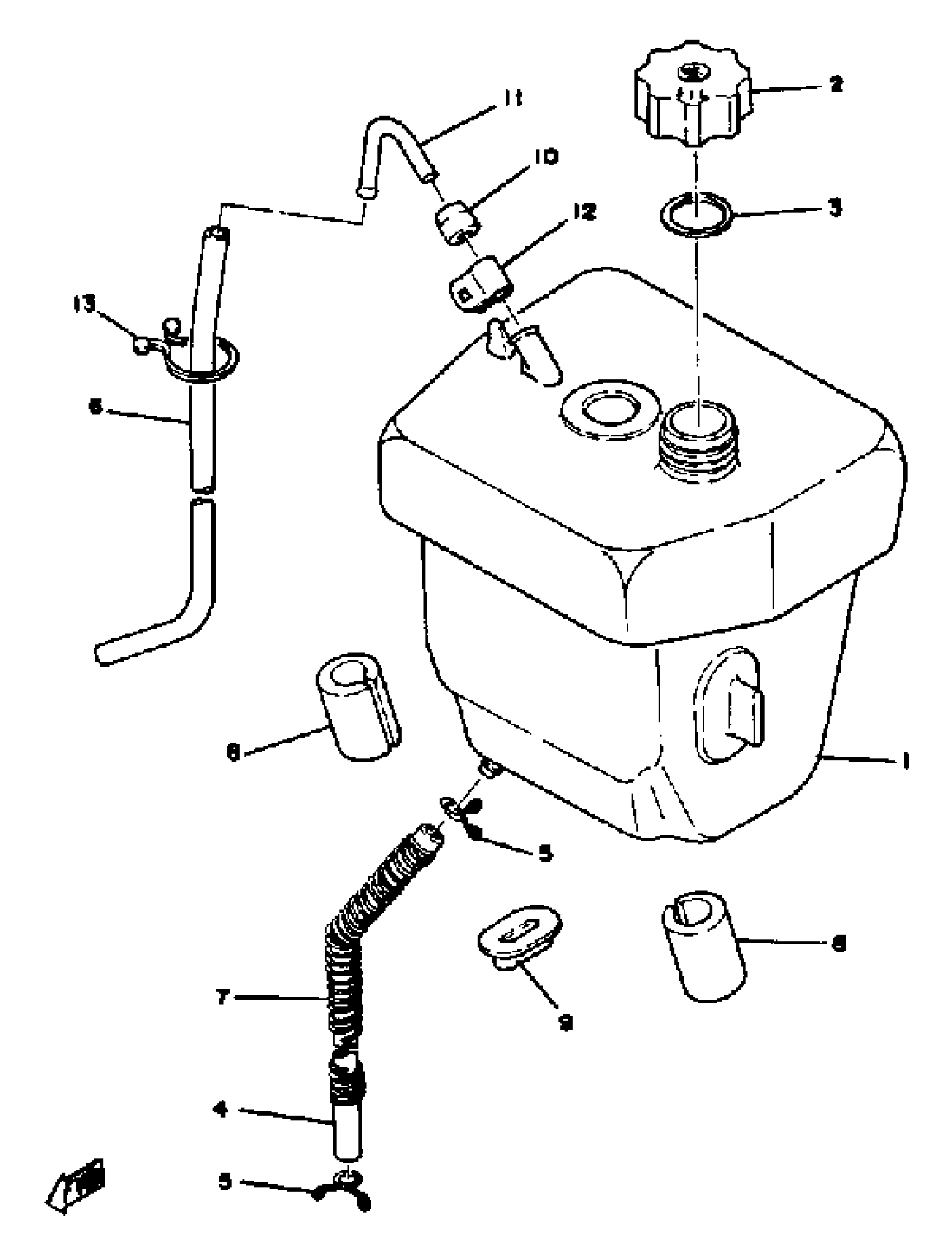

Yamaha LB802AC (LB802A) 1976 OIL TANK Diagram
#
Description
Price
1
. TANK, OIL
4F4-21751-01-00
Unavailable
1
. OIL TANK CAP ASSY
52W-21770-00-00
Unavailable
1
OIL TANK ASSEMBLY
99999-01099-00
Unavailable
1
OIL TANK ASSEMBLY
99999-01099-00
Unavailable
2
BODY, CAP
296-21771-62-00
Unavailable
3
GASKET, CAP
296-21772-00-00
Unavailable
7
SPRING
(561-20000-10-00)
Unavailable
7
SPRING, COMPRESSION
90504-06020-00
Unavailable
8
DAMPER, LOCATING 1
439-24181-00-00
Unavailable
9
DAMPER, LOCATING 1
439-21778-01-00
Unavailable
10
GROMMET, GAUGE
(439-21759-01-00)
Unavailable
11
TUBE, CONNECTING
(561-24119-00-00)
Unavailable
12
CLAMP, DAMPER
(561-21755-00-00)
Unavailable
13
CLAMP
90464-25267-00
Unavailable
