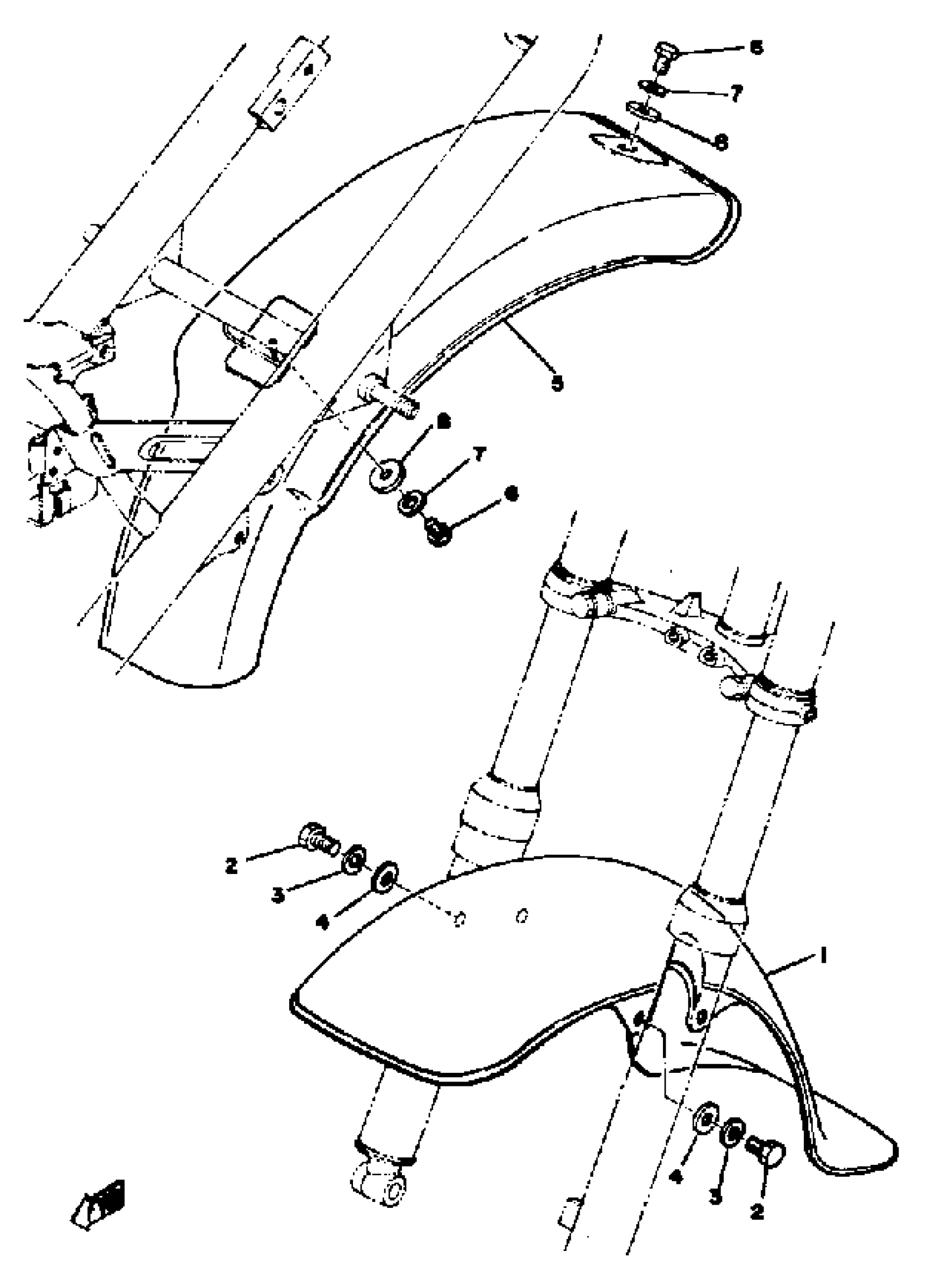

Yamaha LB802AC (LB802A) 1976 FRONT FENDER-REAR SUSPENSION Diagram

#

Description

Price

1

FENDER FRONT

439-21511-01-00

Unavailable

2

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

3

WASHER, SPRING

92995-06100-00

Unavailable

4

WASHER, PLAIN (646)

92990-06600-00

$2.80

5

FENDER, REAR

439-21611-01-00

Unavailable

6

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

7

WASHER, SPRING

92995-06100-00

Unavailable

8

WASHER, PLATE

90201-06380-00

$0.60
