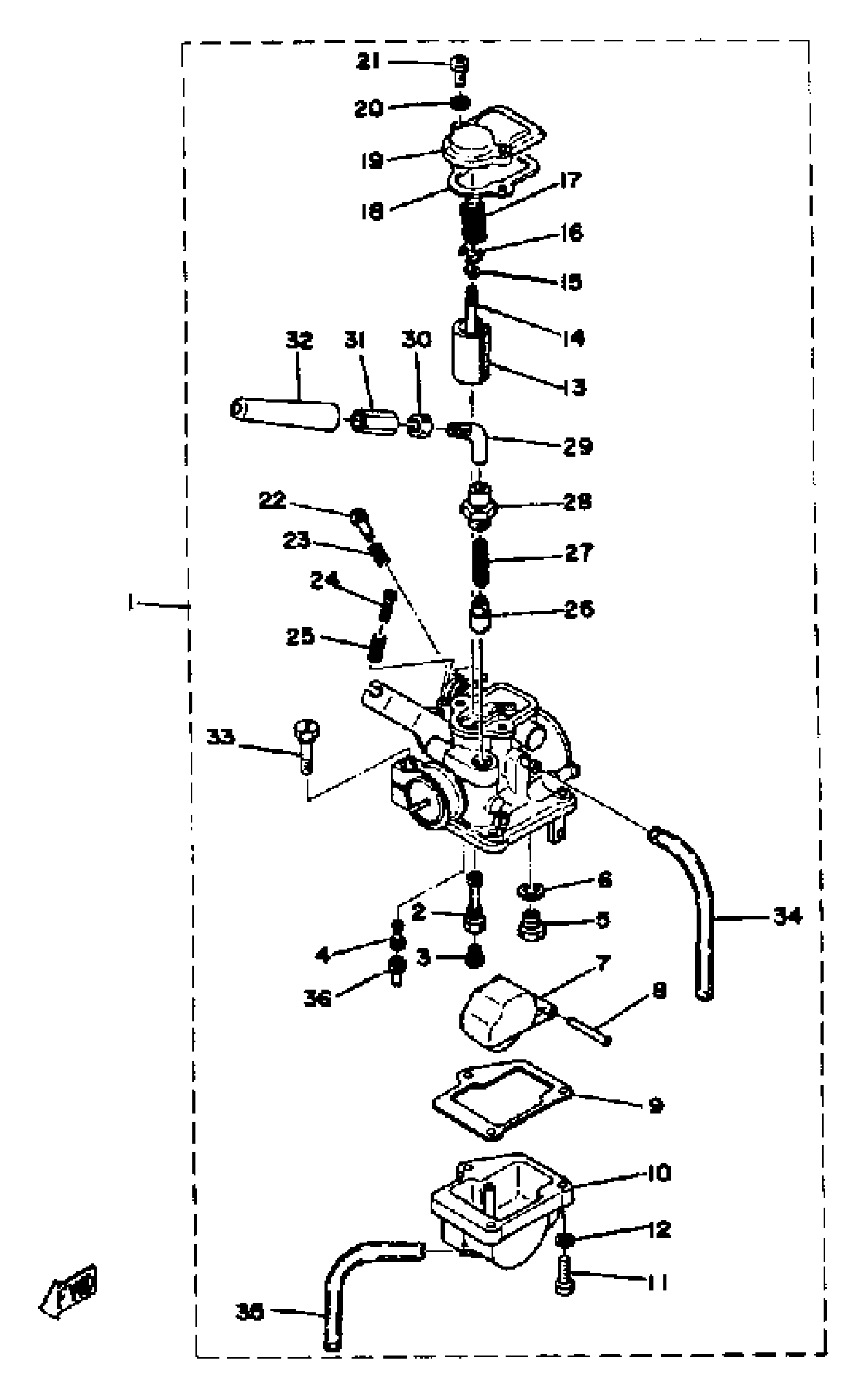

Yamaha LB802AC (LB802A) 1976 CARBURETOR LB80IIAD Diagram

#

Description
Price

1

CARBURETOR ASSEMBLY 1

(1F5-14101-00-00)

Unavailable

2

. NOZZLE, MAIN

127-14141-10-00

Unavailable

3

JET, MAIN #85

(127-14143-17-00)

Unavailable

3

JET, MAIN #90

(127-14143-18-00)

Unavailable

3

. JET, MAIN #95

127-14143-19-00

Unavailable

4

JET, PILOT (# 15)

193-14142-15-A0

$9.99

5

VALVE SEAT ASSY (#1.2)

2E9-14190-12-00

$55.99

6

WASHER, VALVE SEAT

127-14195-00-00

$7.99

7

FLOAT

(439-14185-00-00)

Unavailable

8

. PIN, FLOAT

439-14186-00-00

Unavailable

9

GASKET, FLOAT CHAMBER

439-14184-00-00

$22.99

10

BODY, FLOAT CHMBR 1

(439-14181-05-00)

Unavailable

11

SCREW, PAN HEAD(GA5)

98580-04014-00

$4.51

12

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

13

VALVE, THROTTLE 1

(1F5-14112-15-00)

Unavailable

14

NEEDLE

127-14116-09-00

Unavailable

15

CLIP

127-14137-00-00

Unavailable

16

. SEAT, SPRING

439-14136-01-00

Unavailable

17

SPRING, THRTL VALVE

(439-14131-00-00)

Unavailable

18

GASKET, TOP MIXING CHAMBER

439-14198-01-00

Unavailable

19

TOP, MIXING CHAMBER

(439-14158-00-00)

Unavailable

20

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

21

SCREW, PAN HEAD (E56)

98580-04010-00

Unavailable

22

. SCREW, AIR ADJUSTINGSET

127-W1412-00-00

Unavailable

23

SPRING, AIR ADJUSTING

127-14134-00-00

Unavailable

24

SCREW, CYLINDER.HEAD

(98302-03012-00)

Unavailable

25

. SPRING, THROTTLE STOP (#375)

620-14133-00-00

Unavailable

26

PLUNGER, STARTER

58E-14171-00-00

Unavailable

27

SPRING, PLUNGER

127-14135-00-00

Unavailable

28

. CAP, PLUNGER

439-14174-01-00

Unavailable

29

. GUIDE, CABLE

439-14155-00-00

Unavailable

30

NUT, WIRE ADJUSTING

127-14161-00-00

Unavailable

31

CABLE ADJUST SCREW SET

17L-14106-00-00

Unavailable

32

. CAP

439-14169-00-00

Unavailable

33

SCREW, BODY FITTING

(439-14125-00-00)

Unavailable

34

PIPE, AIRVENT

(440-14197-00-00)

Unavailable

35

PIPE, OVERFLOW

(353-14196-00-00)

Unavailable

36

PIPE

(1M3-14148-00-00)

Unavailable
