Find the part on the Steering diagram for your 1977 Yamaha LB80-3D (LB80_3D), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

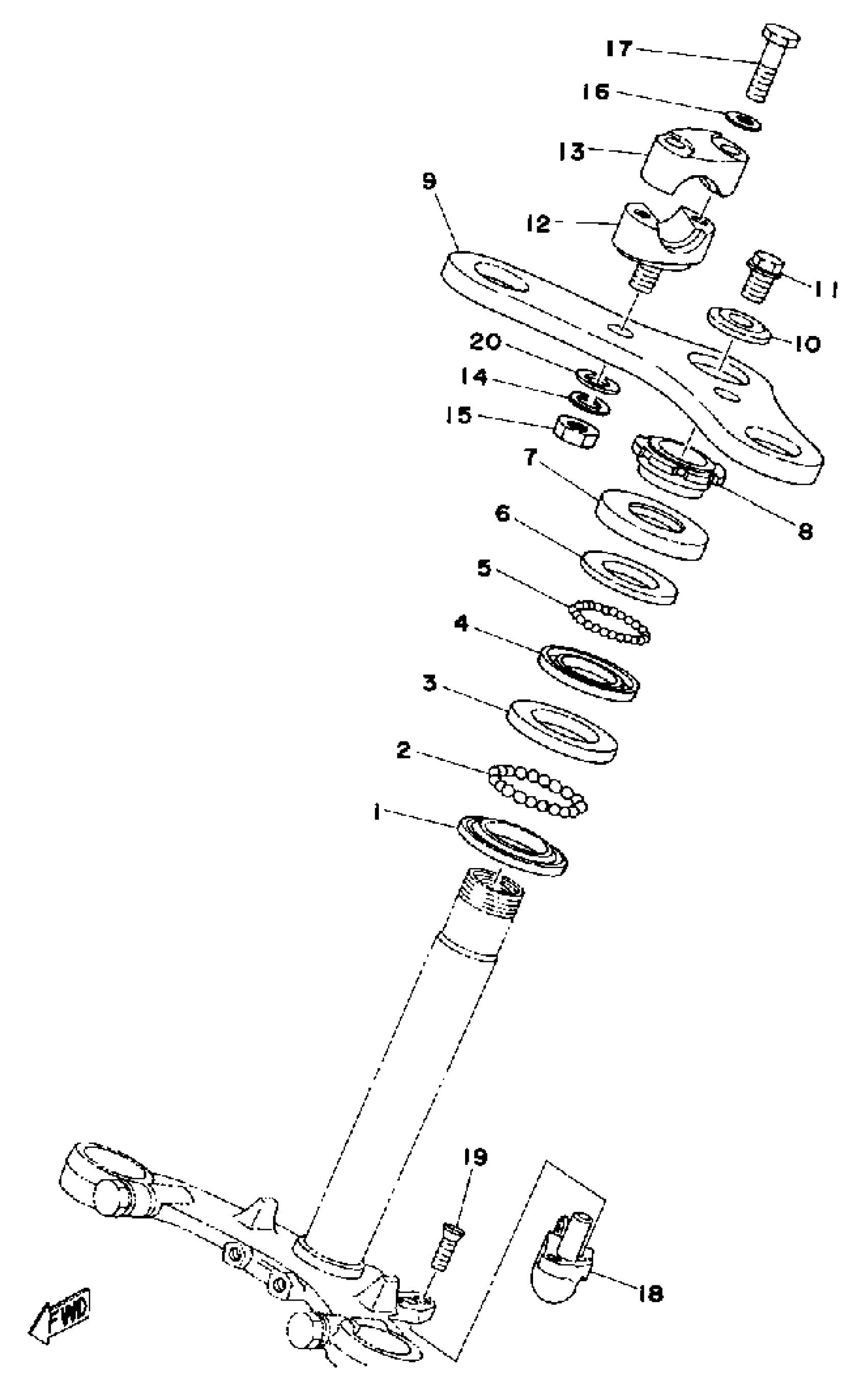

1977 Yamaha LB80-3D (LB80_3D) Steering Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

RACE, BALL 1

B6E-23411-00-00

1

$7.02

In stock

2

BALL

93501-04011-00

1
Out of stock

3

RACE, BALL 2

B6E-23412-00-00

1

$9.71

In stock

4

RACE, BALL 2

BP2-23412-00-00

1

$5.71

In stock

5

BALL

93503-16003-00

1

$2.14

In stock

6

RACE, BALL 1

BP2-23411-00-00

1

$8.40

In stock

7

COVER, BALL RACE

122-23416-00-00

1

$6.40

In stock

8

NUT (122-23453-00)

90179-25051-00

1
Out of stock

9

CROWN, HANDLE

(439-23435-01-93)

1
Out of stock

10

WASHER (1YJ)

90209-10160-00

1

$5.68

In stock

11

BOLT 1222345100

90105-10006-00

1

$9.17

In stock

12

HOLDER, HANDLE UNDER

462-23442-00-98

—
Out of stock

13

HOLDER, HANDLE UPPER

462-23441-01-00

—
Out of stock

14

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock

15

NUT(3BM)

95314-10600-00

1

$1.74

In stock

16

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

17

BOLT(3RV)

97014-06035-00

—

$1.54

In stock

18

STEERING LOCK ASSEMBLY

(1M3-23408-01-00)

1
Out of stock

19

SCREW, FLAT

98707-06014-00

—
Out of stock

20

—

$3.00

In stock
