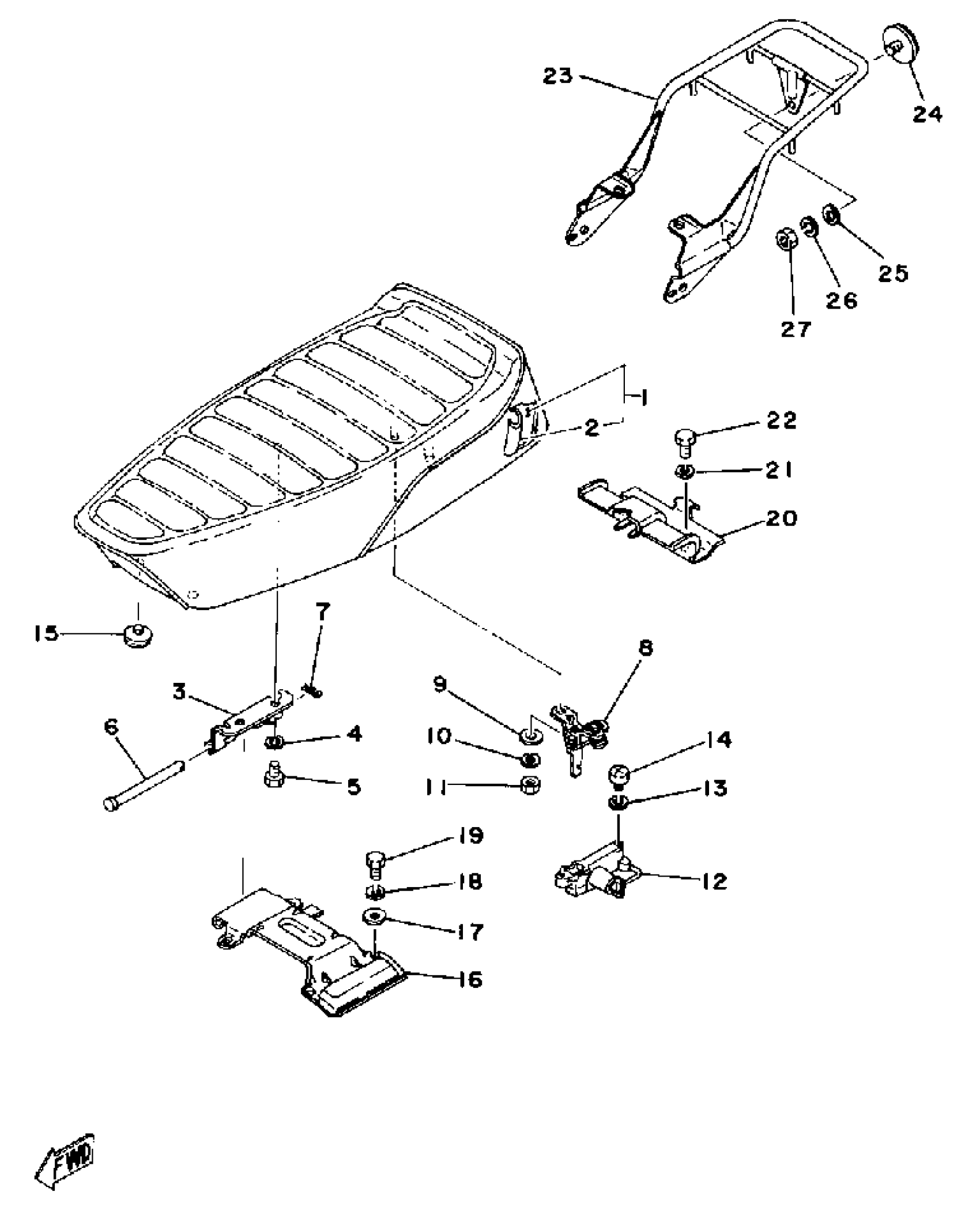

Yamaha LB80_3D (LB80-3D) 1977 SEAT - CARRIER Diagram

#

Description
Price

1

SEMI-DBL SEAT ASSEMBLY

(1M3-24770-01-00)

Unavailable

2

COVER, SM-DBL SEAT

(1M3-24771-00-00)

Unavailable

3

HINGE, SEAT

(1M3-24726-01-00)

Unavailable

4

WASHER, SPRING

92995-06100-00

Unavailable

5

BOLT(8CP)

97017-06014-00

$8.49

6

PIN, CLEVIS (3M7)

91701-05105-00

Unavailable

7

CLIP (156-83525-00)

90468-10050-00

$3.05

8

BRACKET, SEAT

(1M3-24728-00-00)

Unavailable

9

WASHER, PLAIN (646)

92990-06600-00

$2.80

10

WASHER, SPRING

92995-06100-00

Unavailable

11

NUT, HEXAGON

95380-06600-00

Unavailable

12

SEAT LOCK ASSEMBLY

(1M3-24705-00-00)

Unavailable

13

WASHER, SPRING

92995-06100-00

Unavailable

14

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

15

PAD, SEAT

1L9-24741-00-00

$9.99

16

BRACKET, SEAT 1

(1M3-21219-01-00)

Unavailable

17

WASHER, PLAIN (646)

92990-06600-00

$2.80

18

WASHER, SPRING

92995-06100-00

Unavailable

19

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

20

BRACKET, SEAT

(1M3-21349-00-00)

Unavailable

21

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

22

BOLT(JA9)

90101-08691-00

Unavailable

23

CARRIER ASSEMBLY

(1T8-24810-00-00)

Unavailable

24

REFLECTOR, REAR 1

449-85131-02-00

Unavailable

25

. WASHER, PLAIN

92990-05200-00

Unavailable

26

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

27

NUT, HEXAGON (663)

95380-05600-00

Unavailable
