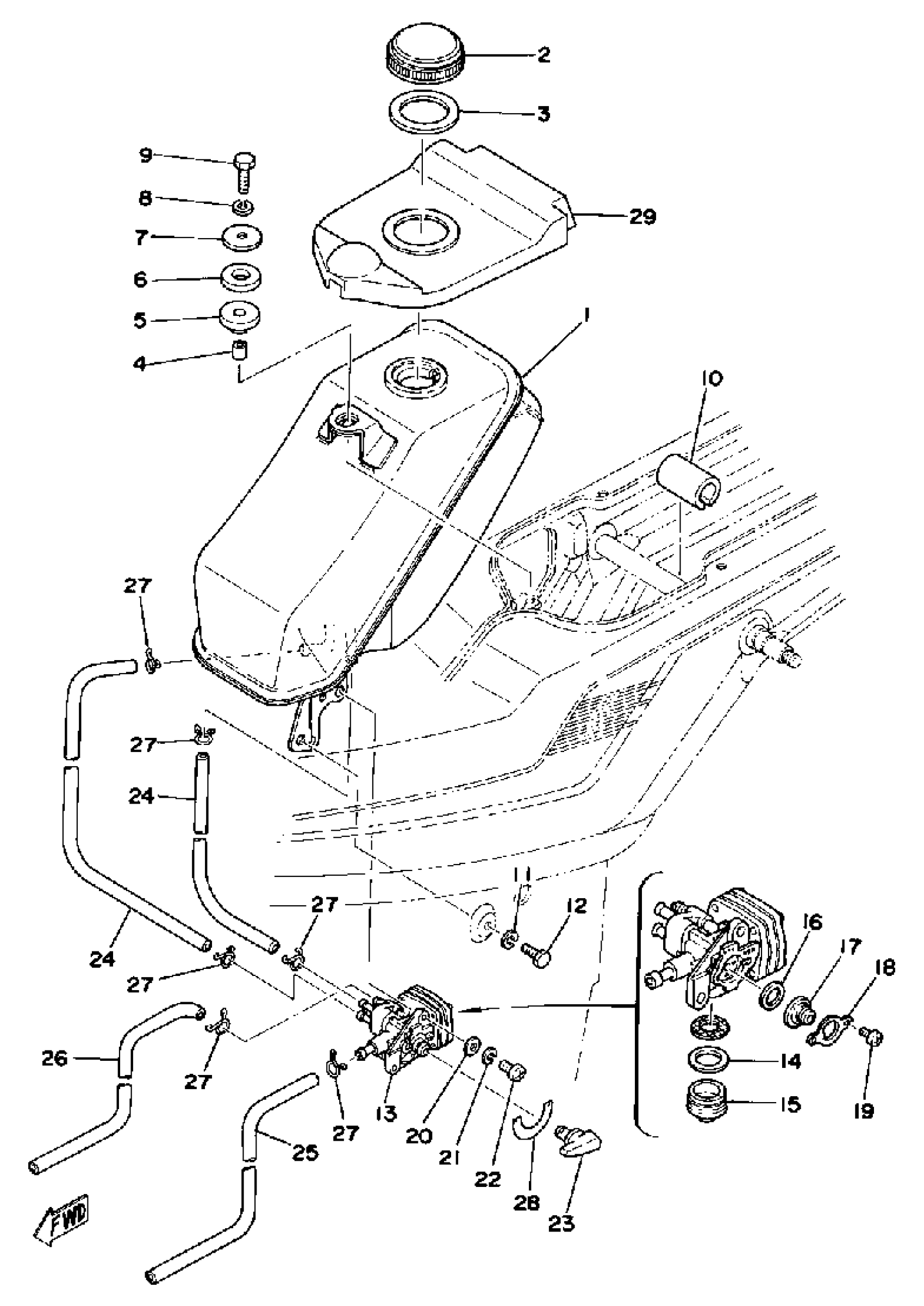

Yamaha LB80_3D (LB80-3D) 1977 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK

1M3-24110-00-33

Unavailable

2

CAP ASSY

22F-24610-10-00

Unavailable

3

PACKING, CAP

3T5-24612-20-00

$7.99

4

COLLAR

90387-07020-00

$8.49

5

GROMMET (462)

90480-14088-00

$5.60

6

WASHER, PLATE (462)

90202-14077-00

$4.29

7

WASHER PLATE 248217570000

90201-06074-00

$9.49

8

WASHER, SPRING

92995-06100-00

Unavailable

9

BOLT, HEXAGON

97017-06025-00

$4.24

10

DAMPER, LOCATING 1

439-24181-00-00

Unavailable

11

WASHER, SPRING

92995-06100-00

Unavailable

12

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

13

FUEL COCK ASSEMBLY 1

1M3-24500-00-00

Unavailable

14

GASKET

266-24522-00-00

Unavailable

15

. CUP, FILTER

395-24521-00-00

Unavailable

16

VALVE

266-24523-00-00

Unavailable

17

VALVE

(1M3-24523-00-00)

Unavailable

18

PLATE, LVR FITTING

(439-24525-00-00)

Unavailable

19

SCREW, PAN HEAD (J10)

98580-03008-00

Unavailable

20

WASHER, PLAIN (646)

92990-06600-00

Unavailable

21

WASHER, SPRING

92995-06100-00

Unavailable

22

SCREW, PAN

98507-06014-00

Unavailable

23

LEVER, COCK

1M3-24524-00-00

Unavailable

24

HOSE (L420)

90445-092K1-00

Unavailable

25

HOSE (L420)

90445-092K1-00

Unavailable

26

PIPE, SUCTION 1

(1M3-24335-00-00)

Unavailable

27

CLIP 101235600

90467-08003-00

Unavailable

28

EMBLEM, FUEL COCK

(1T8-24549-00-00)

Unavailable

29

SEAT, RUBBER

(1M3-24198-00-00)

Unavailable
