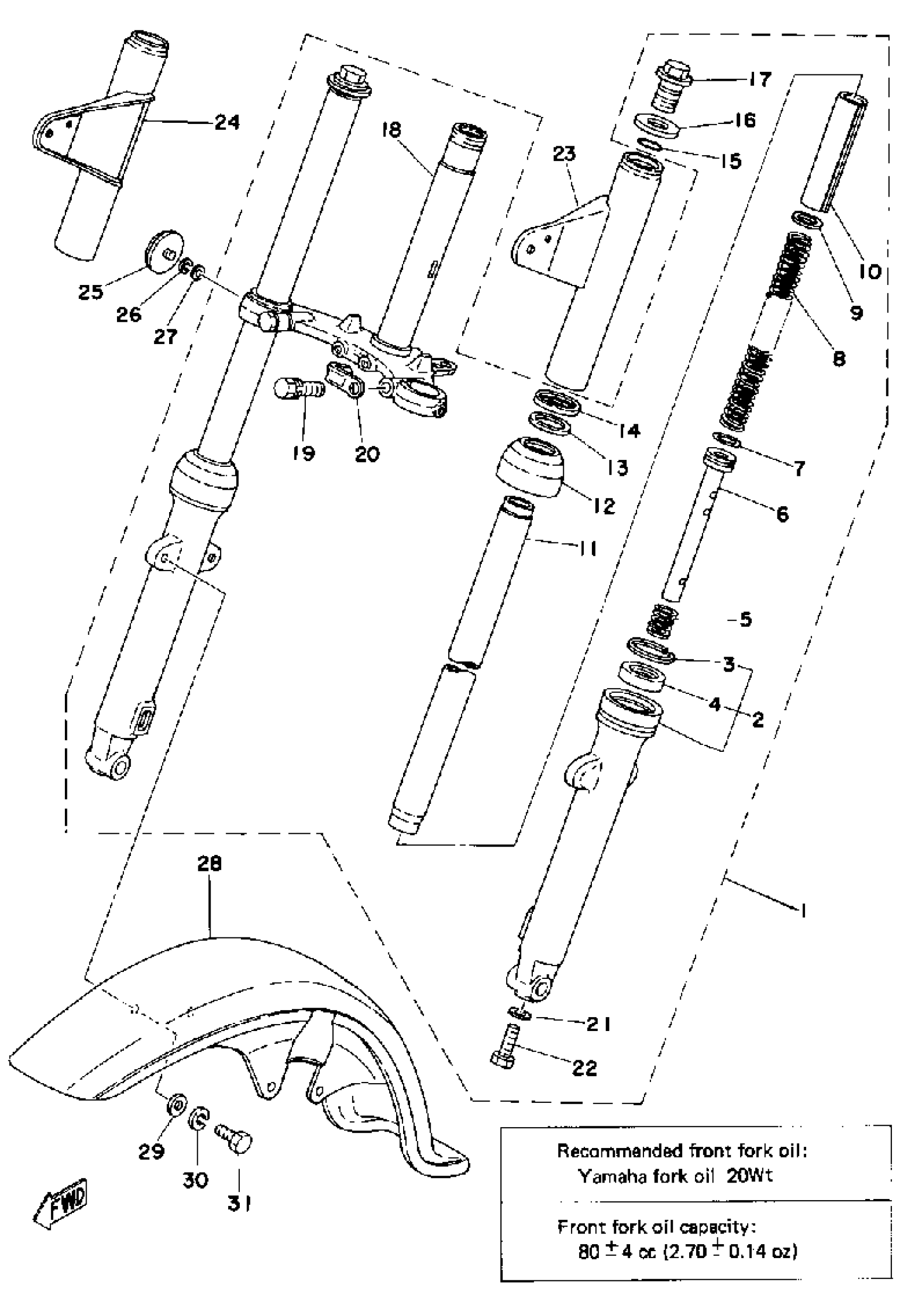

Yamaha LB80_3D (LB80-3D) 1977 FRONT FORK - FRONT FENDER Diagram

#

Description
Price

1

FRONT FORK ASSEMBLY

(1T8-23101-00-00)

Unavailable

2

TUBE, OUTER 2

(1T8-23136-00-35)

Unavailable

3

CLIP (1T8)

1T8-23156-00-00

$7.99

4

OIL SEAL

3VR-23145-00-00

$31.99

5

SPRING, SUB

(1T8-23152-00-00)

Unavailable

6

CYLINDER, FRTFRK

(1T8-23170-00-00)

Unavailable

7

RING, PISTON FRTFRK

(1T8-23157-00-00)

Unavailable

8

SPRING, FRONT FORK

(1T8-23141-00-00)

Unavailable

9

WASHER, SPRING UPR

(290-23149-00-00)

Unavailable

10

. UNAVAILABLE IN PRICE BOOK

1T8-23118-00-00

Unavailable

11

TUBE, INNER 2

(1T8-23134-00-93)

Unavailable

12

. SEAL, DUST

1T8-23144-00-00

Unavailable

13

PACKING(LAMP STAY)

164-23163-00-00

$6.99

14

GUIDE, COVER UPPER

(354-23115-90-00)

Unavailable

15

. O-RING

93210-16275-00

Unavailable

16

WASHER, CAP

(1T8-23112-00-00)

Unavailable

17

BOLT, CAP

(1T8-23111-00-00)

Unavailable

18

. UNDER BRACKET

2T5-23340-00-33

Unavailable

19

BOLT 1

122-23346-02-00

Unavailable

20

. HOLDER, CABLE 1

260-23318-40-00

Unavailable

21

GASKET

(1N1-23158-00-00)

Unavailable

22

BOLT,SOCKET

91314-08025-00

Unavailable

23

COVER, UPPER 1

(1M3-23121-00-26)

Unavailable

24

COVER, UPPER 2

(1M3-23131-00-26)

Unavailable

25

REFLECTOR, FRONT 1

355-85111-01-00

Unavailable

26

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

27

. WASHER, PLAIN

92990-05200-00

Unavailable

28

FENDER, FRONT

1M3-21511-00-26

Unavailable

29

WASHER, PLATE

90201-06380-00

Unavailable

30

WASHER, SPRING

92995-06100-00

Unavailable

31

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable
