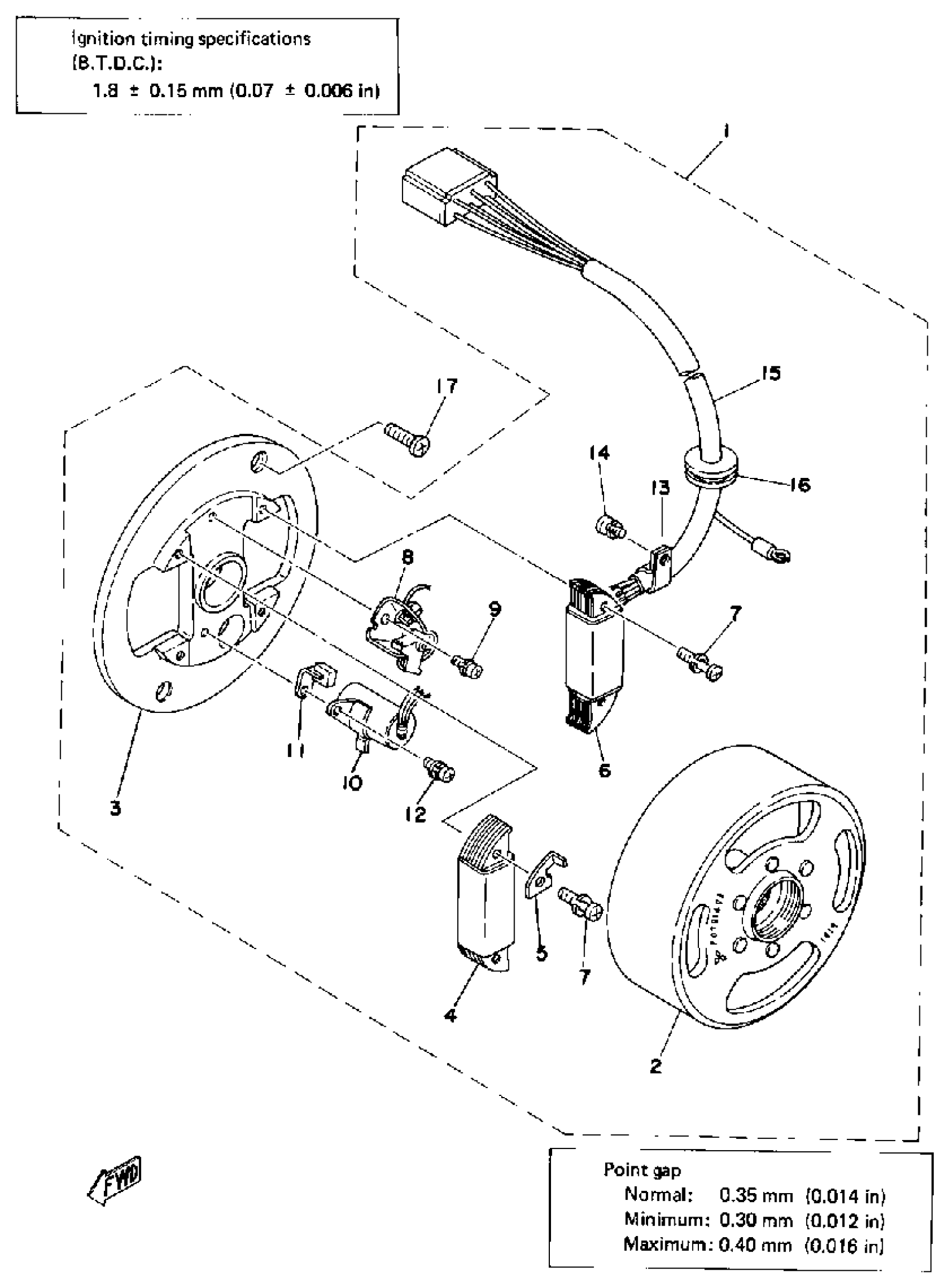

Yamaha LB80_3D (LB80-3D) 1977 FLYWHEEL MAGNETO Diagram

#

Description
Price

1

FLYWHL MAGNETO ASSEMBLY

(1T8-81300-21-00)

Unavailable

2

ROTOR ASSEMBLY

(591-81350-21-00)

Unavailable

3

BASE, MAGNETO

520-81309-20-00

Unavailable

4

. COIL, SOURCE

511-81312-20-00

Unavailable

5

PLATE, TIMING

(353-81332-20-00)

Unavailable

6

COIL, LIGHTING 1

(591-81313-21-00)

Unavailable

7

SCREW, PAN HEAD

98517-04025-00

Unavailable

8

CONTACT BREAKER ASSY

2A6-81321-20-00

$49.99

9

SCREW, PAN HEAD

110-81346-21-00

$5.49

10

CONDENSER

1K8-81325-20-00

$63.99

11

. LUBRICATOR

116-81331-20-00

Unavailable

12

SCREW, PAN HEAD

110-81346-21-00

$5.49

13

. CLAMP

109-81328-11-00

Unavailable

14

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

15

LEAD WIRE ASSEMBLY

(1T8-81315-20-00)

Unavailable

16

GROMMET (14L)

90480-16304-00

Unavailable

17

SCREW, FLAT

98707-05016-00

Unavailable
