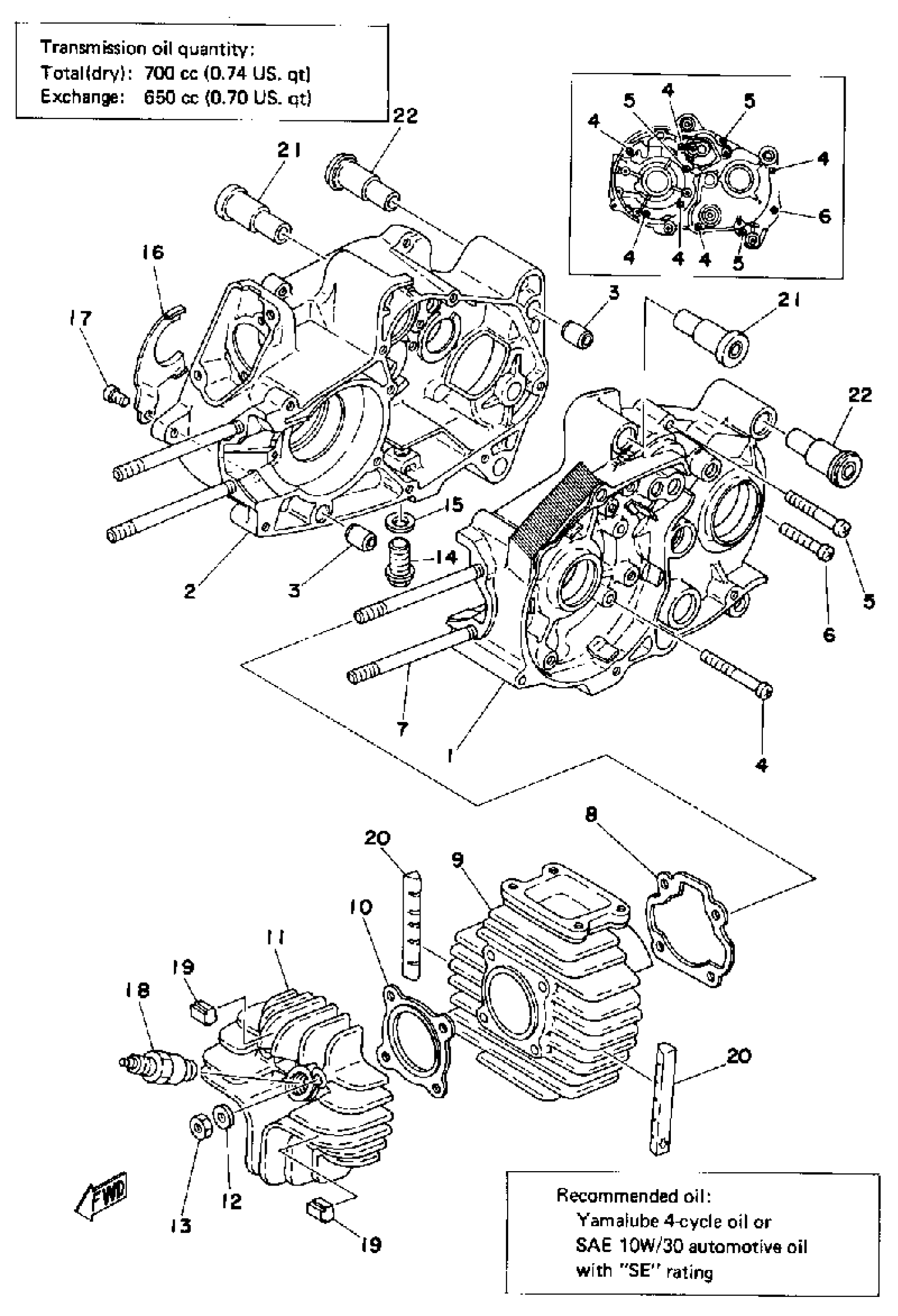

Yamaha LB80_3D (LB80-3D) 1977 CRANKCASE - CYLINDER Diagram

#

Description
Price

1

CRANKCASE 1

(1L7-15111-01-00)

Unavailable

2

CRANKCASE 2

(1L7-15121-02-00)

Unavailable

3

PIN, DOWEL

99530-12016-00

$4.89

4

SCREW PAN HEAD

98580-06550-00

$8.49

5

SCREW PAN HEAD

98580-06545-00

$5.60

6

SCREW, PAN HEAD(6H4)

97885-06035-00

Unavailable

7

BOLT, STUD 1221136100

90116-06100-00

$9.49

8

GASKET, CYLINDER

440-11351-01-00

Unavailable

9

CYLINDER 1

(1F5-11311-00-00)

Unavailable

10

GASKET, CYLINDER HEAD

2F4-11181-00-00

$50.99

11

HEAD, CYLINDER 1

(527-11111-00-94)

Unavailable

12

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

13

NUT, HEXAGON

95380-06600-00

Unavailable

14

PLUG STRAIGTSCREW 132153510000

90340-12005-00

$8.49

15

GASKET (3JD1)

90430-12207-00

$7.99

16

HOLDER

(296-15128-00-00)

Unavailable

17

SCREW, PAN

98507-08010-00

Unavailable

18

BR6HS NGK 4PK

BR6-HS000-00-00

Unavailable

19

ABSORBER

434-11161-00-00

Unavailable

20

ABSORBER 2

(1F5-11162-00-00)

Unavailable

21

DAMPER 1

5T9-15316-02-00

Unavailable

22

DAMPER 1

5T9-15316-02-00

Unavailable
