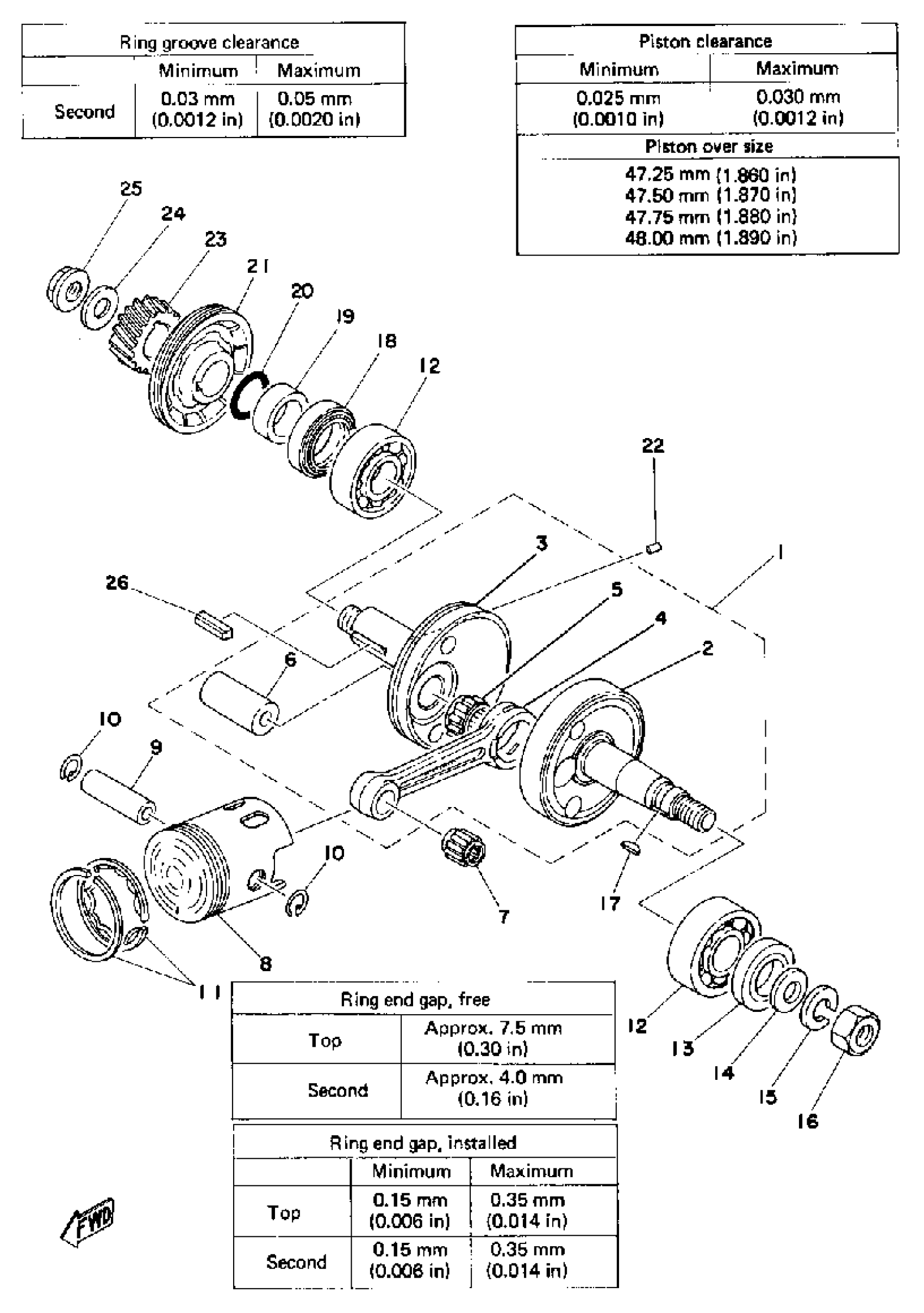

Yamaha LB80_3D (LB80-3D) 1977 CRANK - PISTON Diagram

CRANKSHAFT ASSEMBLY

(527-11400-02-00)

Unavailable

CRANK 1

(527-11412-03-00)

Unavailable

CRANK 2

(527-11422-00-00)

Unavailable

ROD, CONNECTING

3R1-11651-01-00

$125.99

BEARING, CYLINDRICAL(3TU)

93310-418C4-00

$48.99

PIN, CRANK 1

257-11681-10-00

$29.99

BRG,CYL-CAL ROLLER 5G TM

93310-11268-00

$35.99

PISTON (STD) 0.96MM

367-11631-11-96

Unavailable

PISTON (1ST O/S)

367-11635-11-00

Unavailable

PISTON (STD) 2ND O/S

367-11636-11-00

Unavailable

PISTON 3 O/S 0.75

367-11637-11-00

Unavailable

PISTON 4 O/S 1.00

367-11638-11-00

Unavailable

PIN, PISTON

527-11633-00-00

$17.49

CIRCLIP 132116340000

93450-13022-00

$8.49

PISTON RING SET (STD)

367-11610-00-00

$63.99

PISTON RINGSET 1ST

367-11610-10-00

Unavailable

PISTON RING SET (2NDO/S)

367-11610-20-00

Unavailable

PISTON RINGSET 3RD

367-11610-30-00

Unavailable

PISTON RINGSET 4TH

367-11610-40-00

Unavailable

BEARING(1GJ)

93306-20458-00

Unavailable

OIL SEAL (20X35X7-136)

93102-20009-00

Unavailable

WASHER (492)

90201-12535-00

Unavailable

YBS67-12 WASHER,SPRING

92990-12100-00

Unavailable

NUT(55K)

90170-12347-00

Unavailable

KEY WOODRUFF 146115450000

90280-03017-00

Unavailable

OIL SEAL (28X40X8-132)

93103-28011-00

Unavailable

COLLAR 183161360000

90387-20163-00

Unavailable

O-RING(3KX)

93210-180A6-00

Unavailable

GEAR, PUMP DRIVE

(517-13178-01-00)

Unavailable

. PIN, DOWEL

93603-08072-00

Unavailable

GEAR, PRI DRIVE

(527-16111-01-20)

Unavailable

GEAR, PRI DRIVE

(527-16111-01-30)

Unavailable

GEAR, PRI DRIVE

(527-16111-01-40)

Unavailable

WASHER, CONICAL SPRING 12,2 X

90208-12800-00

Unavailable

NUT(1EE)

90179-12659-00

Unavailable

KEY, STRAIGHT 3531154600

90282-05005-00

Unavailable
