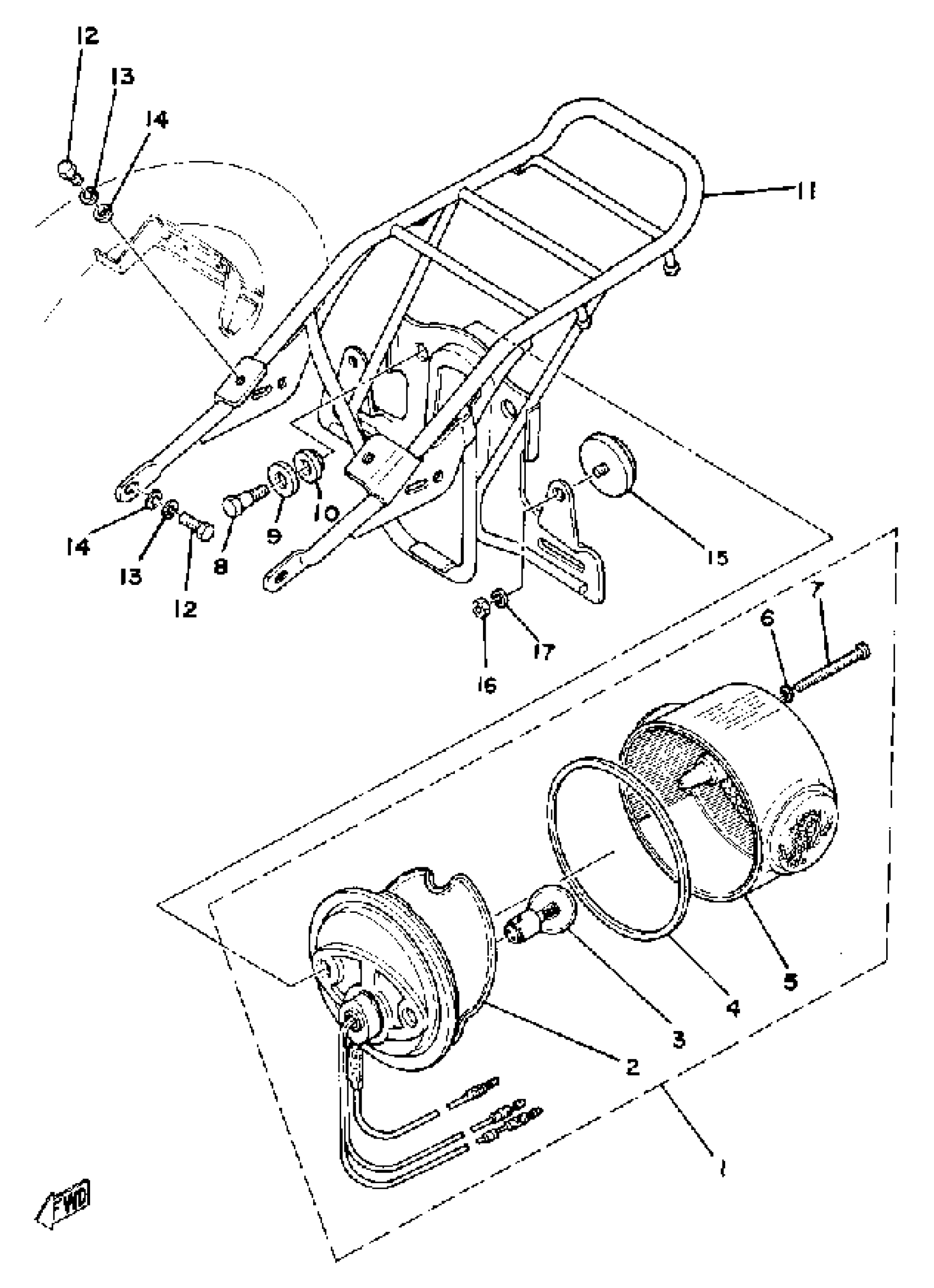

Yamaha LB50PG (LB50P) 1980 TAILLIGHT LB50PG - PH - PJ Diagram

#

Description
Price

1

TAIL LIGHT UNIT ASSEMBLY

437-84510-62-00

Unavailable

2

BASE, TAILLIGHT

(444-84711-61-00)

Unavailable

3

. BULB

1M1-84514-60-00

Unavailable

4

. GASKET, LENS

275-84523-60-00

Unavailable

5

. LENS, TAIL LIGHT

341-84721-60-00

Unavailable

6

. WASHER

341-84722-60-00

Unavailable

7

SCREW, PANHEAD (4G7)

98580-04055-00

Unavailable

8

SCREW

(479-84526-00-00)

Unavailable

9

WASHER, SPECIAL

2H7-84754-00-00

$10.99

10

. DAMPER

275-84527-60-00

Unavailable

11

CARRIER ASSEMBLY

(542-24810-01-00)

Unavailable

12

BOLT(8CP)

97017-06014-00

$8.49

13

WASHER, SPRING

92995-06100-00

Unavailable

14

WASHER, PLAIN (646)

92990-06600-00

$2.80

15

REFLECTOR, REAR 1

449-85131-02-00

$30.99

16

NUT, HEXAGON (663)

95380-05600-00

Unavailable

17

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable
