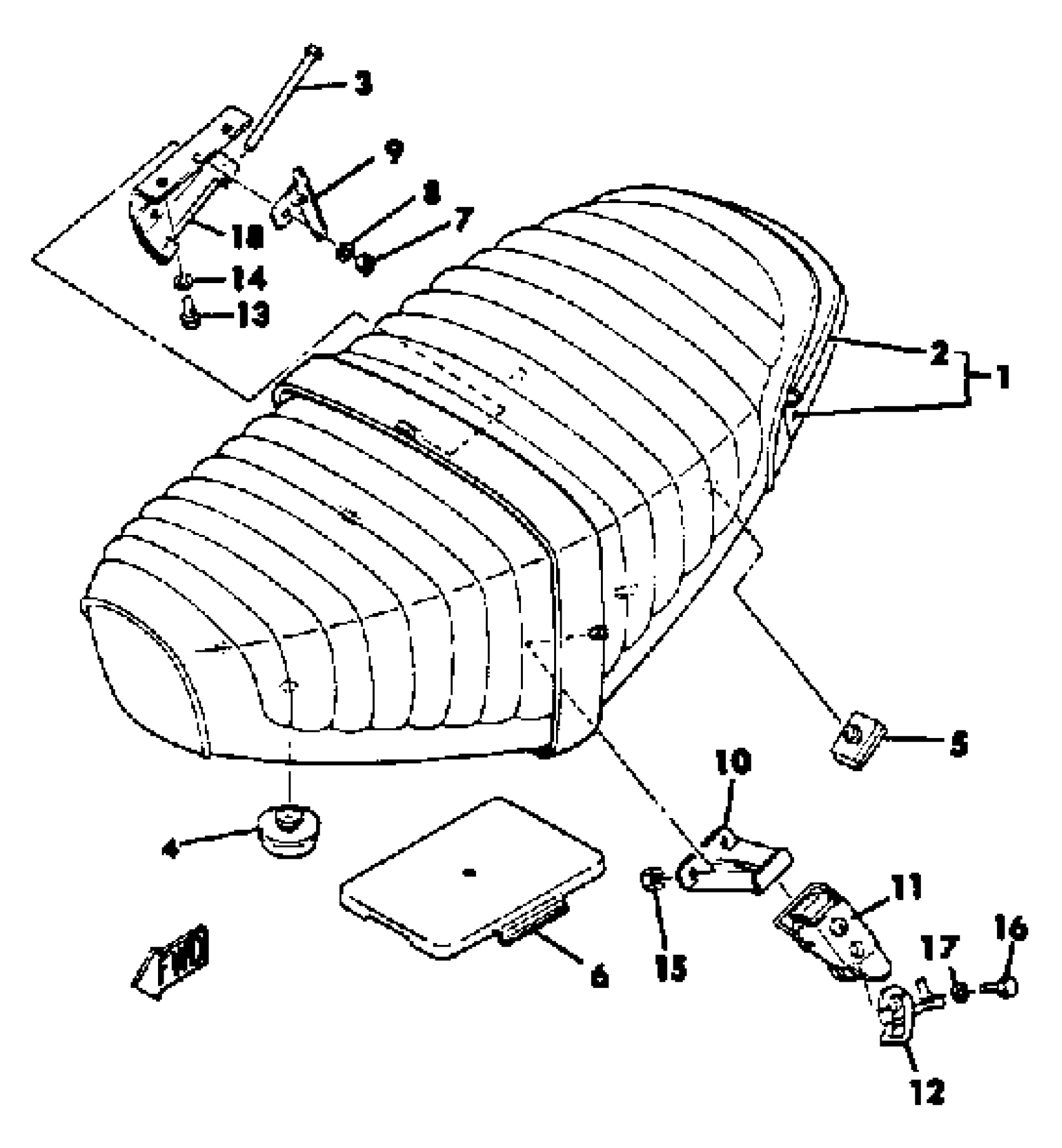

Yamaha LB50PG (LB50P) 1980 SEAT LB50PH - PJ Diagram

#

Description
Price

1

SINGLE SEAT ASSEMBLY

1L4-W2471-01-00

Unavailable

2

. COVER, SINGLE SEAT

1L4-24711-01-00

Unavailable

3

PIN

1K8-24774-00-00

Unavailable

4

PAD, SEAT

1L9-24741-00-00

$9.99

5

DAMPER, SEAT

214-24724-00-00

$7.99

6

LID

395-28185-00-00

Unavailable

7

NUT, HEXAGON

95380-06600-00

Unavailable

8

WASHER, SPRING

92995-06100-00

Unavailable

9

STOPPER

(561-24768-02-00)

Unavailable

10

BRACKET, SEAT

(1F1-24728-00-00)

Unavailable

11

SEAT LEVER ASSY

1K8-24705-00-00

Unavailable

12

HOOK, HELMET

341-24818-02-00

Unavailable

13

BOLT (661)

97013-06012-00

$5.60

14

WASHER, PLAIN (646)

92990-06600-00

$2.80

15

NUT, HEXAGON

95380-06600-00

Unavailable

16

BOLT, HEXAGON

97017-06025-00

Unavailable

17

WASHER, PLAIN (646)

92990-06600-00

$2.80

18

HINGE, SEAT

(561-24726-00-00)

Unavailable
