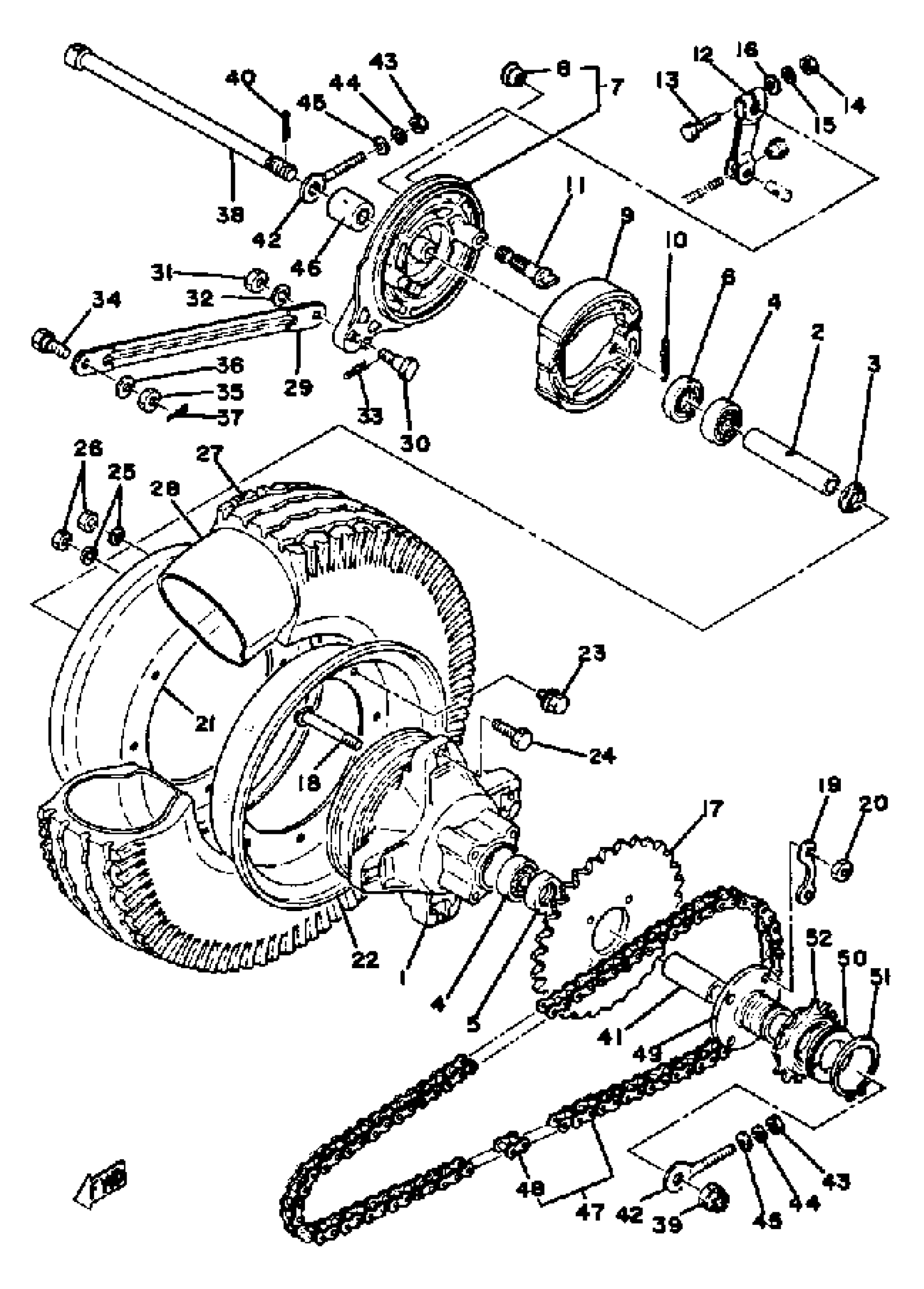

Yamaha LB50PG (LB50P) 1980 REAR WHEEL LB50PG - PH - PJ Diagram

#

Description
Price

1

HUB, REAR

(439-25311-00-00)

Unavailable

2

SPACER (439-25317-00)

90560-12110-00

Unavailable

3

FLANGE, SPACER

109-25315-00-00

$7.99

4

BEARING(3WF)

93306-20119-00

$33.99

5

OIL SEAL, DD-TYPE

93106-20011-00

Unavailable

6

OIL SEAL (21X37X7-102)

93104-21016-00

$14.99

7

BRAKE SHOE PLT ASSEMBLY (339-25320-10-35)

339-25026-10-35

Unavailable

8

GROMMET (397)

90480-10068-00

$8.49

9

BRAKE SHOE KIT

2JL-W253E-20-00

Unavailable

10

SPRING, TENSION (566).

90506-16150-00

$9.49

11

CAM SHAFT

122-25351-02-00

Unavailable

12

LEVER, CAMSHAFT

102-25355-01-00

Unavailable

13

BOLT, HEXAGON (538)

90101-06278-00

$2.17

14

NUT, HEXAGON

95380-06600-00

Unavailable

15

WASHER, SPRING

92995-06100-00

Unavailable

16

WASHER, PLAIN (646)

92990-06600-00

Unavailable

17

SPROCKET, DRIVN 32T

109-25432-10-00

Unavailable

17

SPROCKET, DRIVN 32T

109-25432-10-00

Unavailable

17

SPROCKET, DRVN 33T

109-25433-10-00

Unavailable

18

BOLT

90109-08411-00

Unavailable

19

WASHER

2AL-25412-00-00

Unavailable

20

NUT, HEXAGON (509)

90170-08158-00

Unavailable

21

PANEL, WHEEL 1

1L4-25337-00-00

Unavailable

22

PANEL, WHEEL 2

1L4-25347-00-00

Unavailable

23

BOLT, WITH WASHER

(90119-08023-00)

Unavailable

24

BOLT, HEXAGON

97017-08025-00

Unavailable

25

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

26

NUT(6L2)

95333-08600-00

Unavailable

27

TIRE (5F5)

94140-08747-00

Unavailable

28

TUBE

94240-08136-00

Unavailable

29

BAR, TENSION

353-25371-00-00

Unavailable

30

BOLT 1022537300

90109-08183-00

Unavailable

31

. NUT

95380-08700-00

Unavailable

32

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

33

CLIP (156-83525-00)

90468-10050-00

Unavailable

34

BOLT (183-25378-00)

90109-08368-00

Unavailable

35

NUT, SPECIAL SHAPE

90179-08288-00

Unavailable

36

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

37

PIN, COTTER

91490-20025-00

Unavailable

38

AXLE, WHEEL

550-25381-00-00

Unavailable

39

NUT CASTLE(481)

90171-12005-00

Unavailable

40

PIN, COTTER

91490-30030-00

Unavailable

41

COLLAR

90387-12502-00

Unavailable

42

PULLER, CHAIN

3AC-2538G-10-00

Unavailable

43

NUT, HEXAGON

95380-06600-00

Unavailable

44

WASHER, SPRING

92995-06100-00

Unavailable

45

WASHER, PLAIN (646)

92990-06600-00

Unavailable

46

COLLAR 102253830000

90387-12412-00

Unavailable

47

UNAVAILABLE IN PRICE BOOK (DK420M-92L)

94513-09200-00

Unavailable

48

JOINT, CHAIN (29A)

94680-52001-00

Unavailable

49

BOSS

(550-25521-01-00)

Unavailable

50

HOLDER

(550-25522-00-00)

Unavailable

51

CIRCLIP,S-TYPE

93410-48020-00

Unavailable

52

FREE WHEEL ASSEMBLY

34N-25510-00-00

Unavailable
