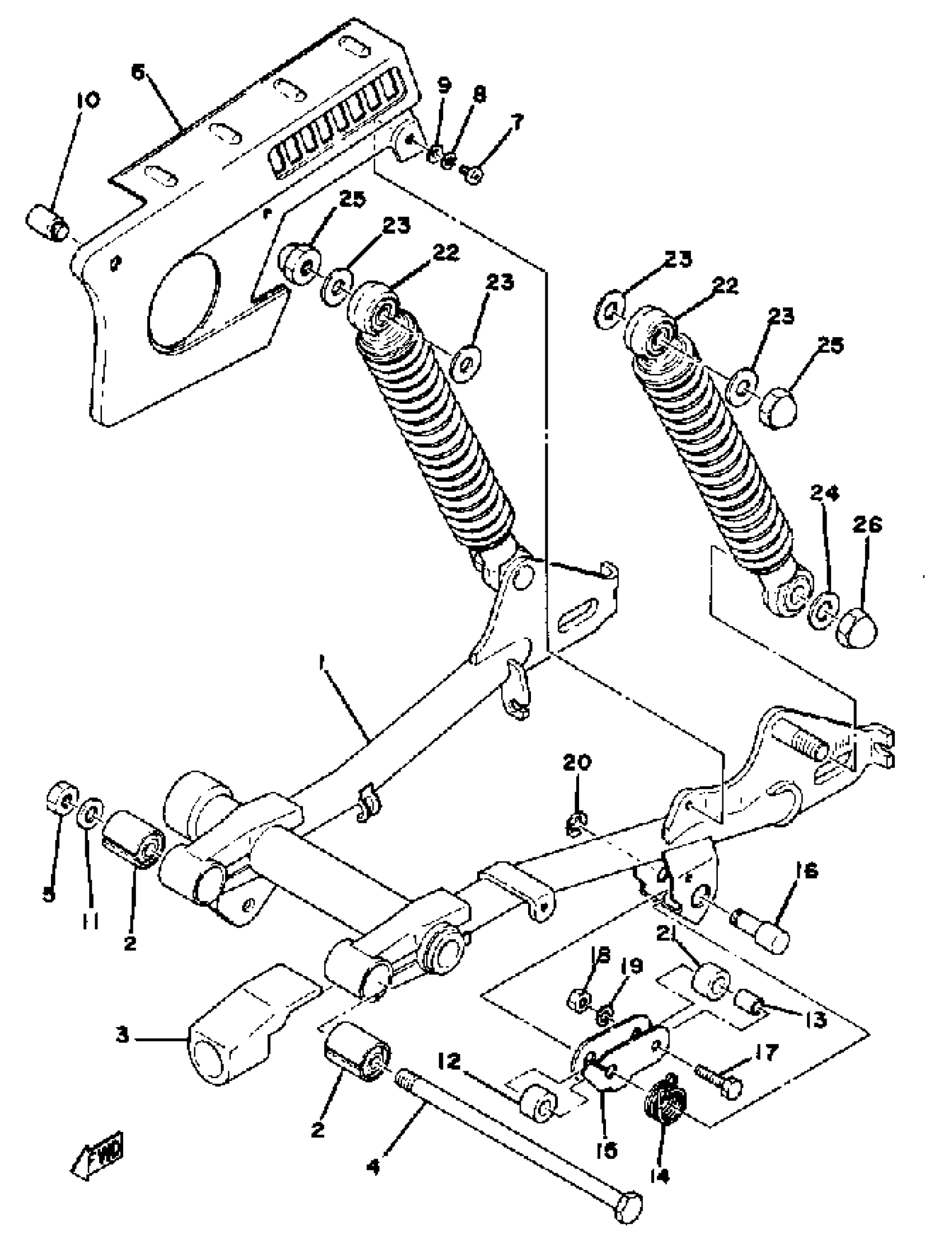

Yamaha LB50PG (LB50P) 1980 REAR ARM - SUSPENSION LB50PG - PH - PJ Diagram

#

Description
Price

1

REAR ARM

(1F1-22110-10-33)

Unavailable

2

BUSH 1

102-22123-00-00

Unavailable

3

SEAL, GUARD

(550-22151-00-00)

Unavailable

4

AXLE, WHEEL

3XG-F5181-00-00

$4.21

5

NUT, U

95617-10100-00

$8.49

6

CASE, CHAIN

550-22311-00-35

Unavailable

7

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

8

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

9

. WASHER, PLAIN

92990-05200-00

Unavailable

10

DAMPER, CHAIN CASE

550-22332-00-00

Unavailable

11

WASHER PLATE 341222430000

90201-10142-00

$4.82

12

TENSIONER

(550-22178-00-00)

Unavailable

13

COLLAR

(90387-06268-00)

Unavailable

14

SPRING, TORSION

(90508-20300-00)

Unavailable

15

ARM, TENSIONER

(550-22179-00-00)

Unavailable

16

SHAFT 2

(1F1-22122-00-00)

Unavailable

17

BOLT, HEXAGON

97017-06025-00

Unavailable

18

NUT(650)

95380-06700-00

Unavailable

19

WASHER, SPRING

92995-06100-00

Unavailable

20

CIRCLIP(2R6)

99001-08600-00

Unavailable

21

TENSIONER

(550-22178-00-00)

Unavailable

22

SHOCK ABSORBER ASSY

561-22210-22-00

Unavailable

23

WASHER, PLATE (4N0)

90201-126A7-00

Unavailable

24

WASHER, PLATE (4N0)

90201-126A7-00

Unavailable

25

NUT CROWN(663)

95380-12800-00

Unavailable

26

NUT CROWN(663)

95380-12800-00

Unavailable
