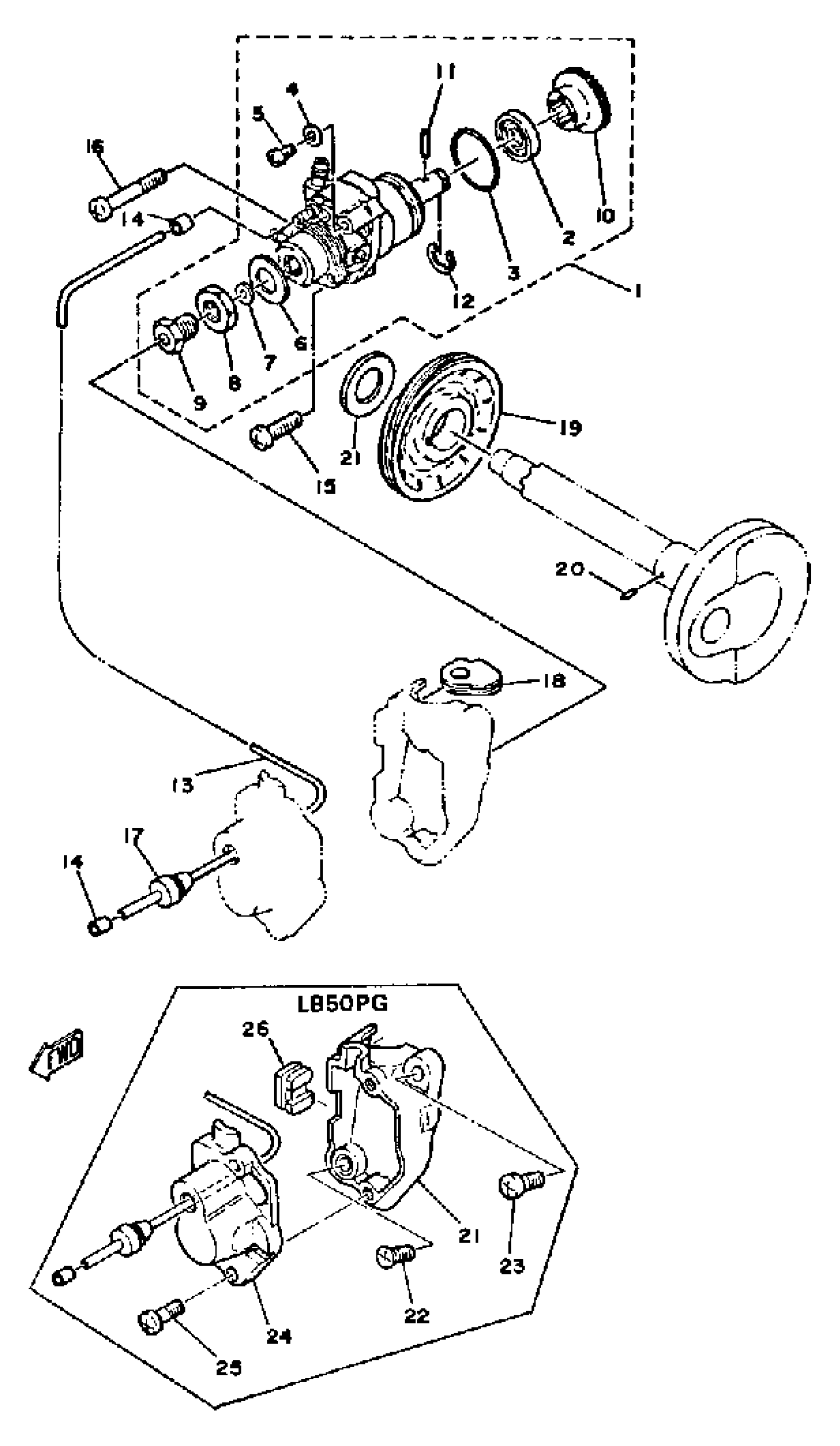

Yamaha LB50PG (LB50P) 1980 OIL PUMP LB50PG - PH - PJ Diagram

#

Description
Price

1

OIL PUMP ASSY

527-13101-01-00

Unavailable

2

. UNAVAILABLE IN PRICE BOOK

92101-10001-00

Unavailable

3

O-RING

93210-26240-00

$8.49

4

GASKET 137131870000

90430-04004-00

$9.49

5

SCREW (3L5)

90149-04135-00

$1.11

6

SHIM

296-13147-00-00

$3.54

7

PLATE, ADJUSTING

384-13138-00-00

$6.99

8

NUT

90170-10105-00

Unavailable

9

BOLT, UNION (527 CKD)

90401-10029-00

Unavailable

10

GEAR, WORM WHEEL

296-13124-00-00

Unavailable

11

PIN, DOWEL

93603-14026-00

$8.49

12

CIRCLIP

99080-07600-00

Unavailable

13

HOSE

90445-05206-00

Unavailable

14

CLIP (214-13164-00)

90468-02033-00

$8.49

15

SCREW, PAN HEAD

98580-05020-00

Unavailable

16

SCREW, PAN

98507-05035-00

Unavailable

17

GROMMET (439)

90480-11057-00

Unavailable

18

HOLDER, OIL PIPE

384-13174-00-00

Unavailable

19

GEAR, DRIVE

296-13178-02-00

Unavailable

20

. PIN, DOWEL

93603-08072-00

Unavailable

21

COVER, OIL PUMP

439-15416-02-00

Unavailable

22

SCREW, OVAL HEAD (92701-06012)

98603-06012-00

Unavailable

23

SCREW, PAN

98507-06014-00

Unavailable

24

COVER, OIL PUMP R

(439-15426-03-00)

Unavailable

25

SCREW, PAN

98507-06014-00

Unavailable

26

GROMMET

90480-16179-00

Unavailable
