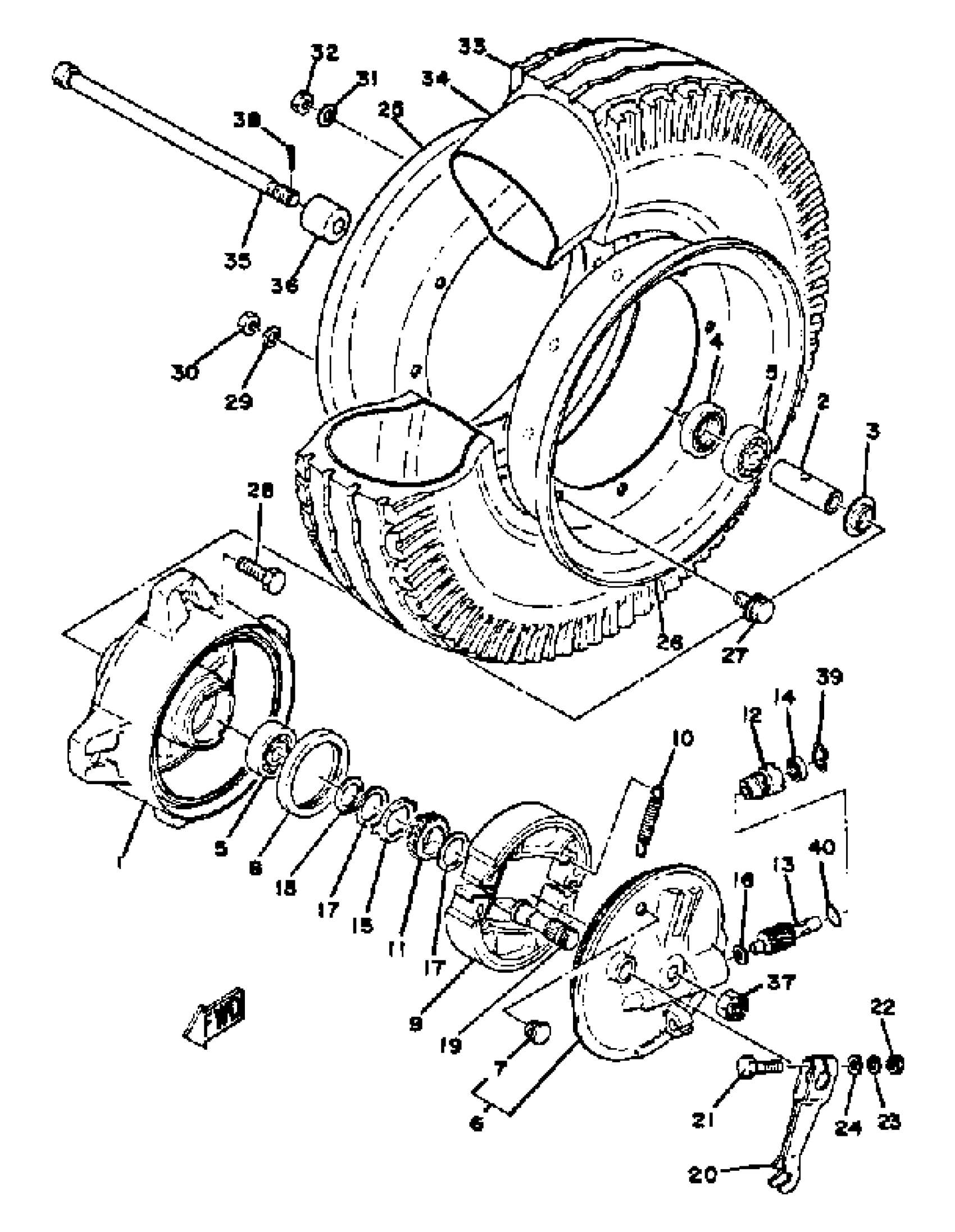

Yamaha LB50PG (LB50P) 1980 FRONT WHEEL LB50PG - PH - PJ Diagram

#

Description
Price

1

HUB, FRONT

(439-25111-01-35)

Unavailable

2

SPACER

90560-10104-00

Unavailable

3

FLANGE, SPACER 2

2E9-25116-00-00

$7.99

4

OIL SEAL (20X35X7-136)

93102-20009-00

$10.49

5

BRG,R-B 6300 35MM 58G NT

93306-30003-00

$41.99

6

BRAKE SHOE PLT ASSEMBLY

393-25016-10-35

Unavailable

7

GROMMET (397)

90480-10068-00

$8.49

8

SEAL,OIL

93105-47007-00

$15.99

9

BRAKE SHOE KIT

2JL-W253E-20-00

Unavailable

10

SPRING, TENSION (566).

90506-16150-00

$9.49

11

GEAR, DRIVE

(2U7-25135-00-00)

Unavailable

12

BUSHING

109-25136-00-00

$10.99

13

GEAR, METER

2U7-25138-00-00

Unavailable

14

OIL SEAL (7X14X4-136)

93104-07003-00

$8.49

15

CLUTCH, METER

183-25149-00-00

$6.99

16

WASHER, PLATE 1832514600

90201-07076-00

Unavailable

17

WASHER, PLATE 1832514700

90201-20269-00

Unavailable

18

CIRCLIP(1AR)

99009-20400-00

Unavailable

19

CAM SHAFT

122-25351-02-00

Unavailable

20

LEVER, CAMSHAFT 1

109-25155-00-00

Unavailable

21

BOLT, HEXAGON (538)

90101-06278-00

Unavailable

22

NUT, HEXAGON

95380-06600-00

Unavailable

23

WASHER, SPRING

92995-06100-00

Unavailable

24

WASHER, PLAIN (646)

92990-06600-00

Unavailable

25

PANEL, WHEEL 1

1L4-25337-00-00

Unavailable

26

PANEL, WHEEL 2

1L4-25347-00-00

Unavailable

27

BOLT, WITH WASHER

(90119-08023-00)

Unavailable

28

BOLT, HEXAGON

97017-08025-00

Unavailable

29

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

30

NUT(6L2)

95333-08600-00

Unavailable

31

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

32

NUT(6L2)

95333-08600-00

Unavailable

33

TIRE (5F5)

94140-08747-00

Unavailable

34

TUBE

94240-08136-00

Unavailable

35

AXLE, WHEEL KIT

99999-02216-00

Unavailable

36

COLLAR (128-25183-00)

90387-10081-00

Unavailable

37

NUT 3532518200

90171-10004-00

Unavailable

38

PIN, COTTER

91490-20025-00

Unavailable

39

RING, STOP

102-25137-00-00

Unavailable

40

O-RING (26H)

93210-14579-00

Unavailable
