1980 Yamaha LB50P (LB50PG) Front Fork LB50PH Diagram

← All diagrams

Find the part on the Front Fork LB50PH diagram for your 1980 Yamaha LB50P (LB50PG), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

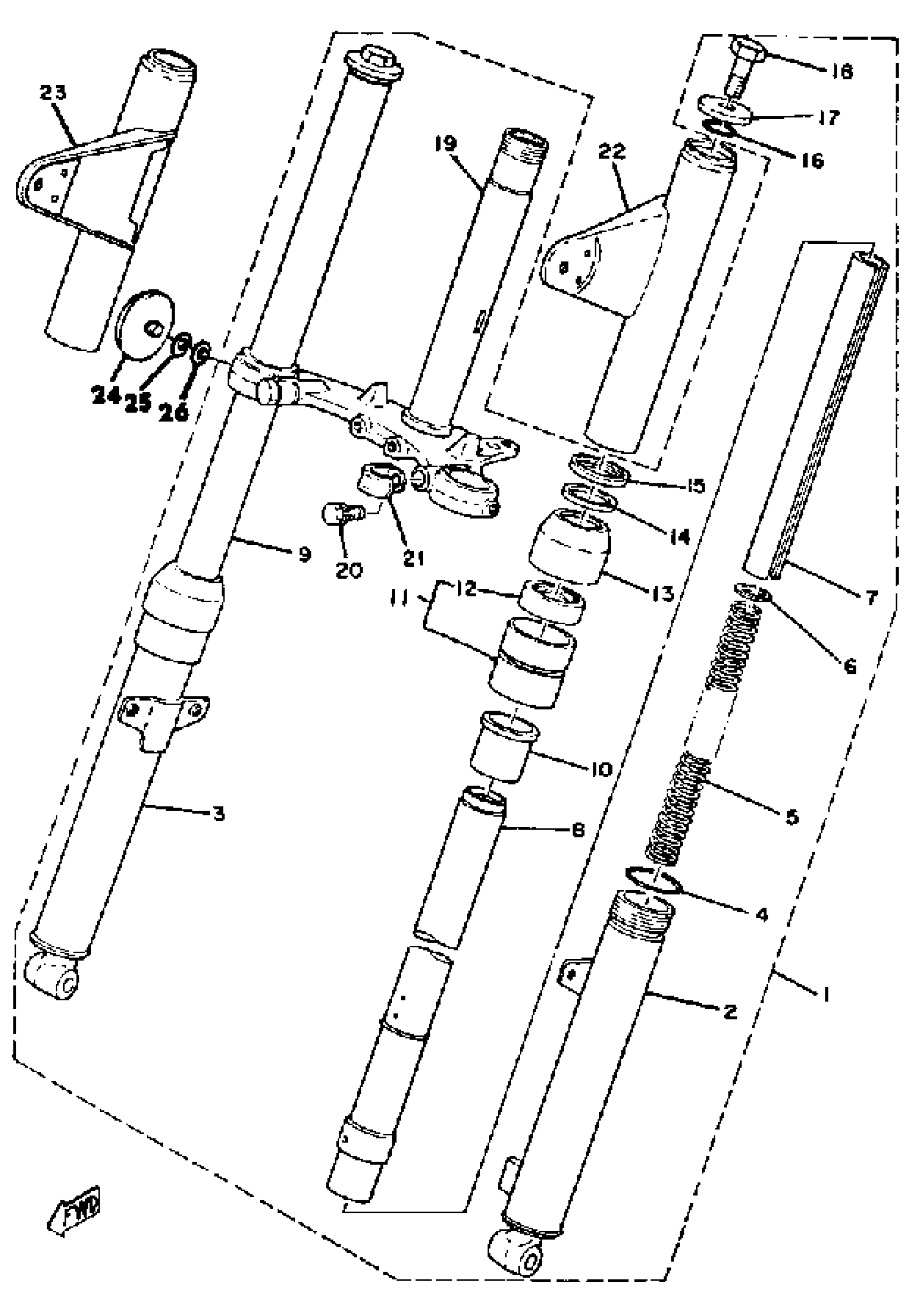

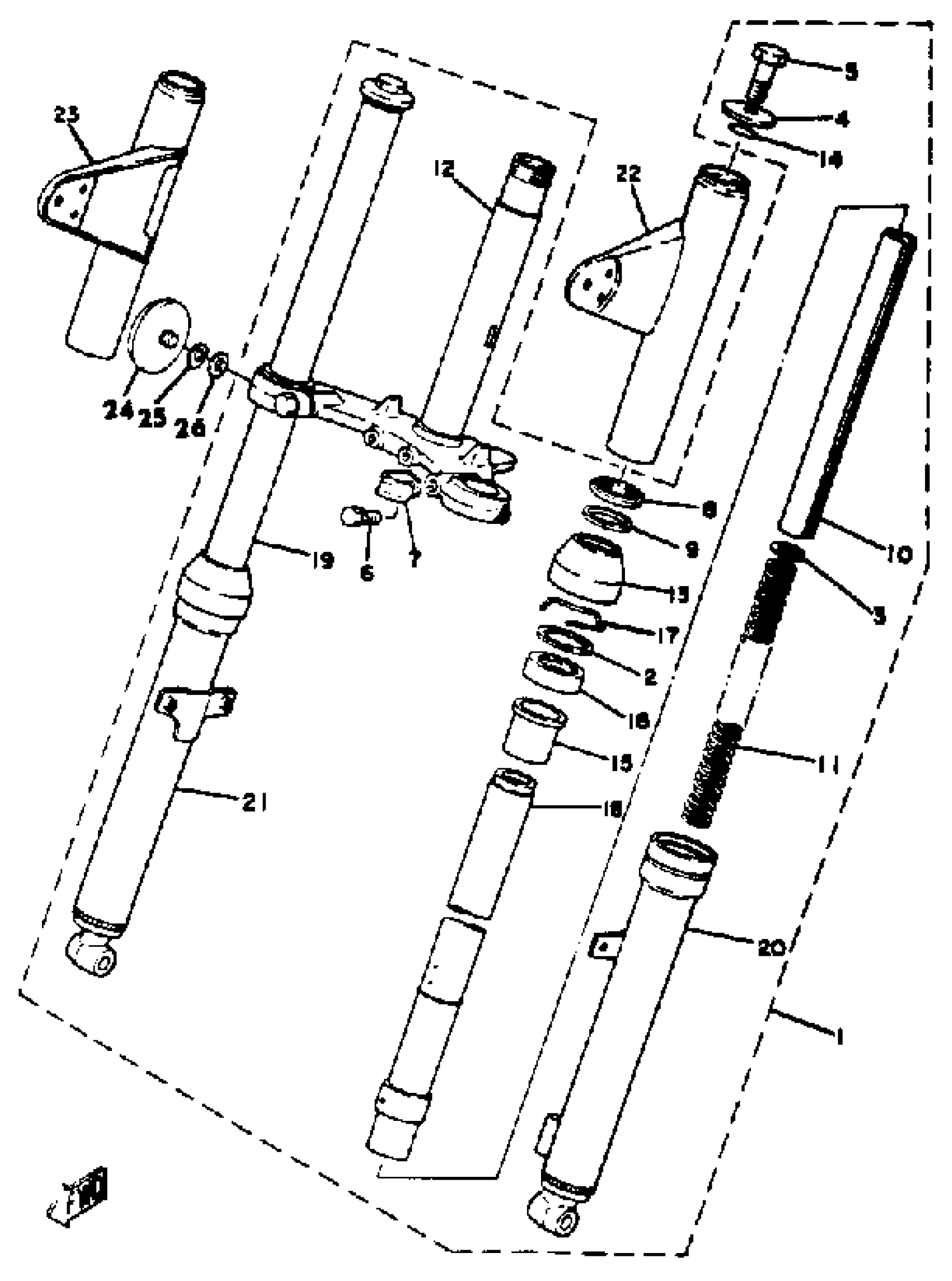

1980 Yamaha LB50P (LB50PG) Front Fork LB50PH Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSEMBLY

(1J9-23101-00-00)

1
Out of stock

2

. NO LONGER AVAILABLE

367-23146-60-00

1
Out of stock

3

WASHER, SPRING UPR

(290-23149-00-00)

1
Out of stock

4

WASHER, CAP

207-23112-00-00

—

$21.37

In stock

5

. BOLT, CAP

395-23111-00-00

1
Out of stock

6

BOLT 1

(1M3-23346-00-00)

1
Out of stock

7

. HOLDER, CABLE 1

260-23318-40-00

1
Out of stock

8

GUIDE, COVER UPPER

(354-23115-90-00)

1
Out of stock

9

PACKING(LAMP STAY)

164-23163-00-00

1

$6.46

In stock

10

SPACER, OIL LOCK

(2T5-23166-00-00)

1
Out of stock

11

SPRING, FRONT FORK

(2T5-23141-00-00)

1
Out of stock

12

. UNDER BRACKET

2T5-23340-00-33

1
Out of stock

13

. SEAL, DUST

367-23144-60-00

1
Out of stock

14

GASKET

307-23114-00-00

1
Out of stock

15

METAL, SLIDE 1

367-23125-60-00

1

$28.03

In stock

16

OIL SEAL

3VR-23145-00-00

—

$27.28

In stock

17

CLIP (1T8)

1T8-23156-00-00

—
Out of stock

18

TUBE, INNER 1

(4F4-23124-00-00)

1
Out of stock

19

TUBE, INNER 2

4F4-23134-00-00

—

$114.18

In stock

20

TUBE, OUTER 1

(4F4-23126-00-35)

1
Out of stock

21

TUBE, OUTER 2

(4F4-23136-00-35)

1
Out of stock

22

COVER, UPPER 1

439-23121-00-E1

1
Out of stock

23

COVER, UPPER 2

439-23131-00-E1

1
Out of stock
