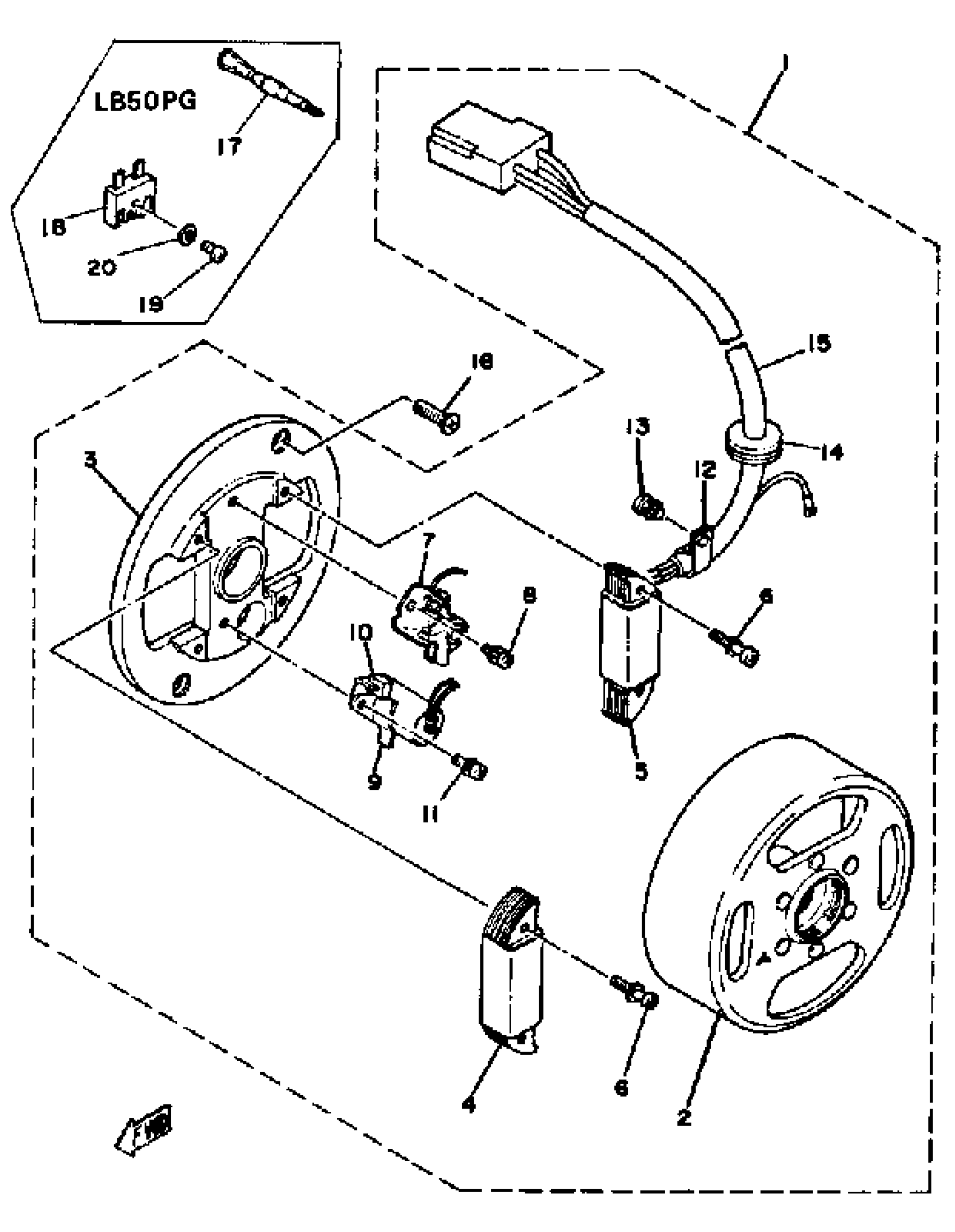

Yamaha LB50PG (LB50P) 1980 FLYWHEEL MAGNETO LB50PG - PH - PJ Diagram

#

Description
Price

1

FLYWHL MAGNETO ASSEMBLY

(2U7-81300-20-00)

Unavailable

1

FLYWHL MAGNETO ASSEMBLY

(2U7-81300-21-00)

Unavailable

2

ROTOR ASSEMBLY

(520-81350-20-00)

Unavailable

3

BASE, MAGNETO

520-81309-20-00

Unavailable

4

. COIL, SOURCE

2U7-81312-21-00

Unavailable

5

. COIL, LIGHTING 1

2U7-81313-20-00

Unavailable

5

COIL, LIGHTING 1

(2U7-81313-21-00)

Unavailable

6

SCREW, PAN HEAD

98517-04025-00

Unavailable

7

. CONTACT BRKR ASSEMBLY

1V1-81321-90-00

Unavailable

7

CONTACT BREAKER ASSY

2A6-81321-20-00

$49.99

8

SCREW, PAN HEAD

110-81346-21-00

$5.49

9

CONDENSER

1K8-81325-20-00

$63.99

10

. LUBRICATOR

116-81331-20-00

Unavailable

11

SCREW, PAN HEAD

110-81346-21-00

$5.49

12

CLAMP, LEAD

104-81328-20-00

$6.99

13

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

14

GROMMET (14L)

90480-16304-00

Unavailable

15

LEAD WIRE ASSEMBLY

(2F7-81315-21-00)

Unavailable

16

SCREW, FLAT

98707-05016-00

Unavailable

17

DIODE ASSY

517-81980-A0-00

Unavailable

18

RECTIFIER ASSY

353-81970-M2-00

Unavailable

19

SCREW, PAN HEAD

98580-05020-00

Unavailable

20

WASHER, PLAIN (646)

92990-05600-00

Unavailable
