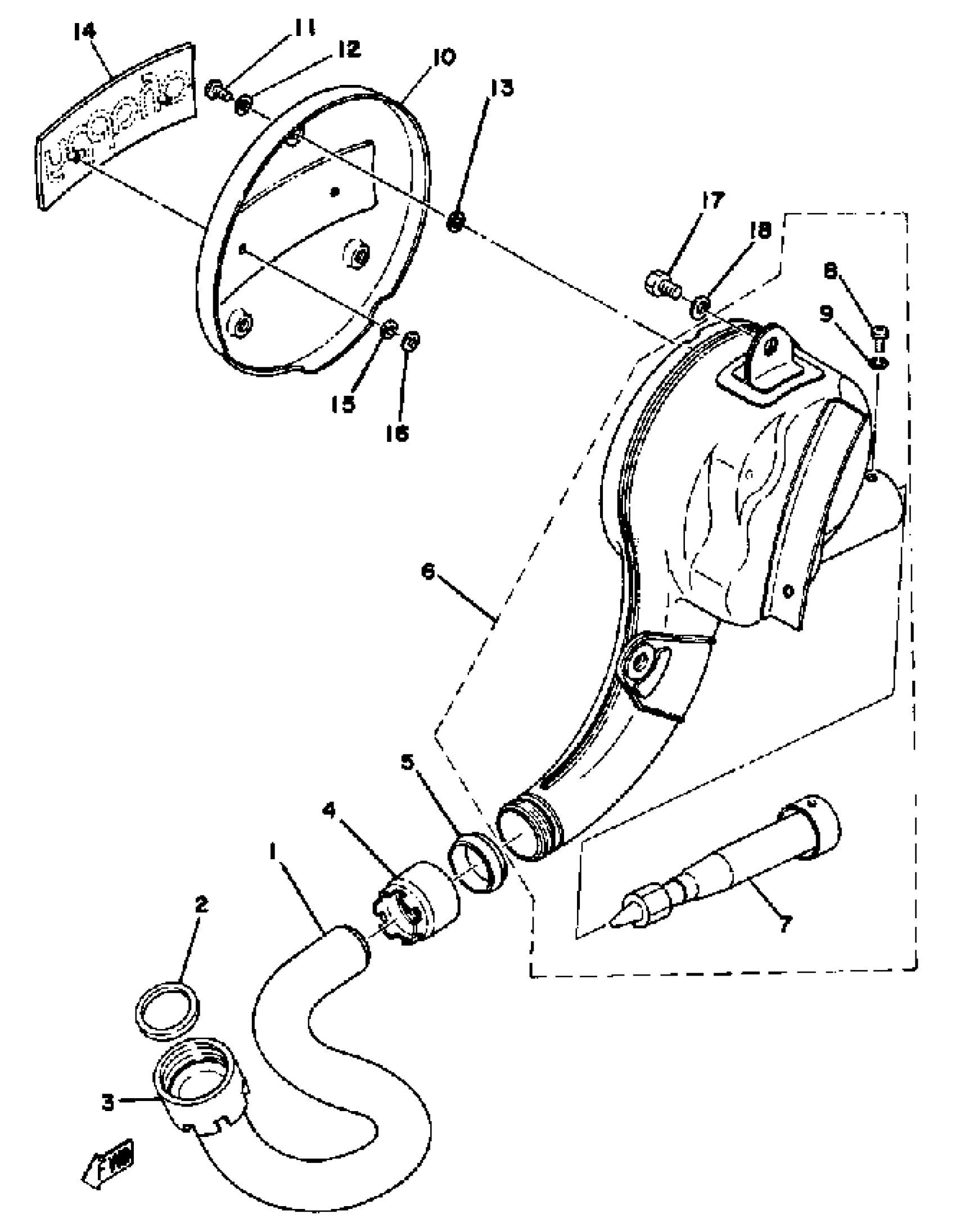

Yamaha LB50PG (LB50P) 1980 EXHAUST LB50PG - PH - PJ Diagram

#

Description
Price

1

PIPE, EXHAUST L

550-14611-01-00

Unavailable

2

GASKET, EXHAUST PIPE

3MT-14613-00-00

$8.92

3

NUT, RING

1L4-14612-00-00

$12.71

4

NUT, MUFFLER JOINT

395-14713-00-00

Unavailable

5

GASKET, MUFFLER

3NA-14714-01-00

Unavailable

6

MUFFLER ASSEMBLY L

2U7-14710-00-00

Unavailable

7

PIPE, OUTLET

(1F7-14752-00-00)

Unavailable

8

SCREW, PAN HEAD(6A3)

97885-06008-00

$1.07

9

WASHER, SPRING

92995-06100-00

$2.95

10

PROTECTOR, MUFFLER

439-14718-01-00

$55.71

11

SCREW, BIND(1JK)

98980-06010-00

$5.47

12

WASHER, PLATE(3MB)

90202-05187-00

$1.01

13

WASHER, PLATE(3AJ)

90202-05191-00

$5.77

14

EMBLEM, PROTECTOR

439-14729-00-00

$51.08

15

WASHER PLATE 174283160000

90202-04003-00

$6.23

16

NUT SPRING 116283170100

90183-04005-00

Unavailable

17

BOLT(JA9)

90101-08691-00

Unavailable

18

.. WASHER, PLATE

92990-08600-00

$2.17
