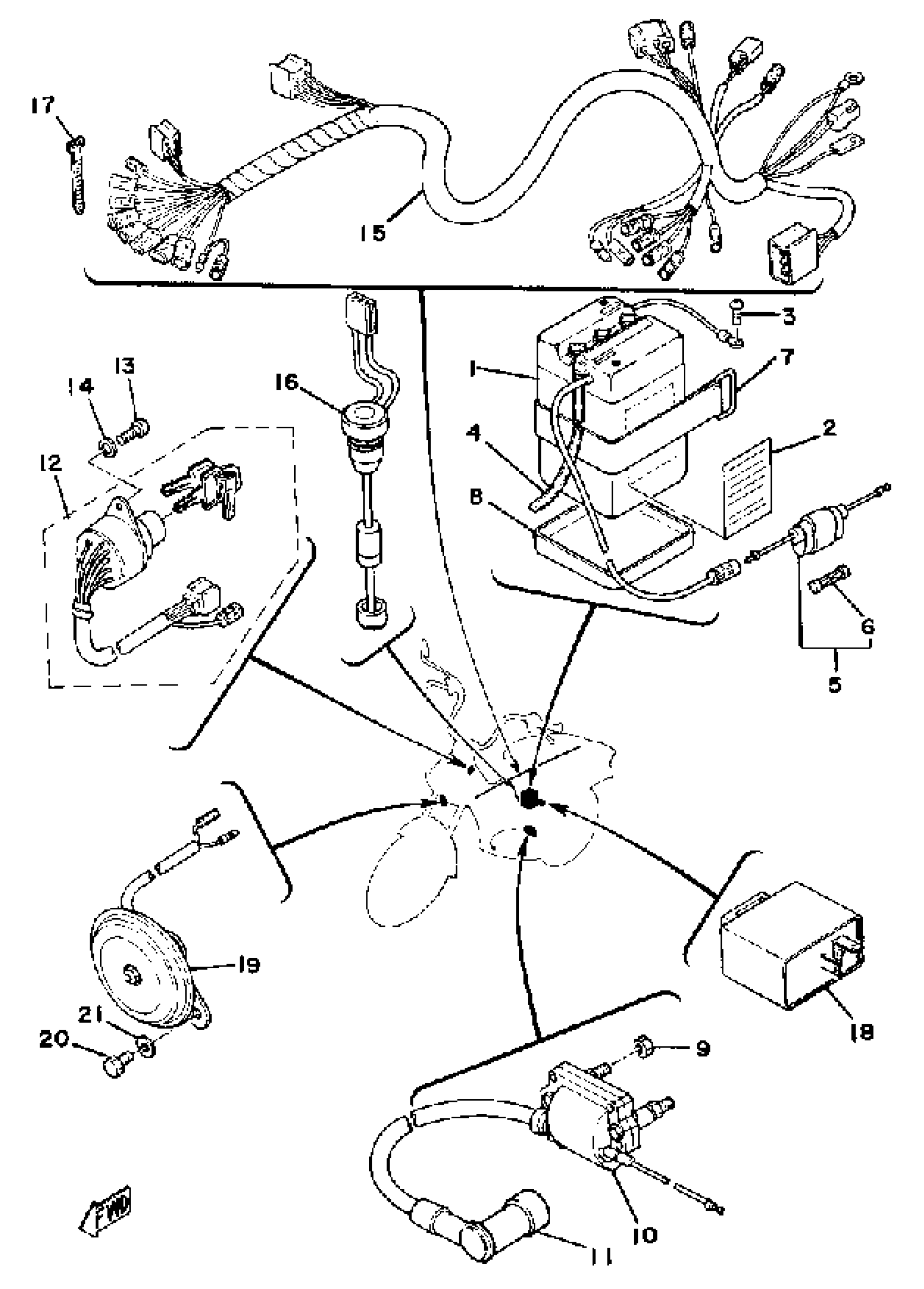

Yamaha LB50PG (LB50P) 1980 ELECTRICAL 1 LB50PG Diagram

#

Description
Price

1

6N4-2A-2 GS BATTERY

6N4-2A200-00-00

Unavailable

2

LABEL, BATTERY

40A-82141-G0-00

Unavailable

3

SCREW PAN HEAD

98580-06010-00

$8.49

4

HOSE

(90445-08247-00)

Unavailable

5

FUSE HOLDER ASSY

55K-82150-02-00

$14.49

6

FUSE

1A0-82151-00-00

$16.49

7

BAND, BATTERY

26L-82131-00-00

$7.99

8

SEAT, BATTERY

268-82122-00-00

Unavailable

9

NUT, HEXAGON

95380-06600-00

Unavailable

10

IGNITION COIL ASSY

355-82310-40-00

Unavailable

11

PLUG CAP ASSY

56J-82370-00-00

$64.99

12

MAIN SWITCH ASSY

2F7-82510-50-00

Unavailable

13

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

14

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

15

WIRE HARNESS ASSEMBLY

(2U7-82590-20-00)

Unavailable

16

OIL LVL GUAGE ASY

4L0-85720-00-00

Unavailable

17

BAND, SWITCH CORD

437-83936-01-00

Unavailable

18

FLASHER RELAY ASSEMBLY

2F7-83350-60-00

Unavailable

19

HORN

2A7-83371-10-00

Unavailable

20

BOLT (661)

97013-06012-00

Unavailable

21

WASHER, SPRING

92995-06100-00

Unavailable
