Description

Price

1

CRANKSHAFT ASSEMBLY

(3E4-11400-00-00)

Unavailable

2

CRANK 1

(517-11412-03-00)

Unavailable

3

PIN, CRANK 1

257-11681-10-00

$29.99

4

BEARING, CYLINDRICAL(3TU)

93310-418C4-00

$48.99

5

ROD, CONNECTING

3R1-11651-01-00

$125.99

6

CRANK 2

(520-11422-01-00)

Unavailable

7

PISTON STD (STD)

353-11631-22-96

Unavailable

7

PISTON 1 O/S 0.25 (1ST O/S 0.25MM)

353-11635-22-00

Unavailable

7

PISTON 2 O/S 0.50 (2ND O/S 0.50MM)

353-11636-22-00

Unavailable

8

PISTON RING SET (STD)

260-11601-02-00

$64.99

8

PISTON RING SET (1ST O/S)

260-11601-12-00

Unavailable

8

PISTON RING SET (2ND O/S)

260-11601-22-00

Unavailable

9

CIRCLIP 132116340000

93450-13022-00

$8.49

10

PIN, PISTON

517-11633-00-00

$16.49

11

BRG,CYL-CAL ROLLER 5G TM

93310-11268-00

$35.99

12

KEY WOODRUFF 146115450000

90280-03017-00

Unavailable

13

WASHER, PLATE(663)

92990-12600-00

Unavailable

14

YBS67-12 WASHER,SPRING

92990-12100-00

Unavailable

15

NUT(3DM)

95304-12600-00

Unavailable

16

O-RING(3KX)

93210-180A6-00

Unavailable

17

COLLAR (132-16136-01)

90387-20345-00

Unavailable

18

BEARING(1GJ)

93306-20458-00

Unavailable

19

OIL SEAL (20X35X7-136)

93102-20009-00

Unavailable

20

OIL SEAL (28X40X8-132)

93103-28011-00

Unavailable

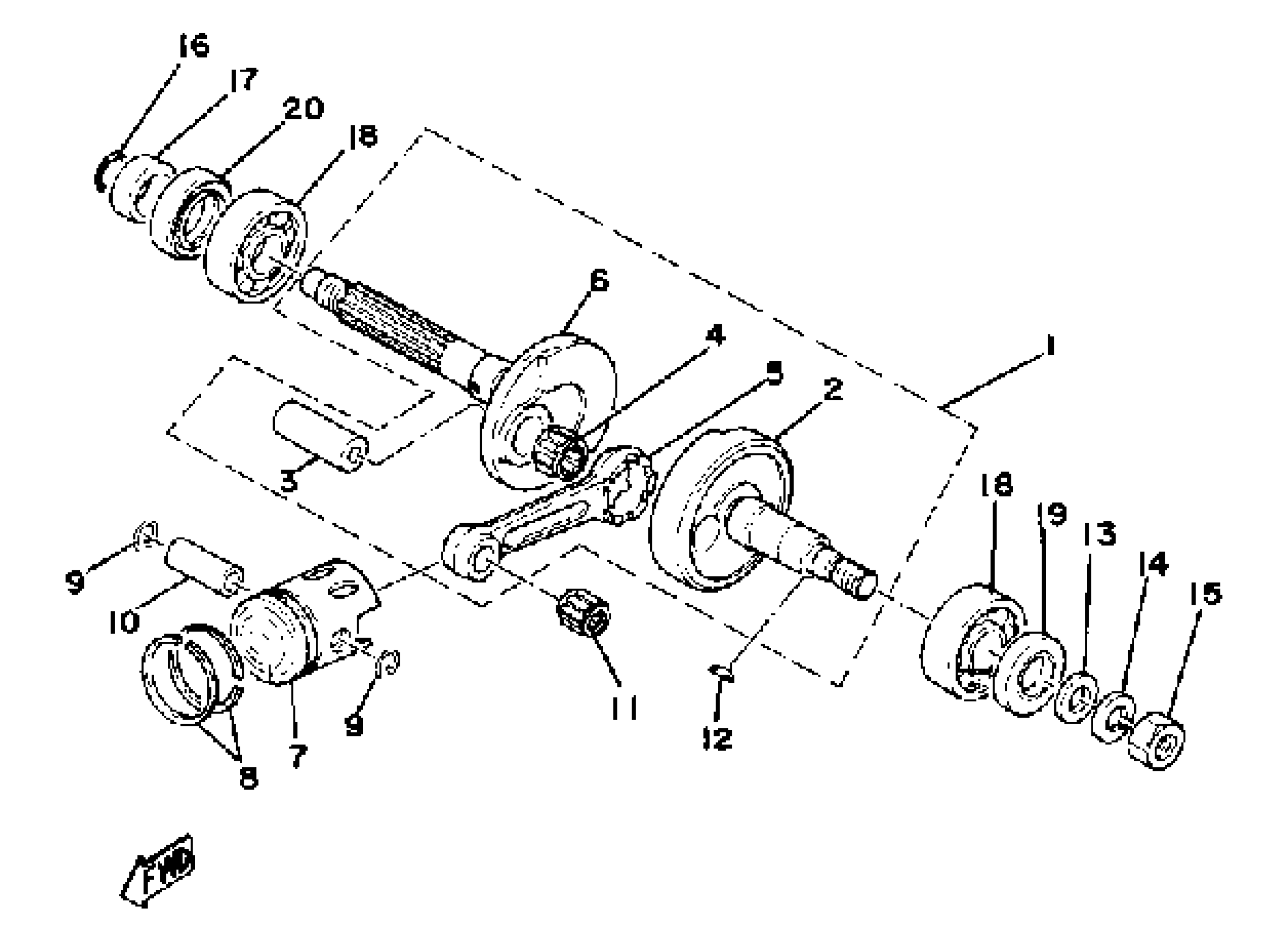

Yamaha LB50PG (LB50P) 1980 CRANKSHAFT - PISTON LB50PG - PH - PJ Diagram

CRANKSHAFT ASSEMBLY

CRANK 1

PIN, CRANK 1

BEARING, CYLINDRICAL(3TU)

ROD, CONNECTING

CRANK 2

PISTON STD (STD)

PISTON 1 O/S 0.25 (1ST O/S 0.25MM)

PISTON 2 O/S 0.50 (2ND O/S 0.50MM)

PISTON RING SET (STD)

PISTON RING SET (1ST O/S)

PISTON RING SET (2ND O/S)

CIRCLIP 132116340000

PIN, PISTON

BRG,CYL-CAL ROLLER 5G TM

KEY WOODRUFF 146115450000

WASHER, PLATE(663)

YBS67-12 WASHER,SPRING

NUT(3DM)

O-RING(3KX)

COLLAR (132-16136-01)

BEARING(1GJ)

OIL SEAL (20X35X7-136)

OIL SEAL (28X40X8-132)
