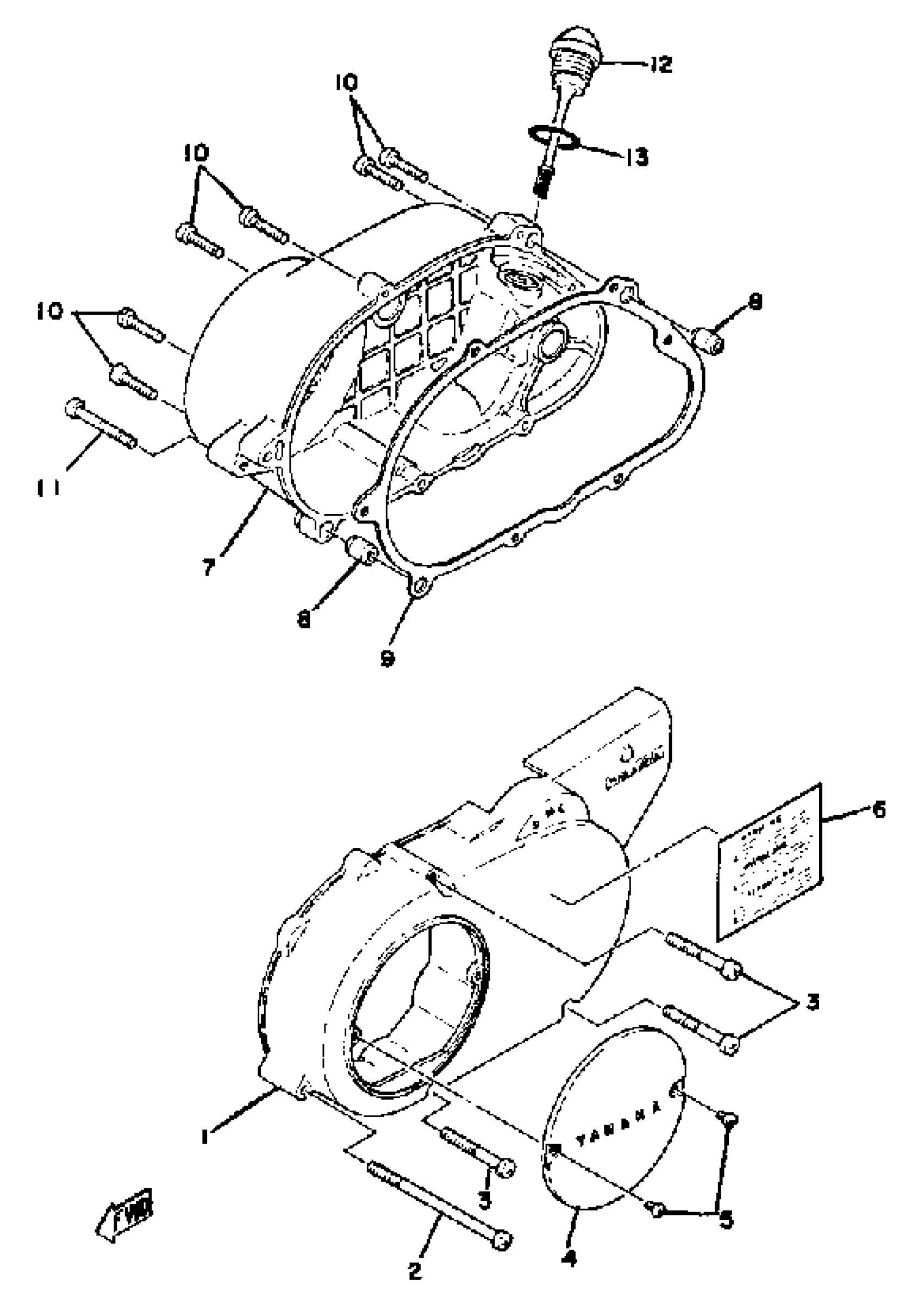

Yamaha LB50PG (LB50P) 1980 CRANKCASE COVER LB50PH - PJ Diagram

. COVER, CRANKCASE L

4F4-15411-01-00

Unavailable

SCREW PAN HEAD

98580-06545-00

$5.55

SCREW, PAN

98507-06100-00

$6.34

SCREW PAN HEAD

98580-06545-00

$5.55

COVER, GENERATOR (1)

164-15415-00-00

$20.56

SCREW, PAN HEAD(3XP)

98517-04006-00

$3.86

LABEL, WARNING (386 ENGLAND)

591-15435-00-00

$6.26

COVER, CRANK CASE (R.H)

384-15421-01-00

$78.12

PIN, DOWEL(3VD)

99530-10114-00

$2.13

GASKET, CRANKCASE COVER 1

296-15451-03-00

$24.53

SCREW, PAN HEAD (76T)

98517-06025-00

$2.90

SCREW PAN HEAD

98580-06040-00

$5.75

PLUG, OIL

439-15363-01-00

Unavailable

O-RING

93210-21190-00

$5.37
