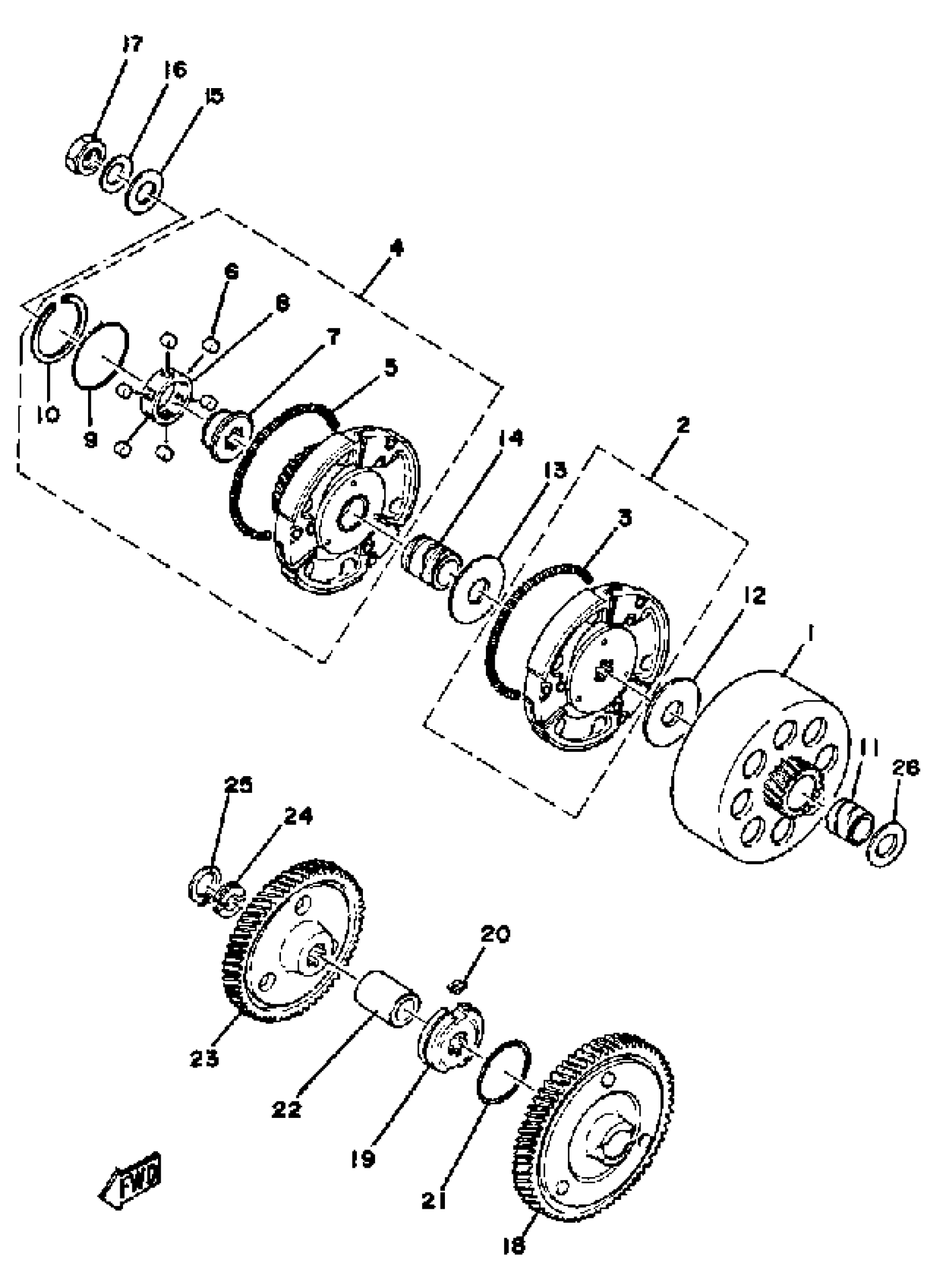

Yamaha LB50PG (LB50P) 1980 CLUTCH LB50PG - PH - PJ Diagram

#

Description

Price

1

PRI DRV GEAR ASSEMBLY

(384-16110-00-00)

Unavailable

2

CLUTCH CARRIER ASSEMBLY

384-16620-02-00

Unavailable

3

SPRING, TENSION

(90506-12025-00)

Unavailable

4

CLUTCH CARRIER ASSEMBLY

439-16630-00-00

Unavailable

5

SPRING, TENSION

(90506-12139-00)

Unavailable

6

PIN, DOWEL

93606-06091-00

Unavailable

7

BOSS, CLUTCH HSNG

296-16512-00-00

Unavailable

8

CAGE

(384-16586-01-00)

Unavailable

9

SPRING TORSION 2J

90508-10739-00

Unavailable

10

CIRCLIP, INNER

(93450-41030-00)

Unavailable

11

SPACER

(90560-15119-00)

Unavailable

12

WASHER, PLATE

(90201-16250-00)

Unavailable

13

WASHER, PLATE

(90201-16250-00)

Unavailable

14

SPACER

(90560-15120-00)

Unavailable

15

WASHER, PLATE(3RR)

90201-133P2-00

$8.49

16

WASHER, CONICAL SPR (384-16119-00)

90208-13016-00

Unavailable

17

NUT, SPEC''L SHAPE

90179-13073-00

Unavailable

18

PRI DRVN GEAR

(1F5-16170-00-00)

Unavailable

19

BOSS, ONEWAY

517-16180-00-00

Unavailable

20

PAWL, ONE WAY

384-15635-00-00

Unavailable

21

SPRING, PAWL

2T4-15637-01-00

Unavailable

22

COLLAR, DISTANCE

(1L4-16176-00-00)

Unavailable

23

PRI DRVN GEAR (59T)

386-16150-01-00

Unavailable

24

HOLDER, KICK GEAR

137-15654-00-00

Unavailable

25

CIRCLIP(1AR)

99009-20400-00

Unavailable

26

PLATE, THRUST 2

(384-16164-00-00)

Unavailable
