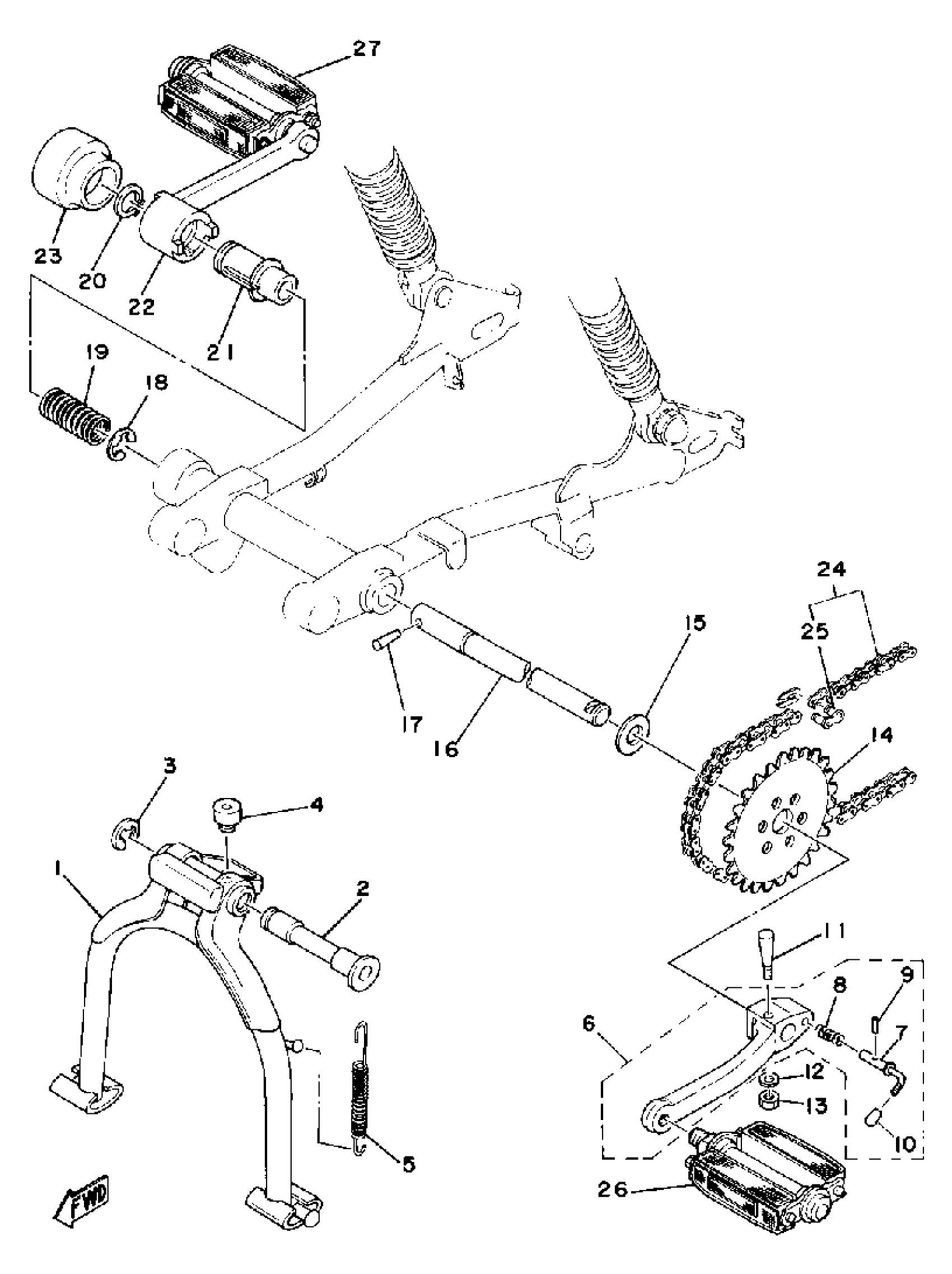

Yamaha LB50PE (LB50P) 1978 STAND-CRANK PEDAL Diagram

#

Description
Price

1

STAND, MAIN

1F1-27111-01-00

Unavailable

2

SHAFT, MAIN STAND

439-27112-00-00

Unavailable

3

CIRCLIP (122)

93430-12008-00

$8.49

4

STOPPER

1M3-27114-00-00

$8.99

5

SPRING, TENSION (1L9)

90506-26270-00

$15.99

6

CRANK, PEDAL

1F1-27810-00-00

Unavailable

7

. LEVER, CRANK PEDAL

1F1-27815-00-00

Unavailable

8

. SPRING, COMPRESSION

90501-08460-00

Unavailable

9

PIN, SPRING

91690-30014-00

Unavailable

10

. KNOB, TRANS SHIFT

283-17496-00-00

Unavailable

11

PIN, SPEC''L SHAPE

90249-06005-00

Unavailable

12

WASHER, PLAIN (646)

92990-06600-00

$2.80

13

NUT, HEXAGON

95380-06600-00

Unavailable

14

SPROCKET, PEDAL

1F1-27828-00-00

Unavailable

15

958-58204-00 WASHER,PLAIN

92990-16200-00

$8.49

16

AXLE, PEDAL

1F1-27812-00-00

Unavailable

17

PIN, TAPERED

90251-07001-00

Unavailable

18

CIRCLIP, E-TYPE

99001-15600-00

Unavailable

19

SPRING, COMPRESSION (283-27825-00)

90501-20132-00

Unavailable

20

CIRCLIP (4L0)

93440-25084-00

Unavailable

21

PIPE, SHAFT

1F1-27824-00-00

Unavailable

22

PEDAL, CRANK R

(283-27821-00-00)

Unavailable

23

COVER, PEDAL

283-27826-00-00

Unavailable

24

JOINT, CHAIN

94504-10078-00

Unavailable

25

. JOINT CHAIN

94604-10001-00

Unavailable

26

PEDAL ASSEMBLY L

1F1-27850-00-00

Unavailable

27

PEDAL ASSEMBLY R

1F1-27860-00-00

Unavailable
