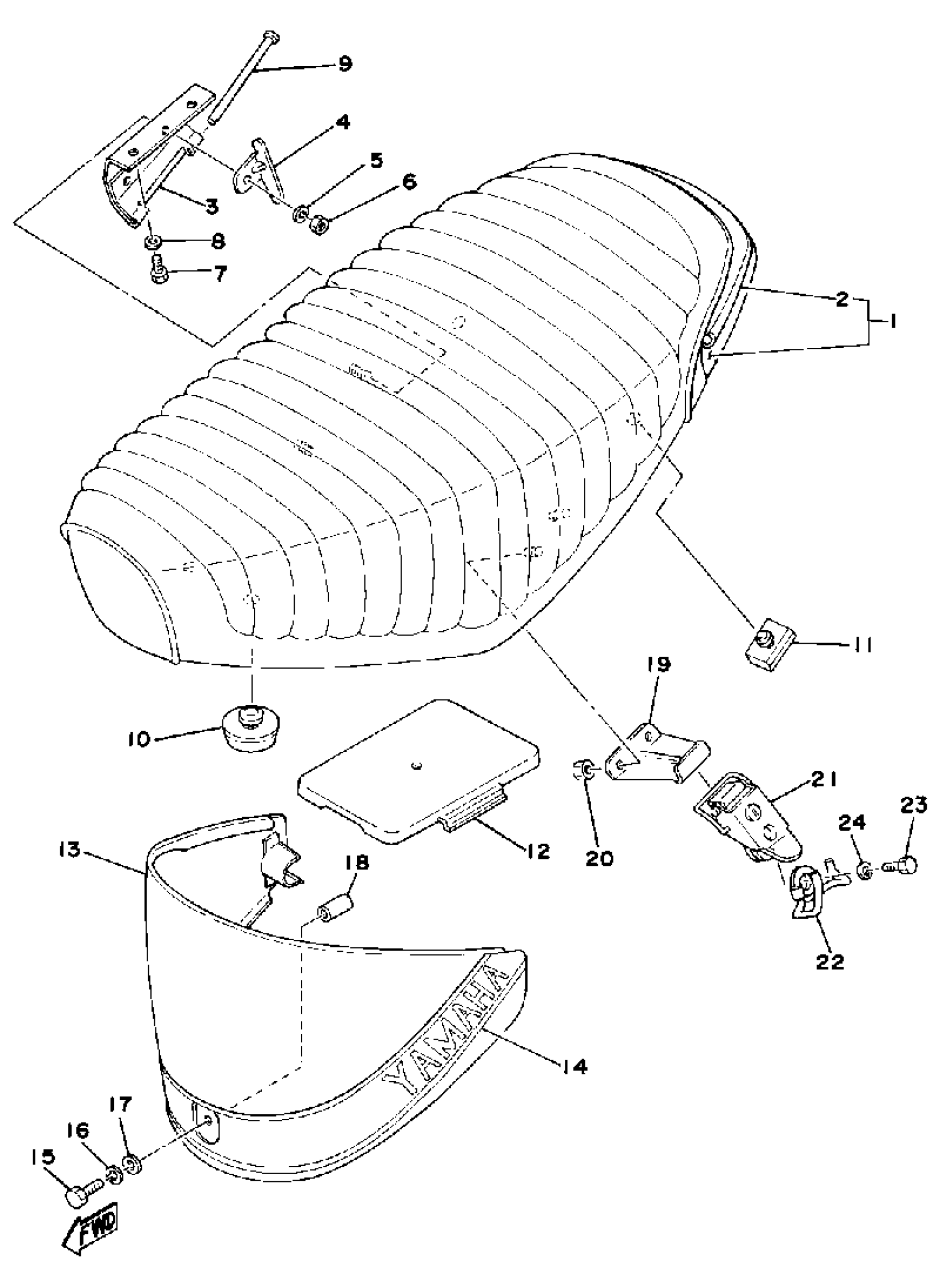

Yamaha LB50PE (LB50P) 1978 SEAT-UNDER COVER Diagram

#

Description
Price

1

SINGLE SEAT ASSEMBLY

1L4-W2471-01-00

Unavailable

2

. COVER, SINGLE SEAT

1L4-24711-01-00

Unavailable

3

HINGE, SEAT

(561-24726-00-00)

Unavailable

4

STOPPER

(561-24768-02-00)

Unavailable

5

WASHER, SPRING

92995-06100-00

Unavailable

6

NUT, HEXAGON

95380-06600-00

Unavailable

7

BOLT (661)

97013-06012-00

$5.60

8

WASHER, PLAIN (646)

92990-06600-00

$2.80

9

PIN

1K8-24774-00-00

Unavailable

10

PAD, SEAT

1L9-24741-00-00

$9.99

11

DAMPER, SEAT

214-24724-00-00

$7.99

12

LID

395-28185-00-00

Unavailable

13

COVER

(561-24796-01-26)

Unavailable

13

COVER

(561-24796-01-E1)

Unavailable

14

EMBLEM, COVER

561-21783-00-00

Unavailable

15

BOLT(3RV)

97014-06035-00

Unavailable

16

WASHER, SPRING

(90204-05001-00)

Unavailable

17

WASHER, PLAIN (646)

92990-06600-00

$2.80

18

COLLAR(1AE)

90387-060N3-00

Unavailable

19

BRACKET, SEAT

(1F1-24728-00-00)

Unavailable

20

NUT, HEXAGON

95380-06600-00

Unavailable

21

SEAT LEVER ASSY

1K8-24705-00-00

Unavailable

22

HOOK, HELMET

341-24818-02-00

Unavailable

23

BOLT, HEXAGON

97017-06025-00

Unavailable

24

WASHER, PLAIN (646)

92990-06600-00

$2.80
