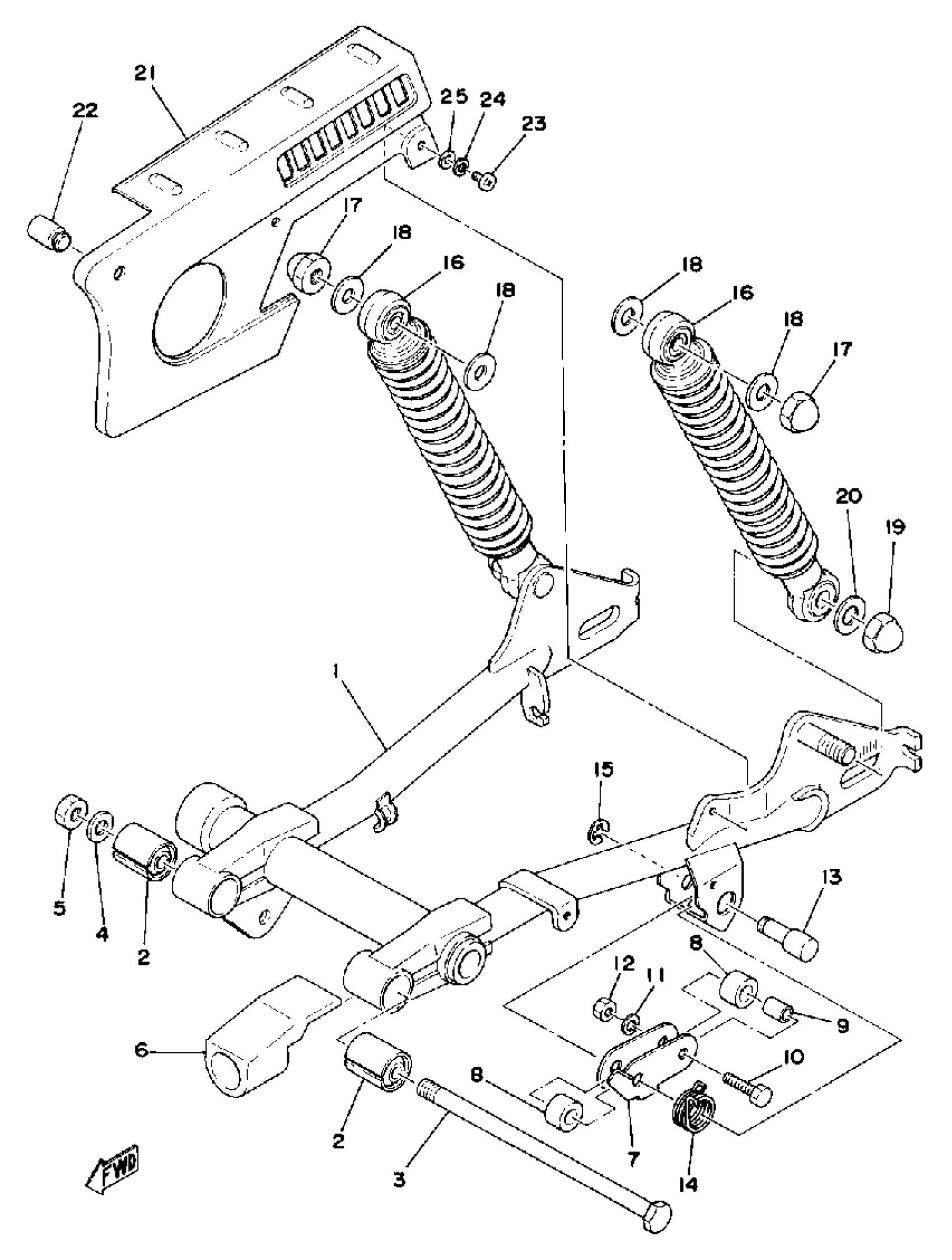

Yamaha LB50PE (LB50P) 1978 REAR ARM-REAR CUSHION-CHAIN CASE Diagram

#

Description
Price

1

REAR ARM

(1F1-22110-10-33)

Unavailable

2

BUSH 1

102-22123-00-00

Unavailable

3

AXLE, WHEEL

3XG-F5181-00-00

$4.21

4

WASHER PLATE 341222430000

90201-10142-00

$4.82

5

NUT, U

95617-10100-00

$8.49

6

SEAL, GUARD

(550-22151-00-00)

Unavailable

7

ARM, TENSIONER

(550-22179-00-00)

Unavailable

8

TENSIONER

(550-22178-00-00)

Unavailable

9

COLLAR

(90387-06268-00)

Unavailable

10

BOLT, HEXAGON

97017-06025-00

$4.24

11

WASHER, SPRING

92995-06100-00

Unavailable

12

NUT(650)

95380-06700-00

$8.49

13

SHAFT 2

(1F1-22122-00-00)

Unavailable

14

SPRING, TORSION

(90508-20300-00)

Unavailable

15

CIRCLIP(2R6)

99001-08600-00

$8.49

16

SHOCK ABSORBER ASSY

561-22210-22-00

Unavailable

17

NUT CROWN(663)

95380-12800-00

Unavailable

18

WASHER, PLATE (4N0)

90201-126A7-00

Unavailable

19

NUT CROWN(663)

95380-12800-00

Unavailable

20

WASHER, PLATE (4N0)

90201-126A7-00

Unavailable

21

CASE, CHAIN

550-22311-00-35

Unavailable

22

DAMPER, CHAIN CASE

550-22332-00-00

Unavailable

23

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

24

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

25

. WASHER, PLAIN

92990-05200-00

Unavailable
