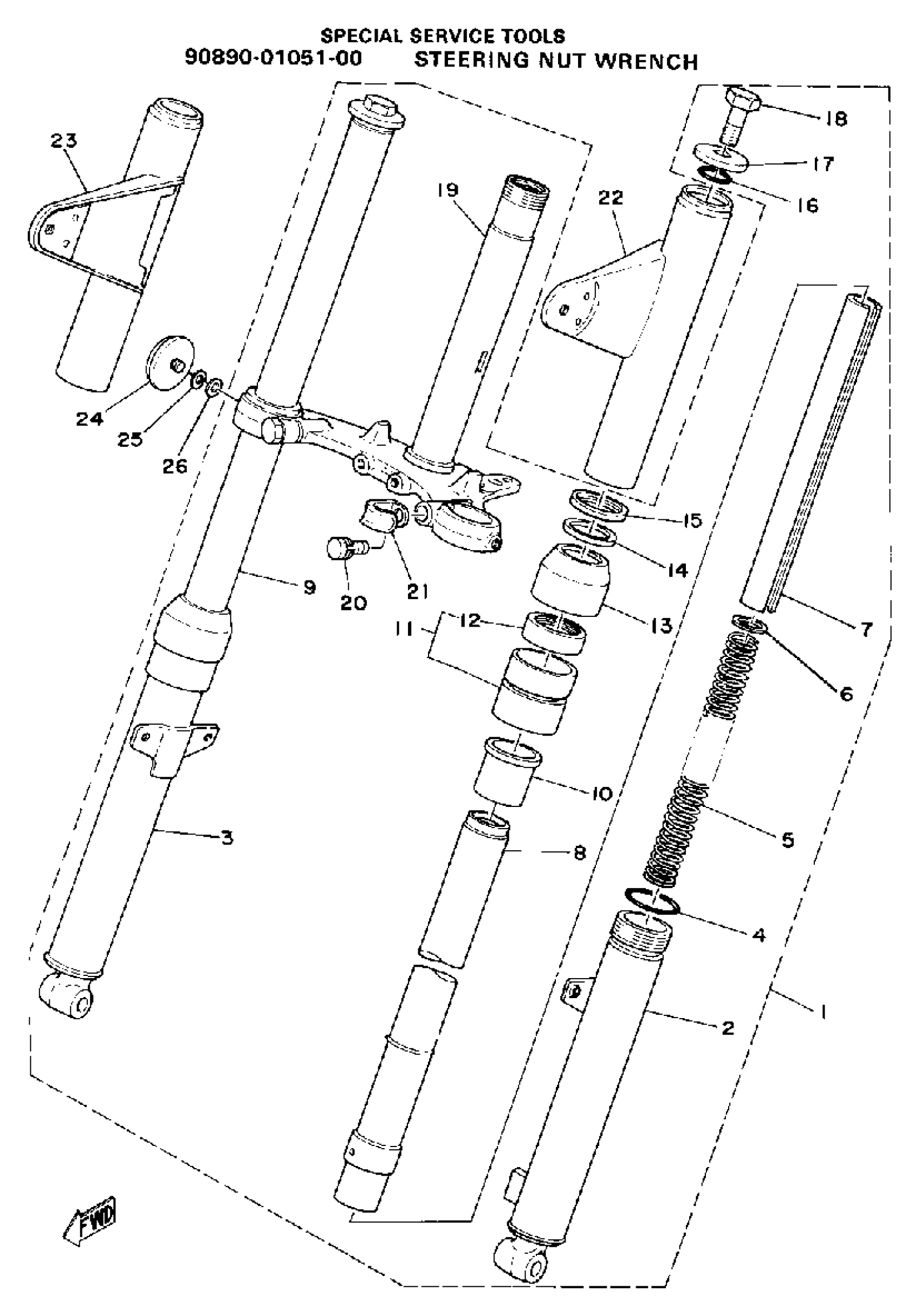

Yamaha LB50PE (LB50P) 1978 FRONT FORK Diagram

#

Description

Price

1

FRONT FORK ASSEMBLY

(1J9-23101-00-00)

Unavailable

2

TUBE, OUTER 1

(2T5-23126-00-35)

Unavailable

3

TUBE, OUTER 2

(2T5-23136-00-35)

Unavailable

4

O-RING

207-23147-00-00

$11.99

5

SPRING, FRONT FORK

(2T5-23141-00-00)

Unavailable

6

WASHER, SPRING UPR

(290-23149-00-00)

Unavailable

7

SPACER, OIL LOCK

(2T5-23166-00-00)

Unavailable

8

. TUBE, INNER 1

439-23124-00-00

Unavailable

9

TUBE,INNER 2

439-23134-00-00

Unavailable

10

. METAL, SLIDE 1

109-23125-00-00

Unavailable

11

. OUTER NUT

290-23150-01-00

Unavailable

12

OIL SEAL

109-23145-01-00

$31.99

13

SEAL, DUST

290-23144-00-00

$23.99

14

PACKING(LAMP STAY)

164-23163-00-00

$6.99

15

GUIDE, COVER UPPER

(354-23115-90-00)

Unavailable

16

GASKET

307-23114-00-00

Unavailable

17

WASHER, CAP

207-23112-00-00

Unavailable

18

. BOLT, CAP

395-23111-00-00

Unavailable

19

. UNDER BRACKET

2T5-23340-00-33

Unavailable

20

BOLT 1

(1M3-23346-00-00)

Unavailable

21

. HOLDER, CABLE 1

260-23318-40-00

Unavailable

22

COVER, UPPER 1

439-23121-00-26

Unavailable

22

COVER, UPPER 1

439-23121-00-E1

Unavailable

23

COVER, UPPER 2

439-23131-00-26

Unavailable

23

COVER, UPPER 2

439-23131-00-E1

Unavailable

24

REFLECTOR, FRONT 1

355-85111-01-00

Unavailable

25

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

26

. WASHER, PLAIN

92990-05200-00

Unavailable
