Description

Price

1

FLYWHL MAGNETO ASSEMBLY

(2U7-81300-20-00)

Unavailable

2

ROTOR ASSEMBLY

(520-81350-20-00)

Unavailable

3

BASE, MAGNETO

520-81309-20-00

Unavailable

4

. COIL, SOURCE

2U7-81312-21-00

Unavailable

5

. COIL, LIGHTING 1

2U7-81313-20-00

Unavailable

6

SCREW, PAN HEAD

98517-04025-00

Unavailable

7

. CONTACT BRKR ASSEMBLY

1V1-81321-90-00

Unavailable

8

SCREW, PAN HEAD

110-81346-21-00

$5.49

9

CONDENSER

1K8-81325-20-00

$63.99

10

. LUBRICATOR

116-81331-20-00

Unavailable

11

SCREW, PAN HEAD

110-81346-21-00

$5.49

12

CLAMP, LEAD

104-81328-20-00

$6.99

13

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

14

GROMMET (14L)

90480-16304-00

$7.49

15

LEAD WIRE ASSEMBLY

(2F7-81315-21-00)

Unavailable

16

SCREW, FLAT

98707-05016-00

Unavailable

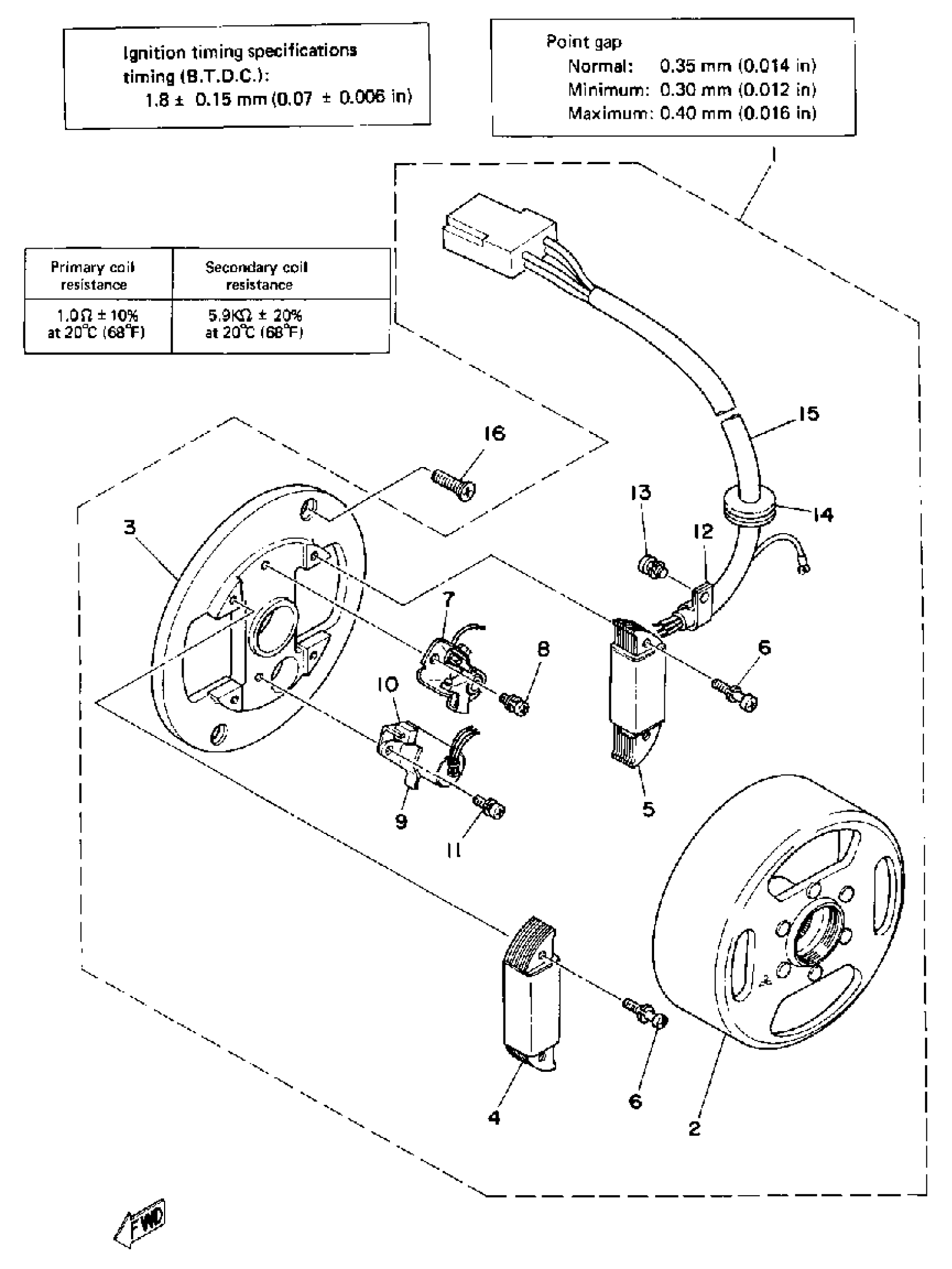

Yamaha LB50PE (LB50P) 1978 FLYWHEEL MAGNETO Diagram

FLYWHL MAGNETO ASSEMBLY

ROTOR ASSEMBLY

BASE, MAGNETO

. COIL, SOURCE

. COIL, LIGHTING 1

SCREW, PAN HEAD

. CONTACT BRKR ASSEMBLY

SCREW, PAN HEAD

CONDENSER

. LUBRICATOR

SCREW, PAN HEAD

CLAMP, LEAD

SCREW, PAN HEAD(3XP)

GROMMET (14L)

LEAD WIRE ASSEMBLY

SCREW, FLAT
