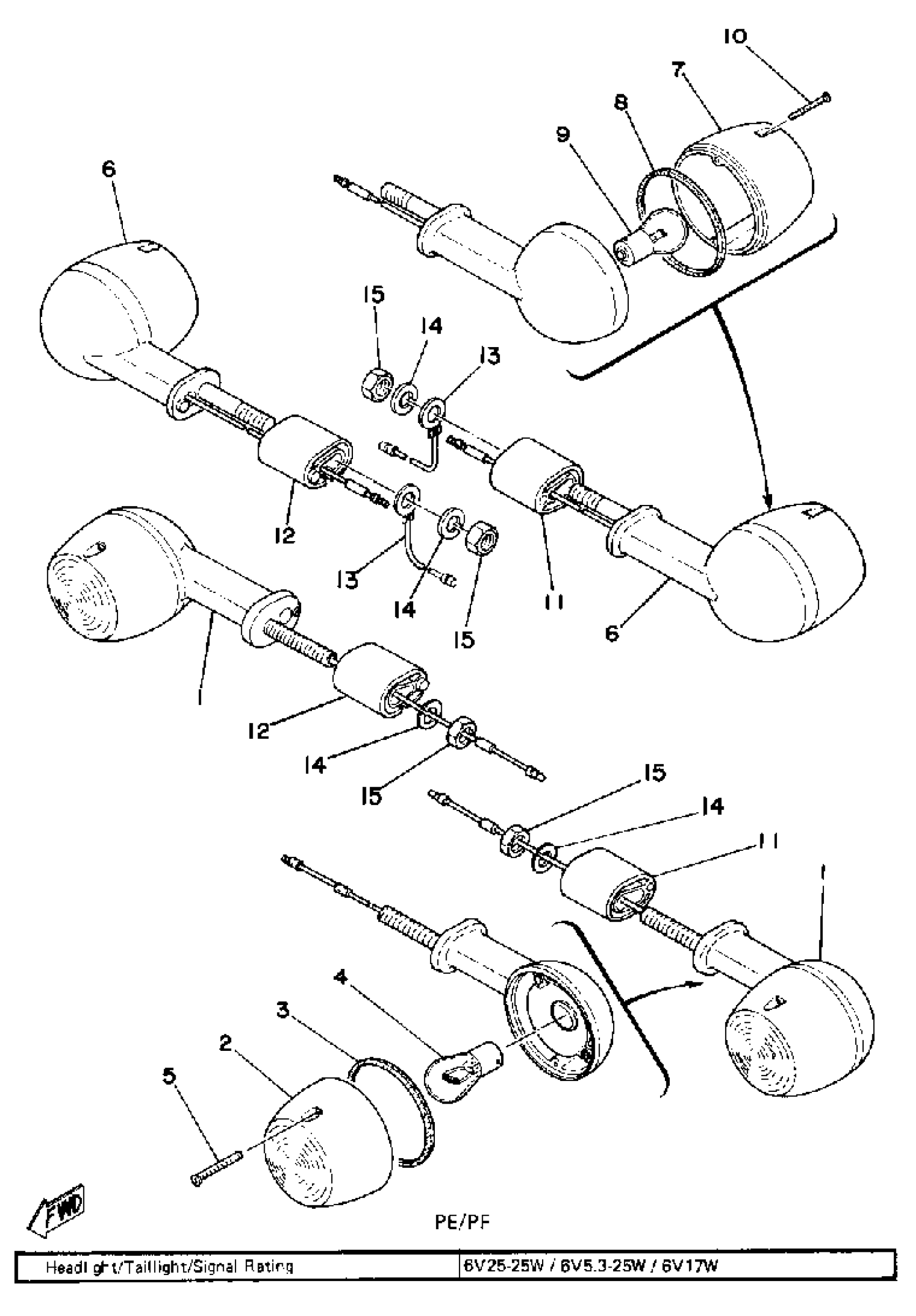

Yamaha LB50PE (LB50P) 1978 FLASHER LAMP Diagram

#

Description
Price

1

FRT FLSHR LITE ASSEMBLY

542-83310-60-93

Unavailable

2

LENS, FLASHER

183-83312-70-00

Unavailable

3

GASKET,FLASHER LANS

183-83313-70-00

Unavailable

4

BULB,FLASHER(6V18W)

115-83311-60-00

Unavailable

5

SCREW, LENS FITTING (3X32)

183-83333-71-00

$8.99

6

R FLSHR LITE ASSEMBLY

260-83310-30-93

Unavailable

7

. LENS, REAR RED FLASHER

211-83332-75-00

Unavailable

8

GASKET,FLASHER LANS

183-83313-70-00

Unavailable

9

BULB,FLASHER(6V18W)

115-83311-60-00

Unavailable

10

SCREW, LENS FITTING (3X32)

183-83333-71-00

$8.99

11

COLLAR, FLASHER 1

260-83316-30-00

Unavailable

12

COLLAR, FLASHER 2

260-83326-30-00

Unavailable

13

WIRE, EARTH (GROUND)

256-84313-01-00

Unavailable

14

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

15

NUT(6L2)

95333-08600-00

$2.49
