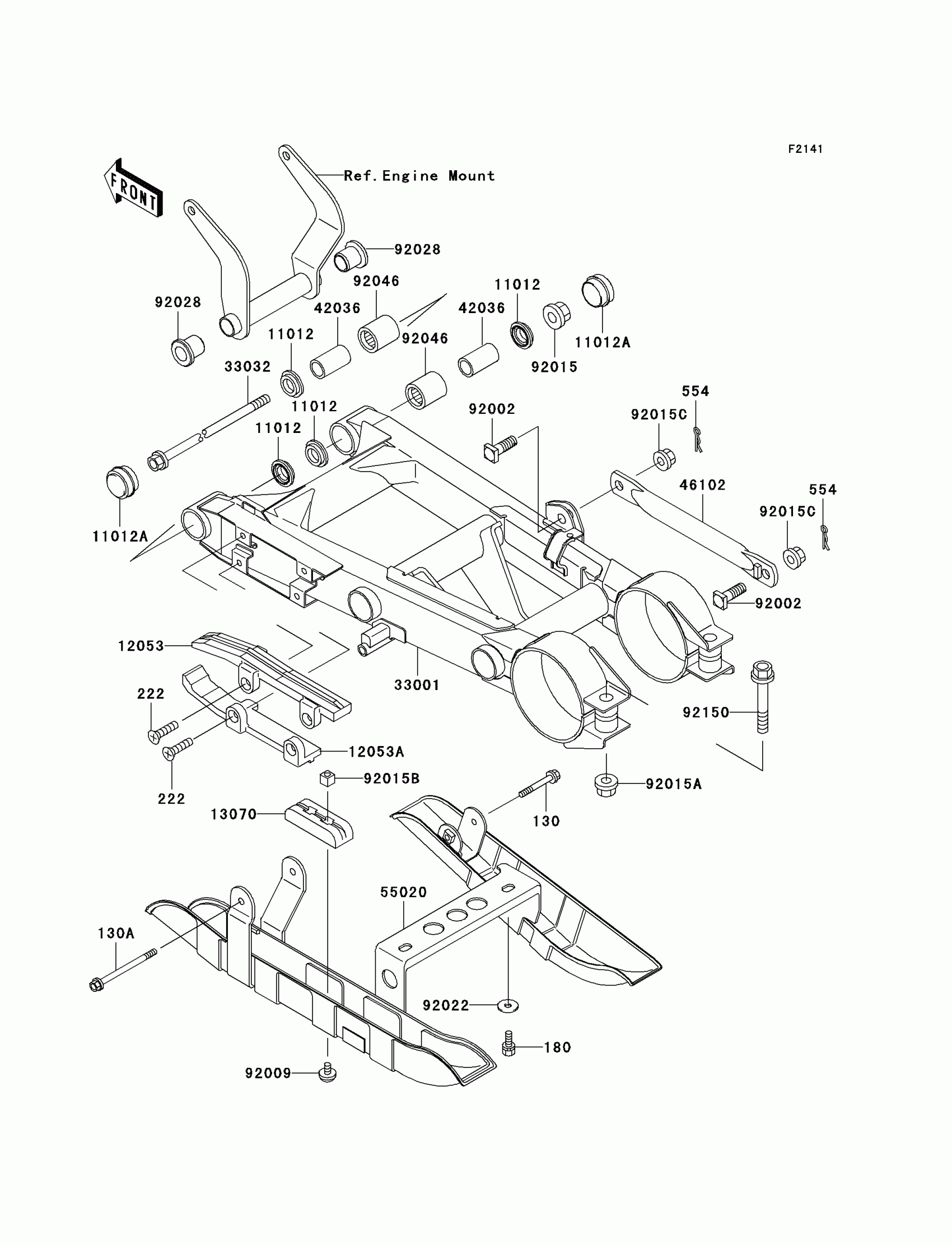

Find the part on the Swingarm diagram for your 2003 Kawasaki Lakota Sport, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2003 Kawasaki Lakota Sport Swingarm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X40

130G0640

1
Out of stock

130A

BOLT-FLANGED

130G0680

1
Out of stock

180

BOLT-UPSET-WS,6X14

180G0614

1
Out of stock

222

SCREW-CSK-RD-CROS,6X12

222B0612

1
Out of stock

554

PIN-SNAP,10MM

554A1000

1
Out of stock

11012

CAP,SWING ARM

11012-1259

1
Out of stock

11012A

CAP,SWING ARM

11012-1520

1
Out of stock

12053

GUIDE-CHAIN,UPP

12053-1194

1
Out of stock

12053A

GUIDE-CHAIN,LWR

12053-1195

1
Out of stock

13070

GUIDE,CHAIN

13070-1156

1
Out of stock

33001

ARM-COMP-SWING,SILVER NO.40

33001-1462-5A

1
Out of stock

33032

SHAFT-SWING ARM

33032-1139

1
Out of stock

42036

SLEEVE,SWING ARM

42036-1064

1
Out of stock

46102

ROD,TORQUE,SILVER NO.40

46102-1342-5A

1
Out of stock

55020

GUARD,CHAIN&DICS,SILVER

55020-1583-5A

1
Out of stock

92002

BOLT,10X28

92002-1733

1
Out of stock

92009

SCREW,6X10,WHITE

92009-1286

1
Out of stock

92015

NUT,14MM

92015-1407

1
Out of stock

92015A

NUT,12MM

92015-1426

1
Out of stock

92015B

NUT,6MM

92015-1452

1
Out of stock

92015C

NUT,LOCK,10MM

92015-1597

1
Out of stock

92022

WASHER,6.5X20X1.6

92022-1804

1
Out of stock

92028

BUSHING,SWING ARM

92028-1261

1
Out of stock

92046

BEARING-NEEDLE

92046-1128

1
Out of stock

92150

BOLT,FLANGED,12X62

92150-1842

1
Out of stock
