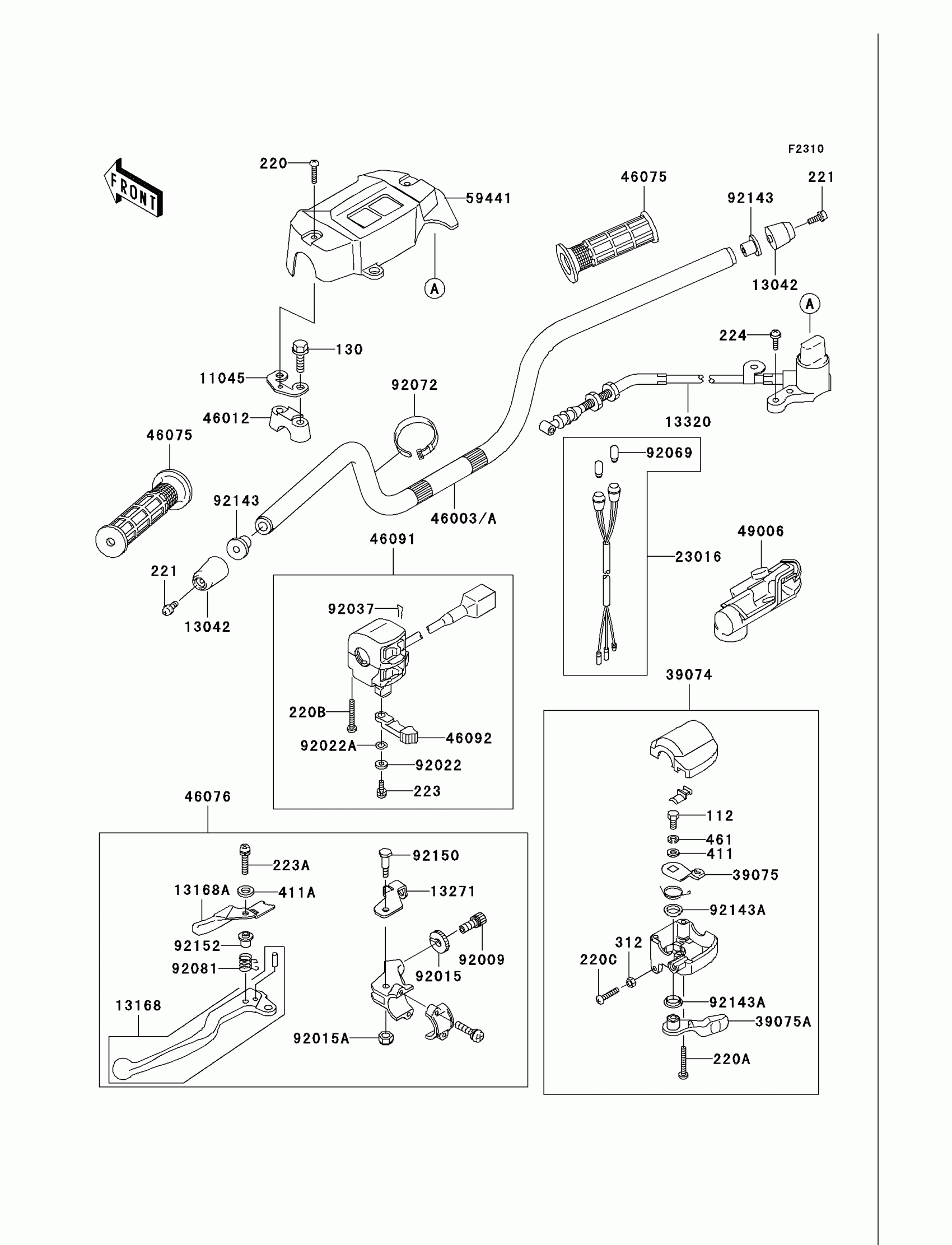

2003 Kawasaki Lakota Sport Handlebar Diagram
Find the part on the Handlebar diagram for your 2003 Kawasaki Lakota Sport, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
130
BOLT-FLANGED,8X60
130P0860
220
SCREW-PAN-CROS,4X20
220C0420
220A
SCREW-PAN-CROS,5X30
220C0530
221
SCREW-CSK-CROS
221C0650
13168A
LEVER,LOCK
13168-1673
13271
PLATE,LOCK
13271-1259
13320
LEVER-ASSY,REVERSE
13320-1010
39075A
LEVER-THROTTLE
39075-1059
92009
SCREW,CABLE ADJUST,8MM
92009-1435
92022
WASHER,5MM
92022-1837
92022A
WASHER,WAVE,5MM
92022-1838
92069
BULB,12V 3W,T7
92069-1020
92150
BOLT
92150-1420
223A
SCREW-PAN-WS-CROS
223C0520
224
SCREW-PAN-WP-CROS,5X20
224B0520
312
NUT-HEX,6MM,BLACK
312C0600
411A
WASHER-PLAIN,5MM,BLACK
411F0500
