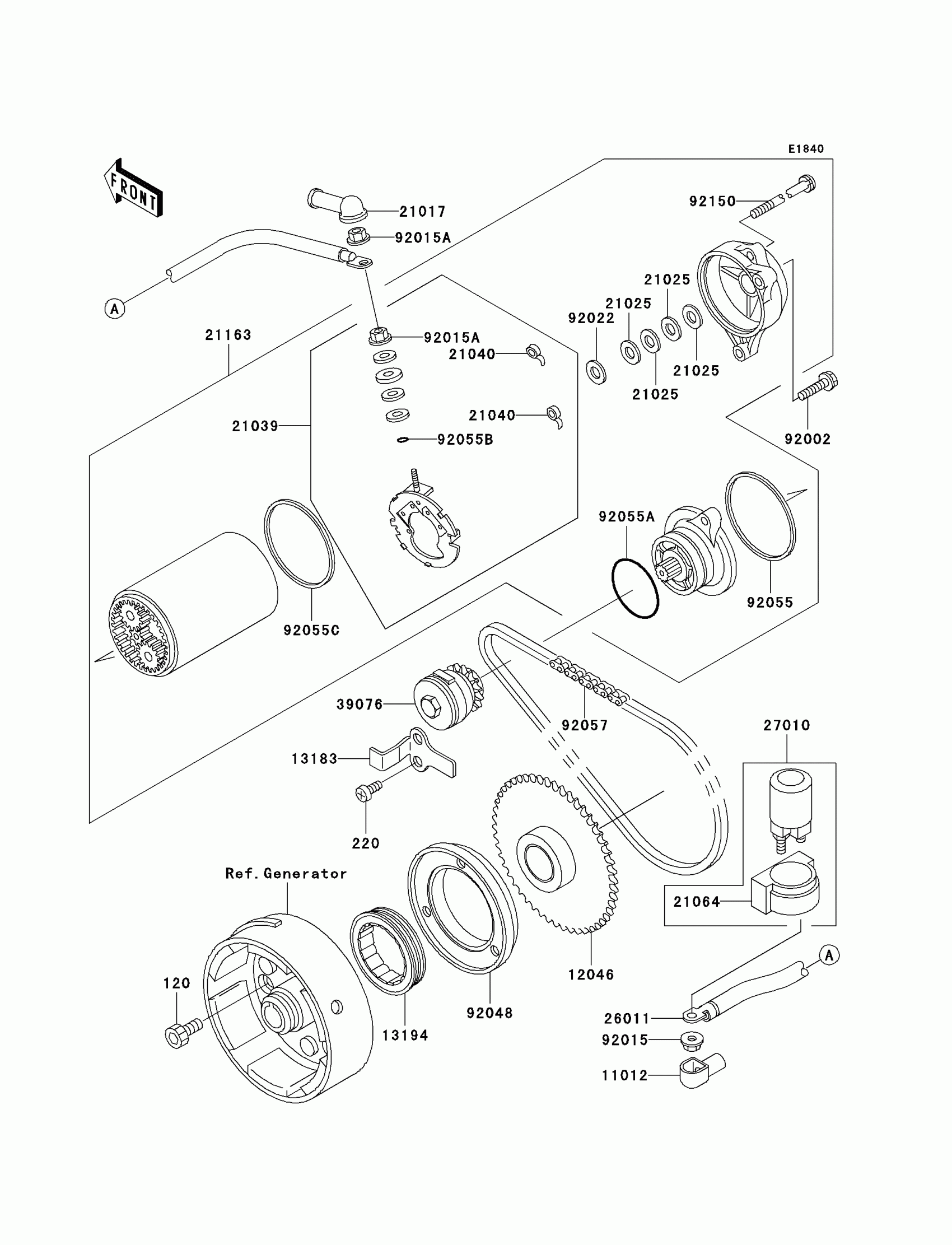

Kawasaki Lakota Sport Starter Motor Diagram

#

Description
Price

120

BOLT-SOCKET,8X16

120P0816

$4.15

220

SCREW PAN HEAD 6X12

220B0612

Unavailable

11012

CAP,TERMINAL

11012-1354

$10.19

12046

SPROCKET,STARTER

12046-1077

$76.41

13183

PLATE,STARTER CHAIN

13183-1002

$9.57

13194

CLUTCH-ONEWAY

13194-1091

Unavailable

21017

GROMMET,STARTER TERMINAL

21017-017

$9.43

21025

WASHER,9.1X18X0.2

21025-011

$6.22

21039

BRUSH,CARBON

21039-1063

$85.85

21040

SPRING-BRUSH

21040-1057

$8.42

21064

DAMPER,MAGNETIC SWITCH

21064-002

Unavailable

21163

STARTER-ELECTRIC

21163-1141

$518.40

26011

WIRE-LEAD,STARTER MOTOR

26011-1634

$71.23

27010

SWITCH,MAGNETIC

27010-1098

Unavailable

39076

LIMITER,STARTER IDLE GEAR

39076-1054

$204.37

92002

BOLT

92002-1664

$5.24

92015

NUT,FLANGED,6MM

92015-1367

$3.69

92015A

NUT,STARTER MOTOR

92015-1476

$4.31

92022

WASHER,9.1X18X0.8

92022-1132

$6.22

92048

RACE,ONEWAY CLUTCH

92048-1095

$85.37

92055

RING-O,64MM

92055-1086

$10.00

92055A

RING-O,42.8MM

92055-1313

$8.66

92055B

RING-O,4.5X2.0

92055-1370

$4.69

92055C

RING-O,STARTER MOTOR

92055-1381

$9.91

92057

CHAIN,STARTER,KEC29H,64L

92057-1196

$51.39

92150

BOLT,STARTER MOTOR

92150-1138

$9.57
