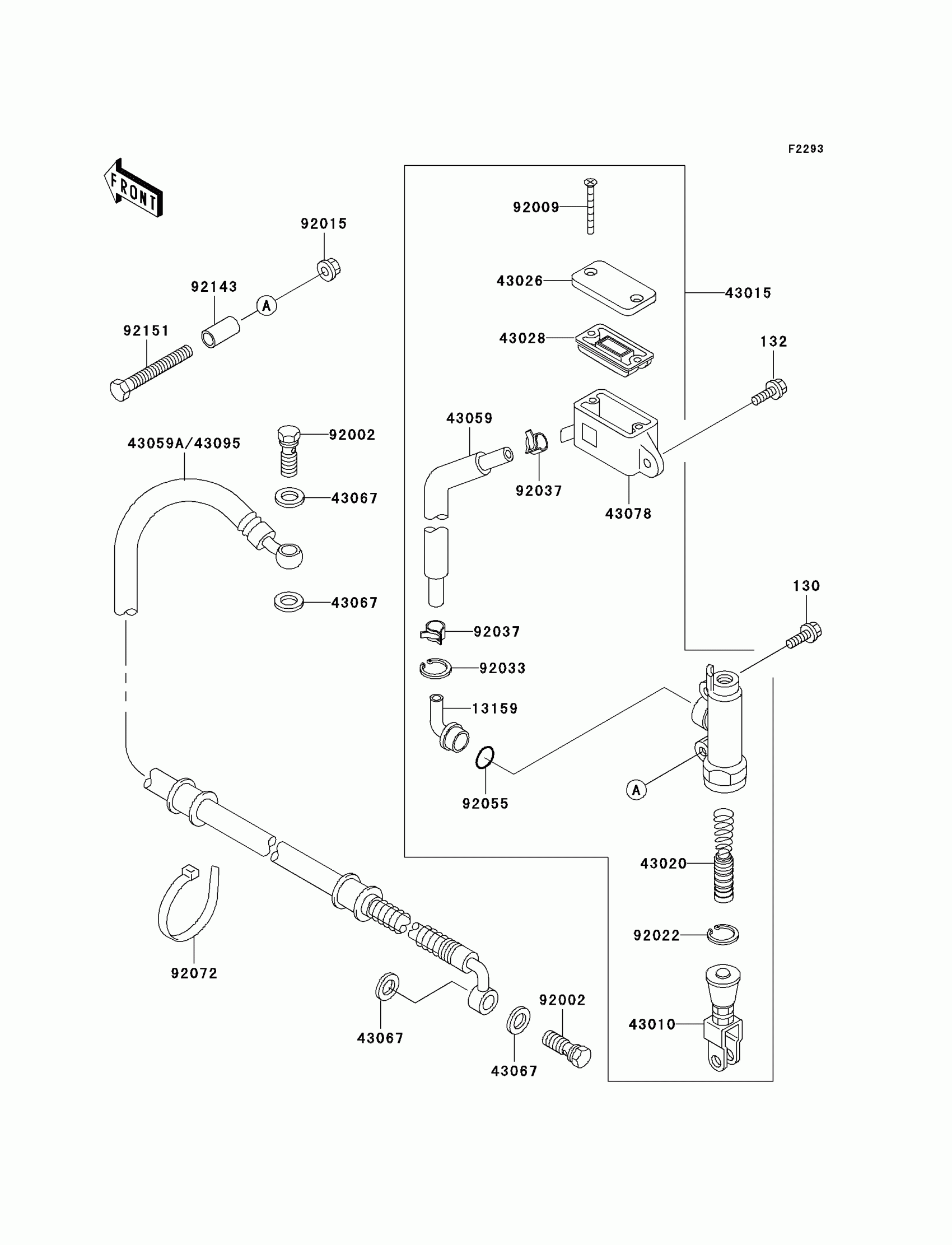

Kawasaki Lakota Sport Rear Master Cylinder Diagram

Description

Price

130

BOLT-FLANGED,8X14

130S0814

Unavailable

132

BOLT-FLANGED-SMALL

132G0614

Unavailable

13159

CONNECTOR,RR MASTER CYLINDER

13159-1052

$13.39

43010

ROD-ASSY-BRAKE,RR

43010-1060

$71.93

43015

CYLINDER-ASSY-MASTER,RR

43015-1326

$422.29

43020

PISTON-COMP-BRAKE

43020-1063

$58.51

43026

CAP-BRAKE

43026-1022

$52.90

43028

DIAPHRAGM

43028-1061

$12.27

43059

HOSE-BRAKE,RR MASTER CYLINDER

43059-1369

$38.47

43067

WASHER,10.5X15X1.5

43067-001

$1.57

43078

RESERVOIR

43078-1078

$34.54

43095

HOSE-BRAKE,RR

43095-1226

Unavailable

92002

BOLT,OIL,L=23

92002-1888

$4.15

92009

SCREW,5MM

92009-1409

$5.12

92015

NUT,8MM

92015-1432

$4.93

92022

WASHER,CIRCRIP

92022-1601

Unavailable

92033

RING-SNAP,20.5MM

92033-1186

$3.78

92037

CLAMP,BRAKE HOSE

92037-1547

$11.81

92055

RING-O,MASTER CYLINDER

92055-1251

Unavailable

92072

BAND,L=188

92072-1239

$1.30

92143

COLLAR,8.8X12X22.5

92143-1163

$7.56

92151

BOLT,8X55

92151-1578

Unavailable
