Description

Price

14024

COVER,REAR FENDER,C.BLUE

14024-1283-AY

$32.51

35011A

STAY,REAR FENDER,RR,SILVER

35011-1698-5A

$46.84

35019

FLAP,REAR FENDER,F.BLACK

35019-1321-6Z

$16.87

35023

FENDER-REAR,C.BLUE

35023-1392-AY

$158.07

35063

STAY,REAR FENDER,FR

35063-1170

$51.27

92009

SCREW,6X14

92009-1288

$3.92

92009A

SCREW,6X25

92009-1465

$3.92

92009B

SCREW,6X16

92009-1621

Unavailable

92015

NUT,FLANGED,6MM,BLACK

92015-1233

$5.52

92015A

NUT,LOCK,FLANGED,6MM

92015-1339

$1.35

92015B

NUT,LOCK,FLANGED,6MM

92015-1675

$4.31

92022

WASHER,6.5X20X1.6

92022-1804

$1.40

92027

COLLAR,L=5.1

92027-1260

$6.22

92027A

COLLAR

92027-1767

$5.52

92072

BAND,L=123

92072-030

$5.00

92072A

BAND,L=150

92072-1203

$14.23

92072B

BAND

92072-1215

$39.63

92074

PLUG,11X3.2

92074-038

$7.22

92075

DAMPER,6X10X15

92075-1808

$1.39

92075A

DAMPER

92075-1861

$10.35

92075B

DAMPER

92075-1882

$8.10

92160

DAMPER

92160-1011

$4.11

92160A

DAMPER

92160-1017

$5.78

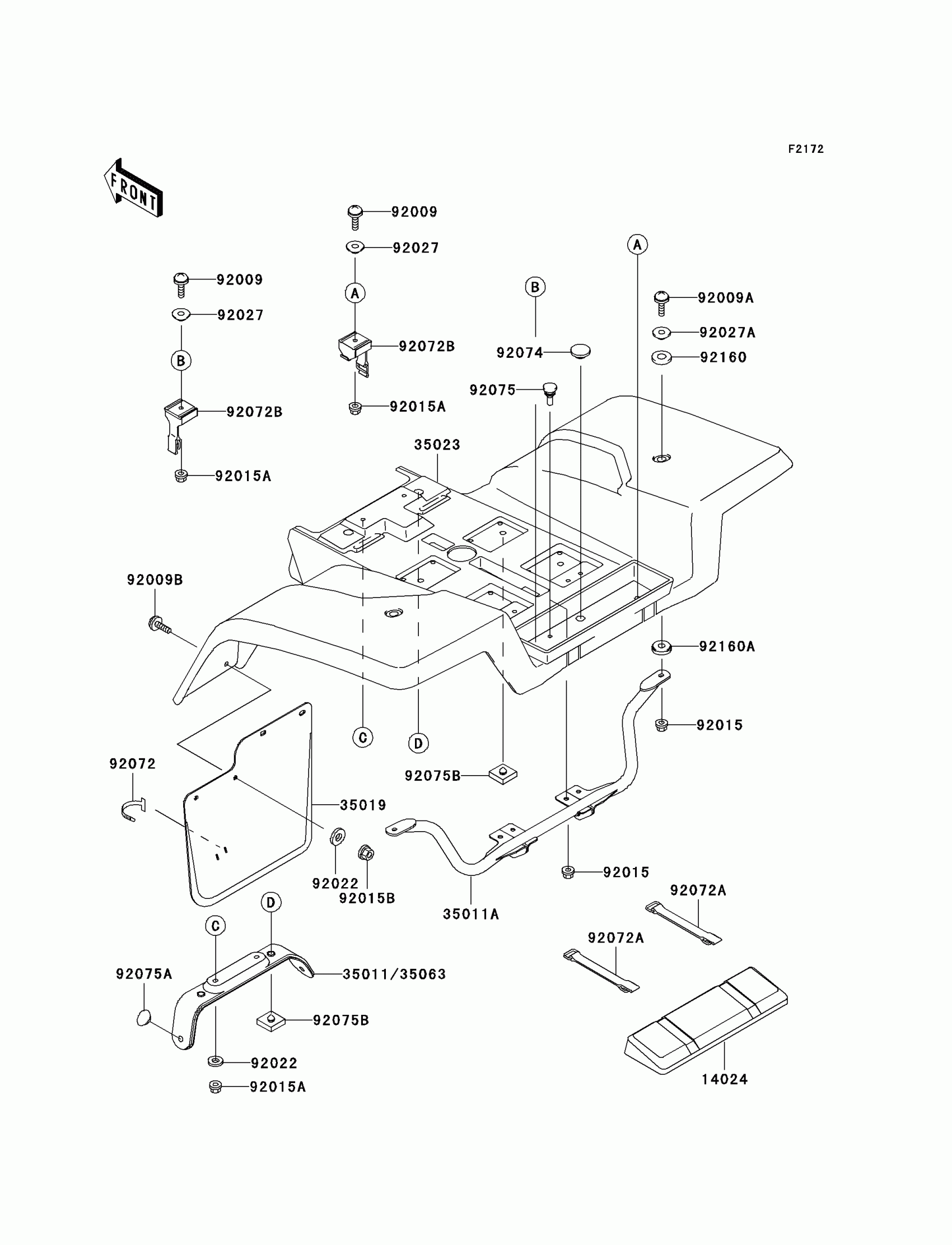

Kawasaki Lakota Sport Rear Fender(s) Diagram

COVER,REAR FENDER,C.BLUE

STAY,REAR FENDER,RR,SILVER

FLAP,REAR FENDER,F.BLACK

FENDER-REAR,C.BLUE

STAY,REAR FENDER,FR

SCREW,6X14

SCREW,6X25

SCREW,6X16

NUT,FLANGED,6MM,BLACK

NUT,LOCK,FLANGED,6MM

NUT,LOCK,FLANGED,6MM

WASHER,6.5X20X1.6

COLLAR,L=5.1

COLLAR

BAND,L=123

BAND,L=150

BAND

PLUG,11X3.2

DAMPER,6X10X15

DAMPER

DAMPER

DAMPER

DAMPER
