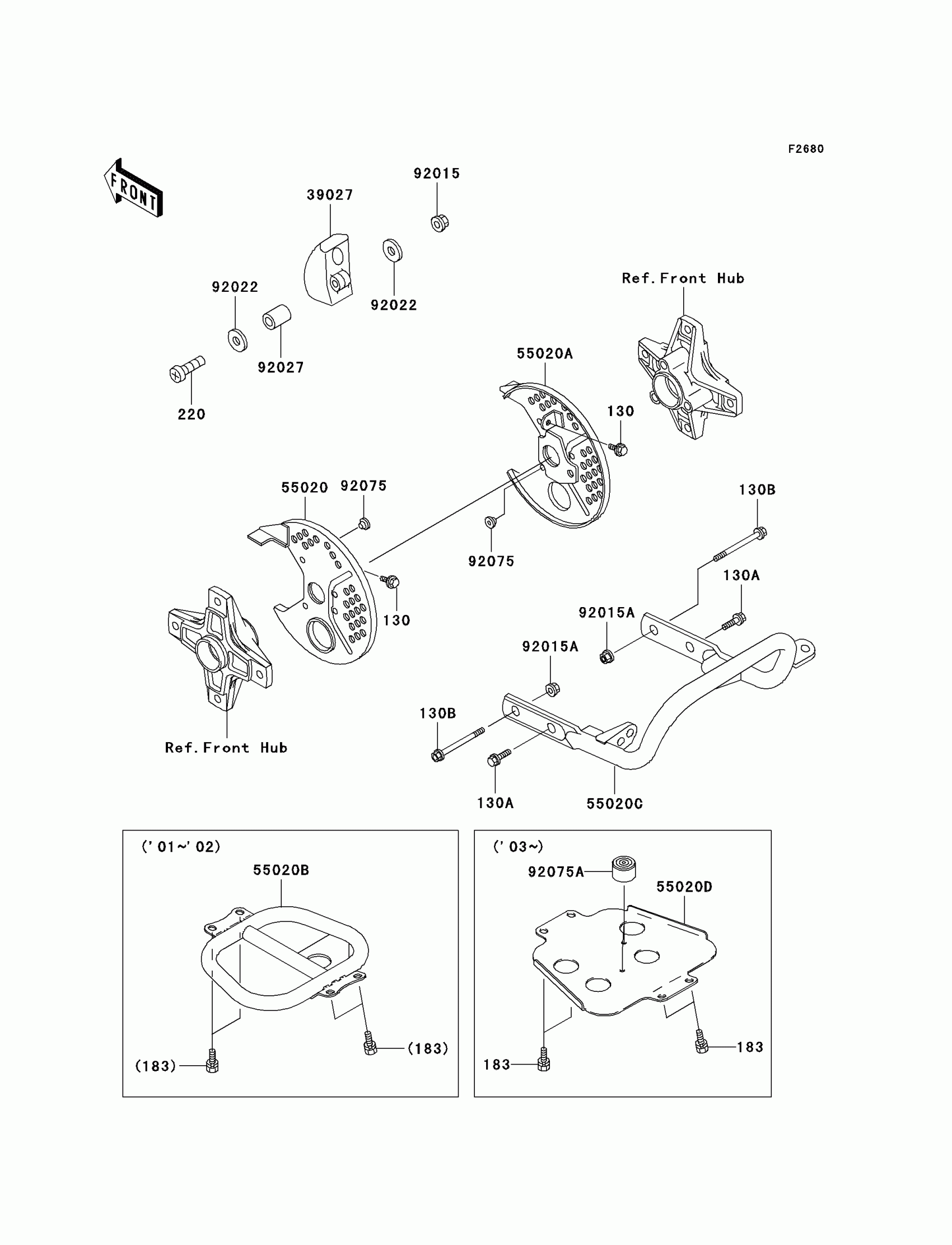

Kawasaki Lakota Sport Guard(s) Diagram

Description

Price

130

BOLT-FLANGED,6X10

130B0610

Unavailable

130A

BOLT-FLANGED,8X20

130G0820

Unavailable

130B

BOLT-FLANGED

130Z0865

Unavailable

183

BOLT-UPSET-WS-SMALL

183J0814

Unavailable

220

SCREW-PAN HEAD,6X30

220C0630

$1.41

39027

BUMPER-FRONT

39027-1051

$21.19

55020

GUARD,FRONT HUB,INNER,LH

55020-1223

$47.05

55020A

GUARD,FRONT HUB,INNER,RH

55020-1224

$47.05

55020C

GUARD,RR,SILVER

55020-1704-5A

$40.71

55020D

GUARD,ENGINE,SILVER NO.40

55020-1798-5A

$52.04

92015

NUT,FLANGED,6MM,BLACK

92015-1233

$4.18

92015A

NUT,8MM

92015-1432

$4.93

92022

WASHER,7X16X1.2

92022-1344

$2.99

92027

COLLAR,6.8X10X20

92027-1856

$4.71

92075

DAMPER,INNER

92075-1822

$4.61

92075A

DAMPER

92075-1896

$8.20
