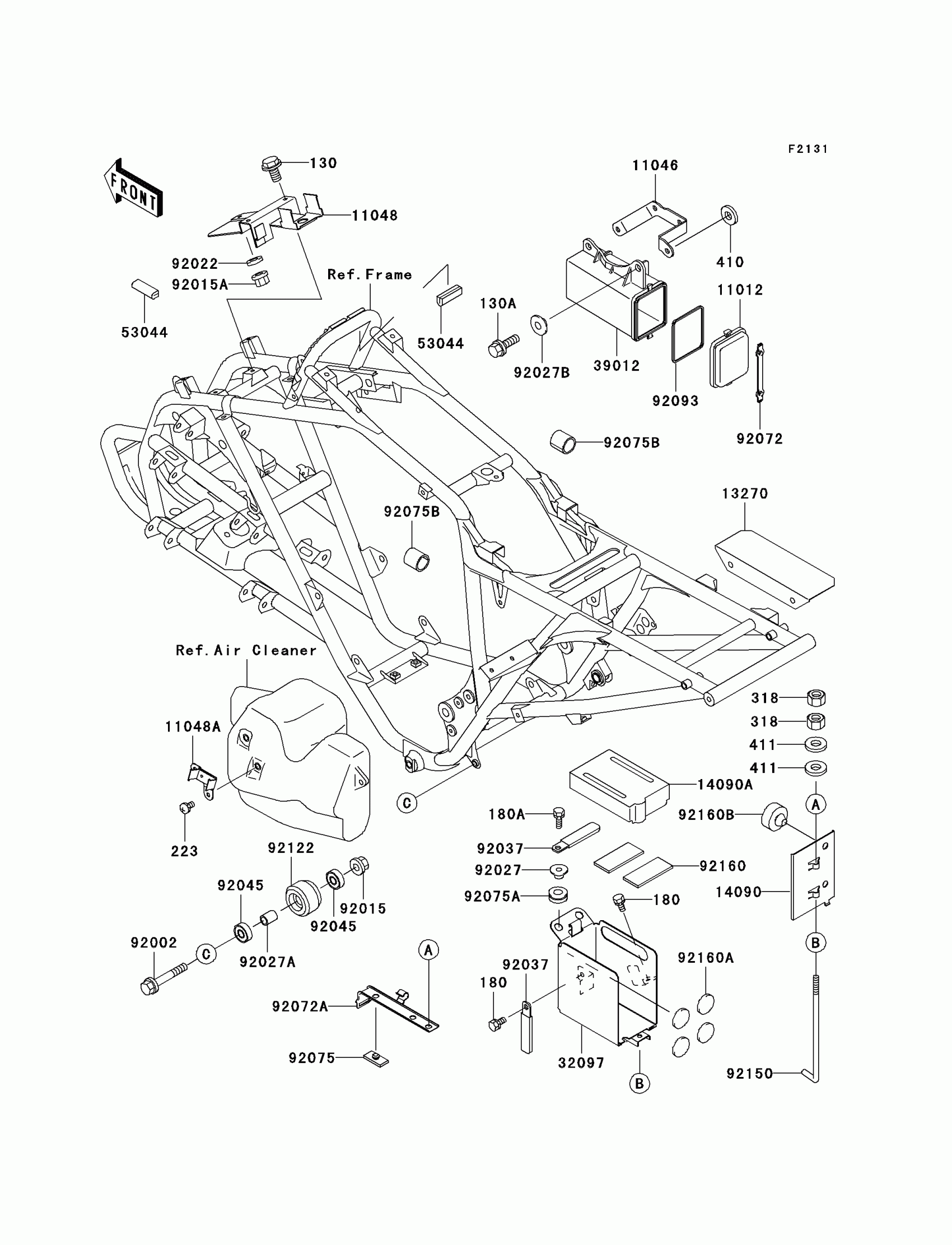

Kawasaki Lakota Sport Frame Fittings Diagram

#

Description
Price

130

BOLT-FLANGED,6X10

130B0610

Unavailable

130A

BOLT-FLANGED,8X20

130G0820

Unavailable

180

BOLT-UPSET-WS

180D0612

Unavailable

180A

BOLT-UPSET-WS

180D0620

Unavailable

223

SCREW-PAN-WS-CROS

223C0610

$3.14

318

NUT-HEX-SMALL

318J0800

Unavailable

410

WASHER PLAIN 8MM

410B0800

Unavailable

411

WASHER PLAIN

411F0800

Unavailable

11012

CAP,TOOL CASE

11012-1606

$10.83

11046

BRACKET,STORAGE CASE

11046-1911

$24.47

11048

BRACKET,ELECTRIC,BLACK

11048-1771-10

Unavailable

11048A

BRACKET,AIR FILTER

11048-1772

Unavailable

13270

PLATE,MUFFLER

13270-1346

$9.73

14090

COVER,BATTERY

14090-1501

$12.34

14090A

COVER

14090-1573

Unavailable

32097

CASE-BATTERY

32097-1155

Unavailable

39012

CASE-STORAGE

39012-1055

$31.12

53044

TRIM,L=50

53044-1185

$4.66

92002

BOLT,FLANGED,8X52

92002-1857

$4.42

92015

NUT,8MM

92015-1432

$4.93

92015A

NUT,LOCK,FLANGED,6MM

92015-1675

$3.29

92022

WASHER,7X16X1.2

92022-1344

$2.99

92027

COLLAR

92027-1045

$4.18

92027A

COLLAR

92027-1081

$9.29

92027B

COLLAR

92027-1354

$3.81

92037

CLAMP

92037-1679

$4.18

92045

BEARING-BALL,608DMC3 AV2S

92045-1227

Unavailable

92072

BAND,TOOL CASE CAP

92072-1226

$4.67

92072A

BAND,BATTERY

92072-1315

Unavailable

92075

DAMPER

92075-1054

$3.81

92075A

DAMPER,FAN

92075-1167

Unavailable

92075B

DAMPER,25X31X30

92075-1906

$5.71

92093

SEAL,TOOL CASE CAP

92093-1247

$4.66

92122

ROLLER,CHAIN GUIDE

92122-1102

$81.58

92150

BOLT,BATTERY

92150-1293

$8.10

92160

DAMPER

92160-1073

$6.08

92160A

DAMPER

92160-1472

$5.61

92160B

DAMPER

92160-3766

$2.03
