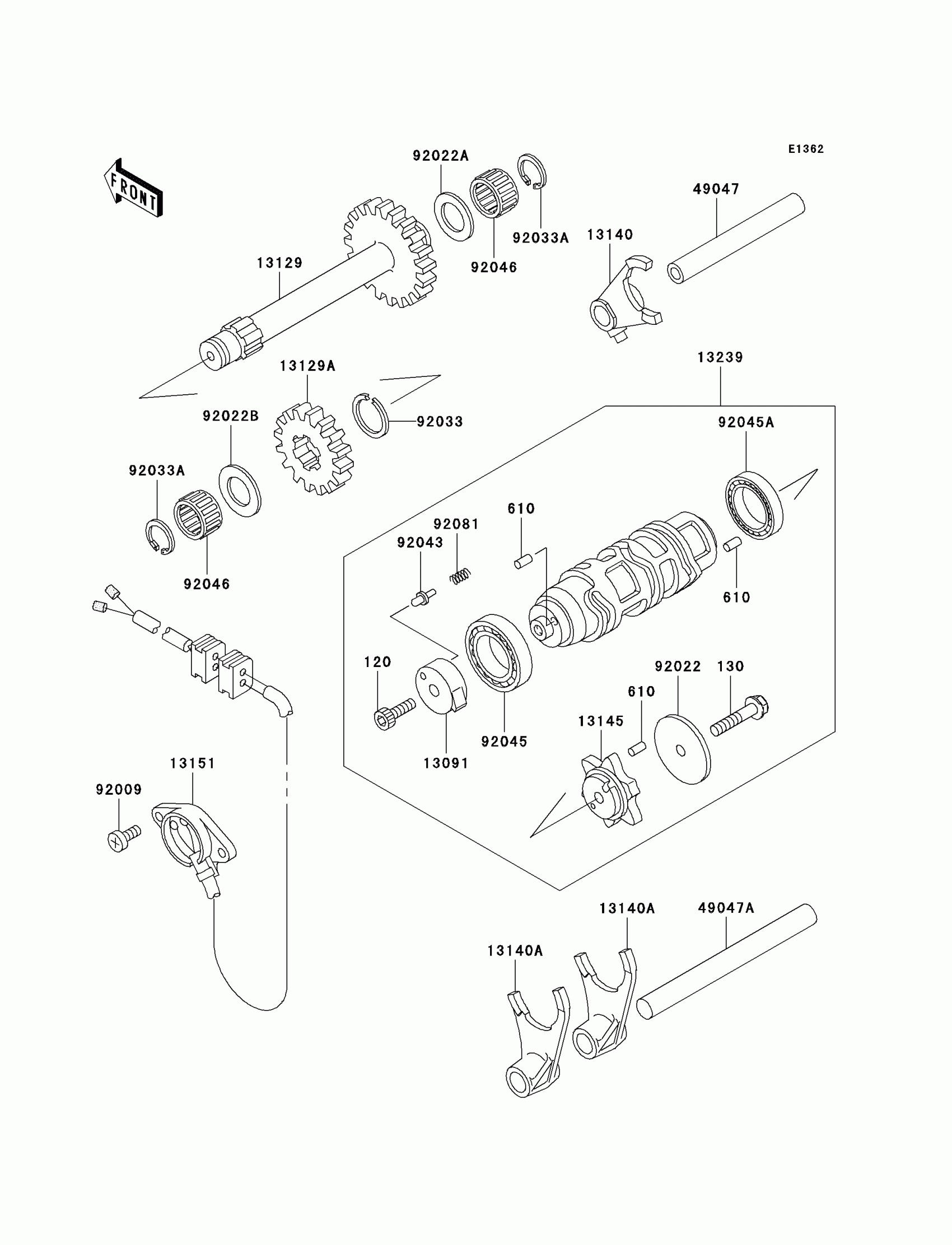

Kawasaki Lakota Sport Gear Change Drum/Shift Fork(s) Diagram

Description

Price

120

BOLT-SOCKET,6X20

120Q0620

$1.20

130

BOLT-FLANGED,6X30

130G0630

$1.42

610

ROLLER,4X10

610A0410

$4.31

13091

HOLDER,NEUTRAL SWITCH

13091-1443

$31.84

13129

GEAR-REVERSE

13129-1705

$212.46

13129A

GEAR-REVERSE,20T

13129-1706

$72.80

13140

FORK-SHIFT

13140-1134

$109.79

13140A

FORK-SHIFT

13140-1135

$109.79

13145

CAM-CHANGE DRUM

13145-1057

$49.28

13151

SWITCH-COMP

13151-1097

$72.36

13239

DRUM-ASSY-CHANGE

13239-1154

$203.03

49047

ROD-SHIFT,L=93.7

49047-1003

Unavailable

49047A

ROD-SHIFT

49047-1062

$29.43

92009

SCREW,5X14

92009-1341

$4.18

92022

WASHER,6.2X38X1.2

92022-1500

$11.51

92022A

WASHER,17.3X28X1

92022-255

$8.58

92022B

WASHER,17.3X30X1.4

92022-270

$9.84

92033

RING-SNAP,20X25.5X1.2

92033-025

$4.96

92033A

RING-SNAP

92033-032

$4.96

92043

92043-1287

$8.76

92045

BEARING-BALL,6805

92045-1122

$39.17

92045A

BEARING-BALL,6905X1

92045-1150

$33.28

92046

BEARING-NEEDLE

92046-1184

$21.25

92081

SPRING

92081-1763

$4.34

Kawasaki Lakota Sport Gear Change Drum/Shift Fork(s) Diagram

BOLT-SOCKET,6X20

BOLT-FLANGED,6X30

ROLLER,4X10

HOLDER,NEUTRAL SWITCH

GEAR-REVERSE

GEAR-REVERSE,20T

FORK-SHIFT

FORK-SHIFT

CAM-CHANGE DRUM

SWITCH-COMP

DRUM-ASSY-CHANGE

ROD-SHIFT,L=93.7

ROD-SHIFT

SCREW,5X14

WASHER,6.2X38X1.2

WASHER,17.3X28X1

WASHER,17.3X30X1.4

RING-SNAP,20X25.5X1.2

RING-SNAP

PIN

BEARING-BALL,6805

BEARING-BALL,6905X1

BEARING-NEEDLE

SPRING
