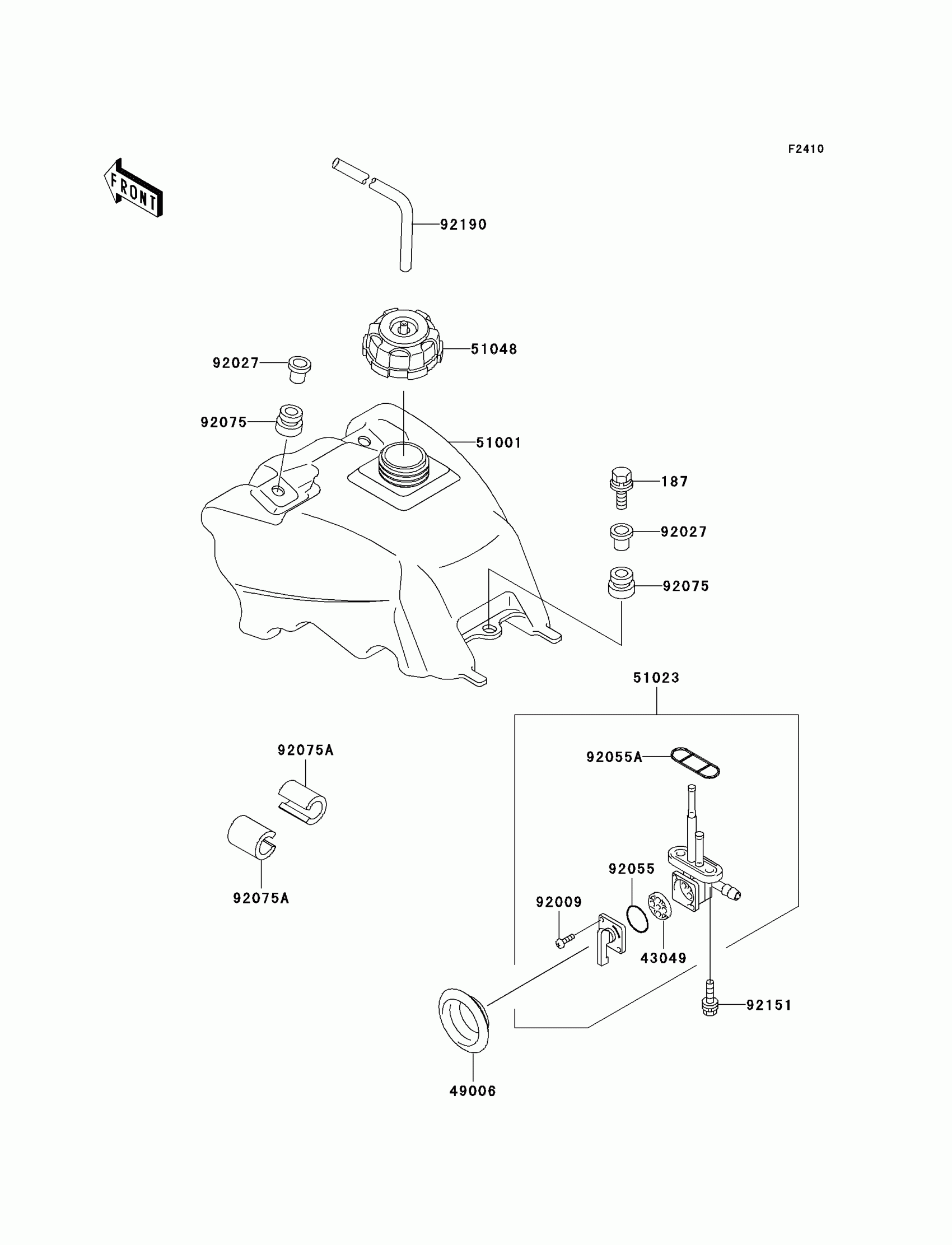

Kawasaki Lakota Sport Fuel Tank Diagram

Description

Price

187

BOLT-UPSET-WSP

187D0630

Unavailable

43049

PACKING,FUEL TAP LEVER

43049-1017

$5.54

49006

BOOT

49006-1192

$20.69

51001

TANK-COMP-FUEL

51001-1482

Unavailable

51023

TAP-ASSY,FUEL

51023-1146

Unavailable

51048

CAP-ASSY-TANK,FUEL

51048-1133

$57.18

92009

SCREW,3X5

92009-1123

$0.54

92027

COLLAR,L=16.1

92027-1847

$4.67

92055

RING-O,FUEL TAP LEVER

92055-1111

$3.81

92055A

RING-O,FUEL TAP PACKING

92055-1348

$5.61

92075

DAMPER

92075-1787

$4.93

92075A

DAMPER,FUEL TANK

92075-1835

Unavailable

92151

BOLT,6X14

92151-1198

$3.92

92190

TUBE,4.7X9.5X350

92190-1022

Unavailable
