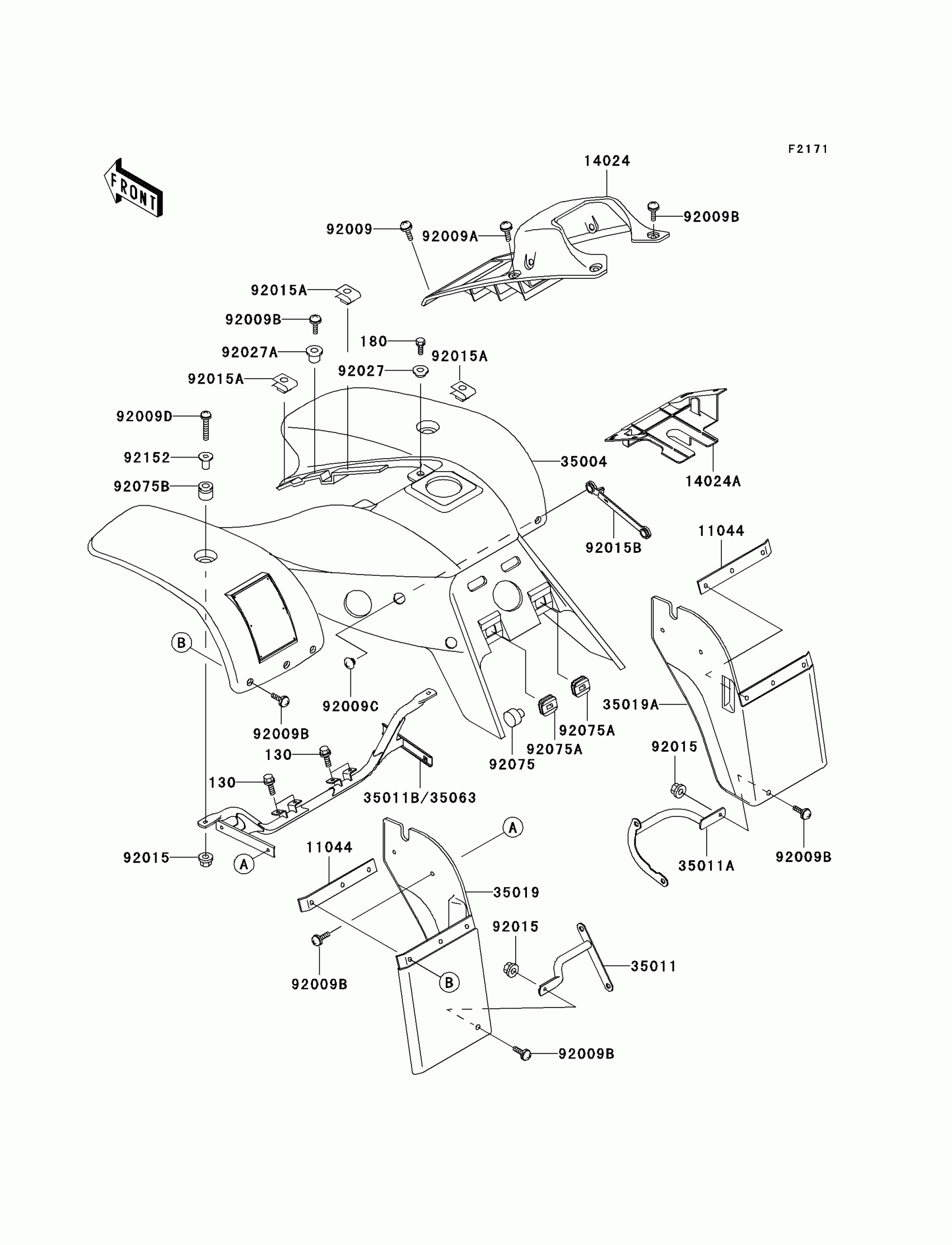

Kawasaki Lakota Sport Front Fender(s) Diagram
#
Description
Price
130
BOLT-FLANGED,6X12
130P0612
$3.84
180
BOLT-UPSET-WS,6X35
180D0635
Unavailable
11044
BRACKET,FLAP
11044-1934
$11.40
14024
COVER,FRONT FENDER,C.BLUE
14024-1268-AY
$28.73
14024A
COVER,FRONT FENDER,INNER
14024-1297
$11.30
35004
FENDER-FRONT,C.BLUE
35004-1379-AY
$176.06
35011
STAY,FRONT FLAP,LH,SILVER
35011-1694-5A
$17.71
35011A
STAY,FRONT FLAP,RH,SILVER
35011-1695-5A
$17.71
35019
FLAP,LH
35019-1172
$26.21
35019A
FLAP,RH
35019-1173
$26.21
35063
STAY,FRONT FENDER
35063-1169
$43.93
92009
SCREW,6X18,BLACK
92009-1181
$2.80
92009A
SCREW,6X22,BLACK
92009-1256
$2.78
92009B
SCREW,6X14
92009-1288
$3.92
92009C
SCREW,16MM
92009-1508
Unavailable
92009D
SCREW,6X35
92009-1672
$3.92
92015
NUT,LOCK,FLANGED,6MM
92015-1675
$4.31
92015A
NUT,CLAMP,6MM
92015-1678
$5.52
92015B
NUT
92015-1701
$12.48
92027
COLLAR,L=5.6
92027-1933
$5.78
92027A
COLLAR,L=4.7
92027-1964
$7.34
92075
DAMPER,DUAL SEAT
92075-023
$4.92
92075A
DAMPER
92075-1834
$9.18
92075B
DAMPER
92075-1936
$5.47
92152
COLLAR,L=19.6
92152-1292
$8.66
