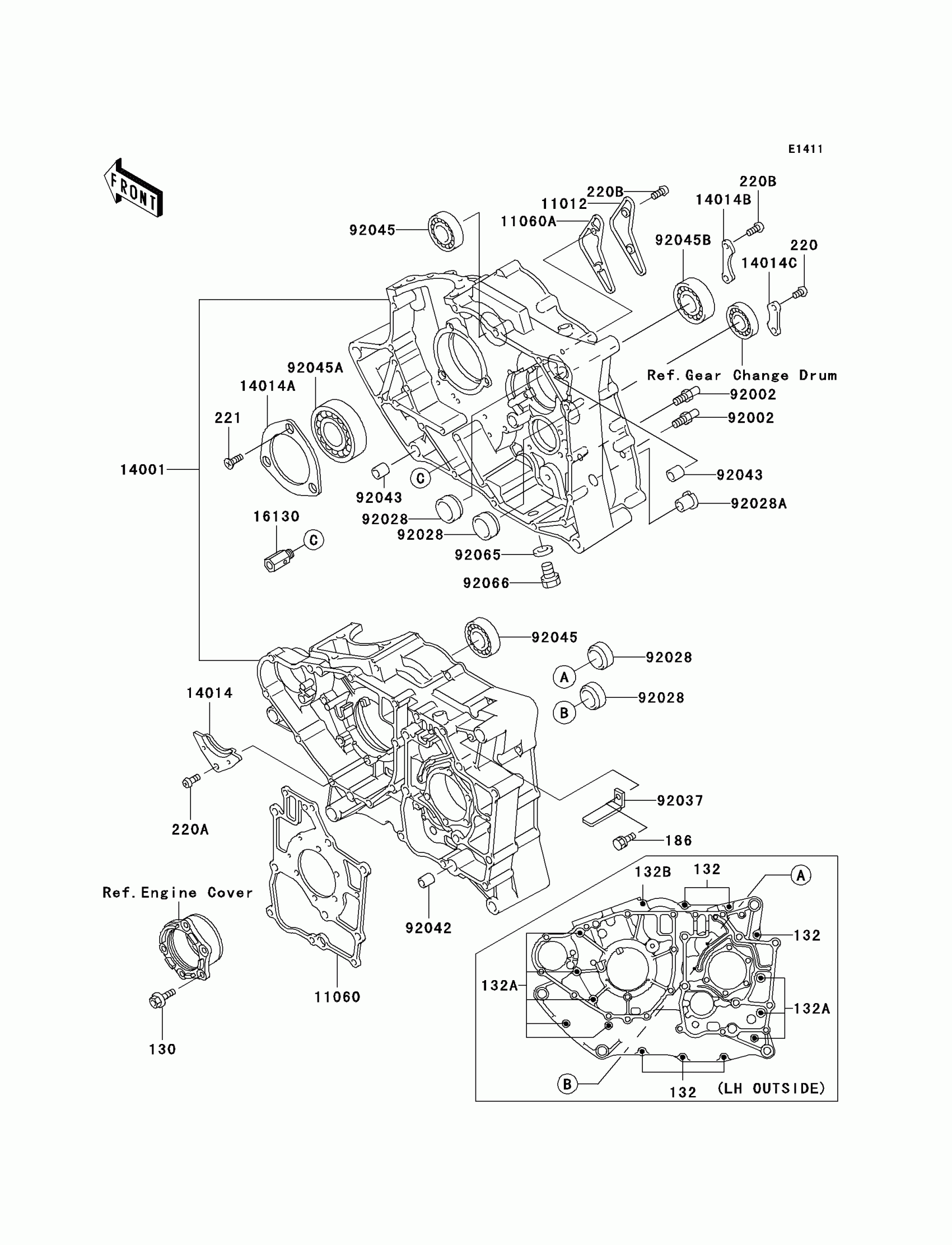

Kawasaki Lakota Sport Crankcase Diagram
#
Description
Price
130
BOLT-FLANGED,6X20
130P0620
$1.70
132
BOLT-FLANGED-SMALL,6X35
132Y0635
$3.84
132A
BOLT-FLANGED-SMALL
132Y0665
$4.44
132B
BOLT-FLANGED-SMALL
132Y0685
$5.82
186
BOLT-UPSET-WP
186D0614
Unavailable
220
SCREW PAN HEAD 6X10
220B0610
$3.14
220A
SCREW PAN HEAD 6X12
220B0612
Unavailable
220B
SCREW-PAN-CROS,6X14
220B0614
$1.48
221
SCREW-CSK-CROS,6X16
221B0616
$0.59
11012
CAP
11012-1443
$9.80
11060
GASKET,GEAR CASE
11060-1653
$13.93
11060A
GASKET,OIL LINE CAP
11060-1654
$4.52
14001
SET-CRANKCASE
14001-5324
$925.70
14014
PLATE,POSITIONING
14014-035
$5.24
14014A
PLATE-POSITION,CRANK BEARING
14014-1004
$11.61
14014B
PLATE-POSITION
14014-1069
$6.16
14014C
PLATE-POSITION,CHANGE DRUM
14014-1070
$7.22
16130
VALVE-ASSY-RELIEF
16130-1001
Unavailable
92002
BOLT,SOCKET,4X8
92002-1408
$6.61
92028
BUSHING,23X30X13
92028-132
$38.06
92028A
BUSHING
92028-1386
$17.40
92037
CLAMP,HARNESS
92037-1316
$2.61
92042
PIN,DOWEL,12X14
92042-031
$6.57
92043
PIN,11.5X14X14
92043-1279
$5.00
92045
BEARING-BALL,6004TMB
92045-1118
$23.76
92045A
BEARING-BALL
92045-1172
$48.87
92045B
BEARING-BALL
92045-1173
$40.43
92065
GASKET,12X22X2
92065-097
$0.74
92066
PLUG,OIL DRAIN,12X15
92066-1174
$6.16
