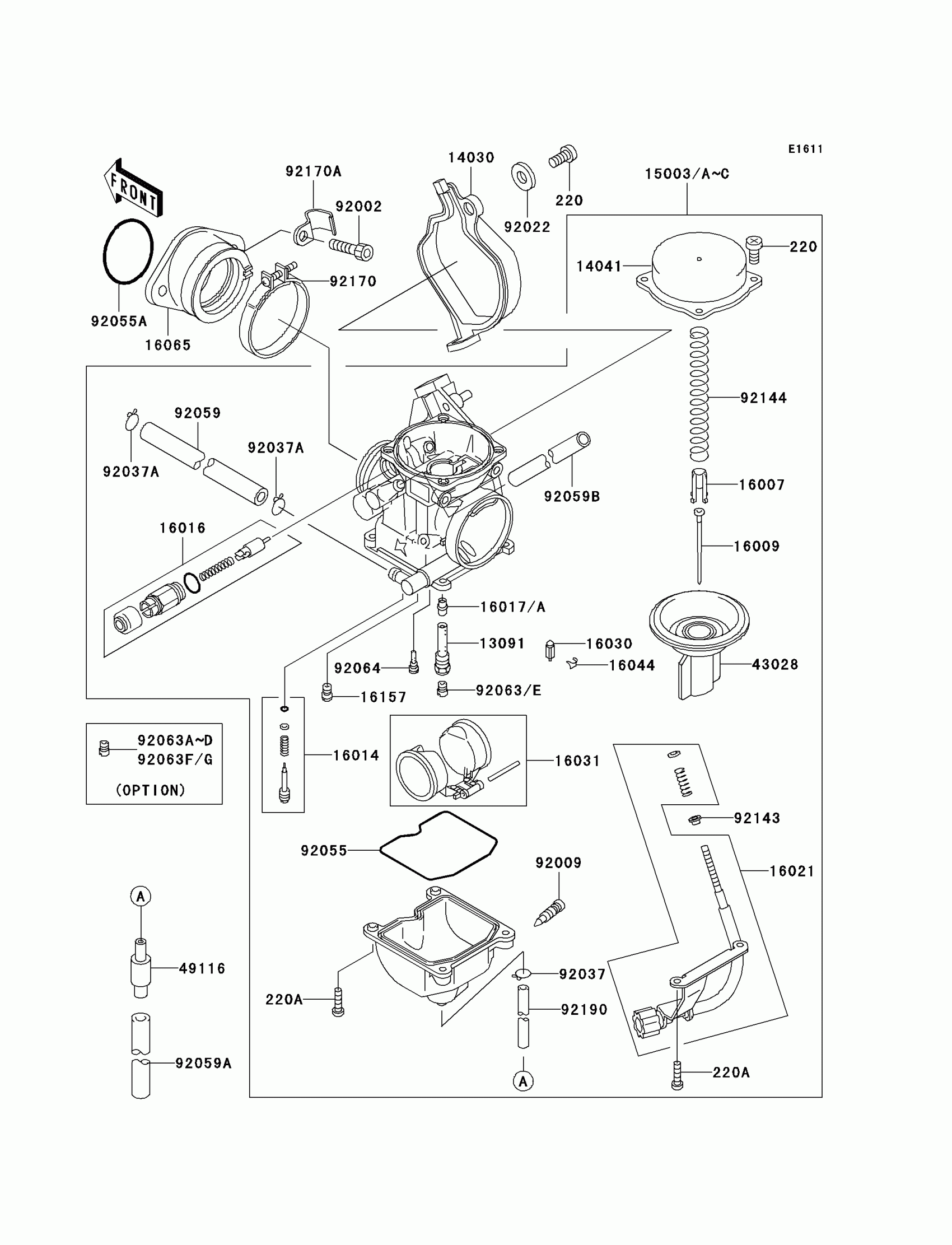

Kawasaki Lakota Sport Carburetor Diagram

#

Description
Price

13091

HOLDER,NEEDLE JET

13091-1914

$31.12

14030

COVER-CARBURETOR

14030-1054

$11.28

14041

TOP-CHAMBER,MIXING,INSIDE

14041-1077

$97.80

16007

SEAT-SPRING,THROTTLE VALVE

16007-1120

$21.24

16009

NEEDLE-JET,N36X

16009-1516

$38.03

16014

SCREW-PILOT AIR

16014-1081

$19.94

16016

PLUNGER,STARTER

16016-1101

$51.56

16021

SCREW-THROTTLE STOP

16021-1196

$133.04

16030

VALVE-FLOAT

16030-1007

$42.48

16031

FLOAT

16031-1077

$47.31

16044

CLAMP,FLOAT VALVE

16044-007

$6.04

16065

HOLDER-CARBURETOR

16065-1301

$34.94

16157

JET-STARTER,#58

16157-1057

$13.39

43028

DIAPHRAGM,VALVE

43028-1080

$204.57

49116

VALVE-ASSY

49116-1126

$16.82

92002

BOLT,6X16

92002-1143

$2.99

92009

SCREW,DRAIN,M6X0.75

92009-1551

$7.54

92022

WASHER,5.2X13X1

92022-1380

$3.29

92037

CLAMP,TUBE

92037-1201

$3.51

92037A

CLAMP,TUBE

92037-1531

$4.18

92055

RING-O,FLOAT CHAMBER

92055-1222

$13.15

92055A

RING-O,38MM

92055-1295

$12.40

92059

TUBE,6.5X11.5X200

92059-1538

$36.81

92059A

TUBE,7X10X100

92059-1736

$3.40

92059B

TUBE,6.5X9.5X320

92059-1861

$16.34

220

SCREW PAN HEAD 4X8

220B0408

Unavailable

220A

SCREW-PAN-CROS,4X14

220D0414

$3.51

92063C

JET-MAIN,#142

92063-1016

$13.39

92063D

JET-MAIN,#145

92063-1017

$10.71

92064

JET-PILOT,#38

92064-1119

$14.36

92143

COLLAR

92143-1589

$3.14

92144

SPRING,DIAPHRAGM VALVE

92144-1745

Unavailable

92170

CLAMP

92170-1438

$6.85

92170A

CLAMP

92170-1552

$4.92

92190

TUBE,4.5X8X330

92190-1557

$14.64

15003B

CARBURETOR-ASSY

15003-1745

Unavailable

15003C

CARBURETOR-ASSY

15003-1746

$739.77

16017

JET-NEEDLE

16017-1335

$52.49

16017A

JET-NEEDLE,#6

16017-1394

$54.52

92063

JET-MAIN,#140

92063-1013

$10.71

92063A

JET-MAIN,#135

92063-1014

$10.71

92063B

JET-MAIN,#138

92063-1015

$10.71

92063E

JET-MAIN,#148

92063-1324

$13.39

92063F

JET-MAIN,#150

92063-1330

$13.39

92063G

JET-MAIN,#152

92063-1331

$14.02
