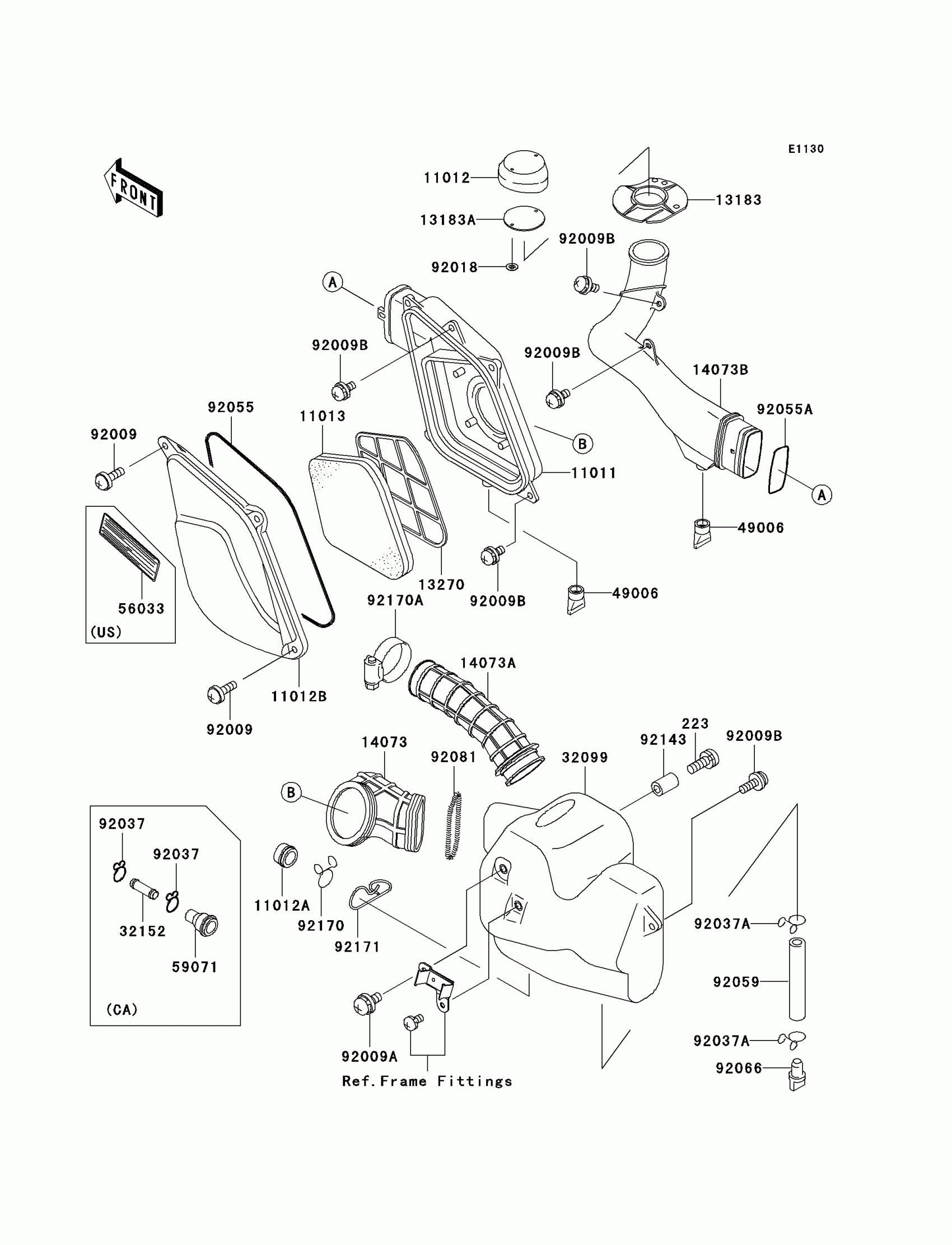

Kawasaki Lakota Sport Air Cleaner Diagram
#
Description
Price
223
SCREW-PAN-WS-CROS
223C0635
$3.84
11011
CASE-AIR FILTER
11011-1442
$80.10
11012
CAP,SNORKL DUCT
11012-1537
$25.39
11012B
CAP,CAR FILTER
11012-1902
Unavailable
11013
ELEMENT-AIR FILTER
11013-1145
$17.04
13183
PLATE,SNORKL DUCT
13183-1019
$23.50
13183A
PLATE,SNORKL CAP
13183-1020
$6.88
13270
PLATE,ELEMENT
13270-1317
$19.34
14073
DUCT,CHAMBER-AIRFILTER
14073-1266
$31.29
14073A
DUCT,AIR FILTER
14073-1611
$34.66
14073B
DUCT,SNORKL
14073-1629
$72.75
32099
CASE,AIR CHAMBER
32099-1155
$93.53
49006
BOOT
49006-1292
$7.77
92009
SCREW,6X18,BLACK
92009-1181
$2.80
92009A
SCREW,6X14
92009-1275
$4.60
92009B
SCREW,6X16
92009-1276
$4.80
92018
NUT,PUSH,3MM
92018-005
$2.76
92037A
CLAMP,TUBE
92037-147
$7.34
92055
RING-O,AIR FILTER CASE
92055-1344
$16.66
92055A
RING-O,57.3X3
92055-1345
$6.45
92059
TUBE,7X10X100
92059-1736
$4.46
92066
PLUG,DRAIN
92066-1211
$8.51
92081
SPRING,DUCT
92081-1638
$9.80
92143
COLLAR
92143-1046
$5.00
92170
CLAMP,TUBE
92170-1445
$4.92
92170A
CLAMP
92170-1674
$11.76
92171
CLAMP
92171-1483
$6.58
11012A
CAP,HEAD
11012-1544
$4.84
32152
PIPE
32152-1567
$5.54
56033
LABEL-MANUAL,MAINTENANCE
56033-1079
$2.70
59071
JOINT
59071-1168
$9.56
92037
CLAMP,12.5MM
92037-1271
$2.79
